Inspection Procedure 15

WARNING: This page is about a different variant/trim than selected.

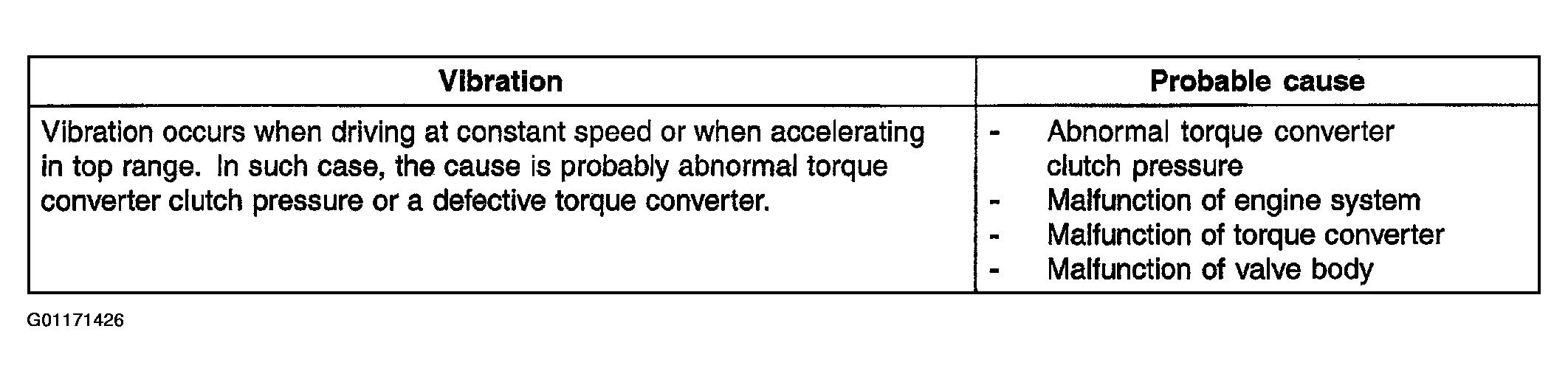

Fig 1: Probable Cause - Vibration
G01171426Courtesy of HYUNDAI MOTOR CO.

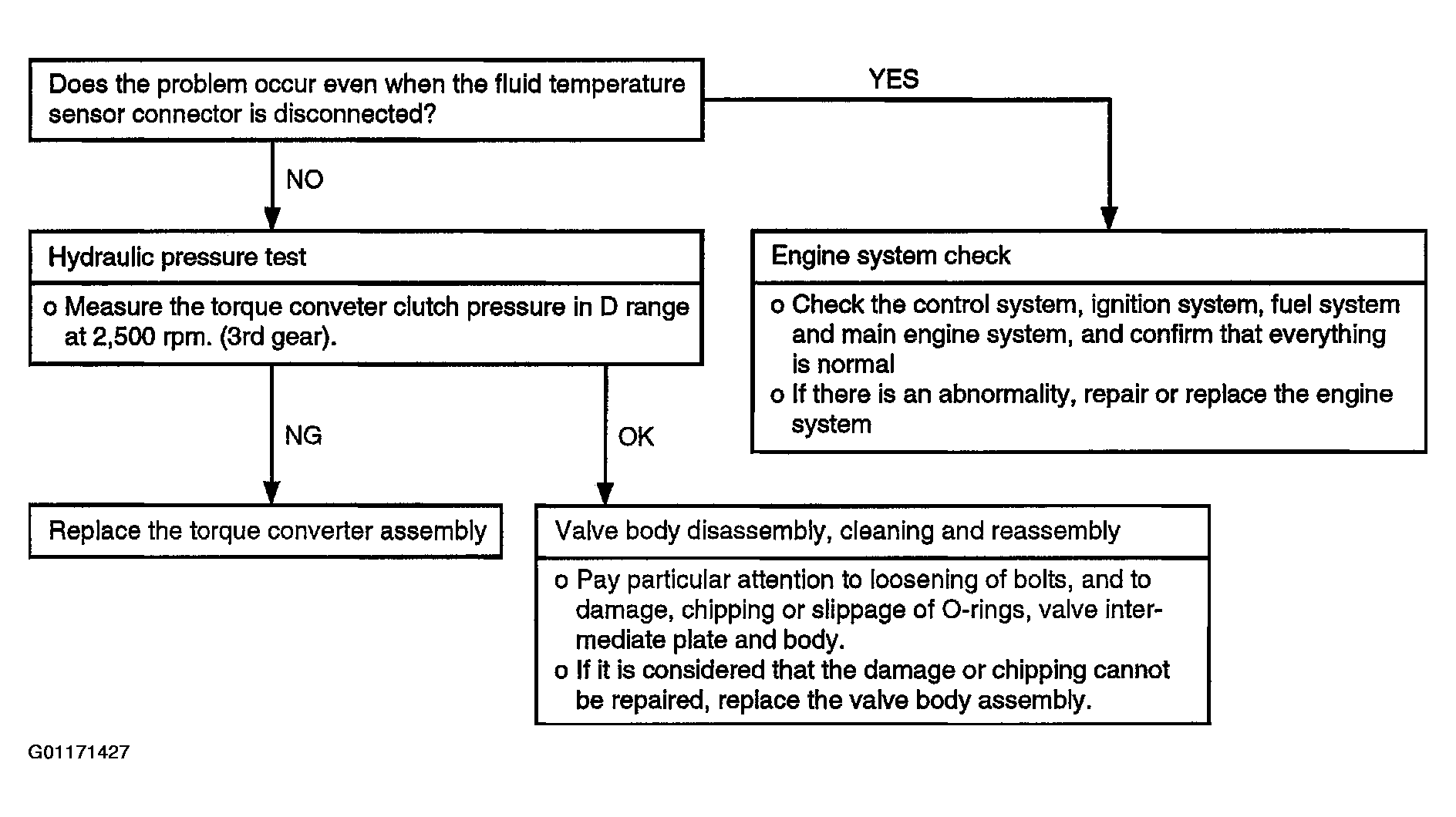

Fig 2: Troubleshooting Flow - Vibration
G01171427Courtesy of HYUNDAI MOTOR CO.
