Inspection Procedure 11

WARNING: This page is about a different variant/trim than selected.

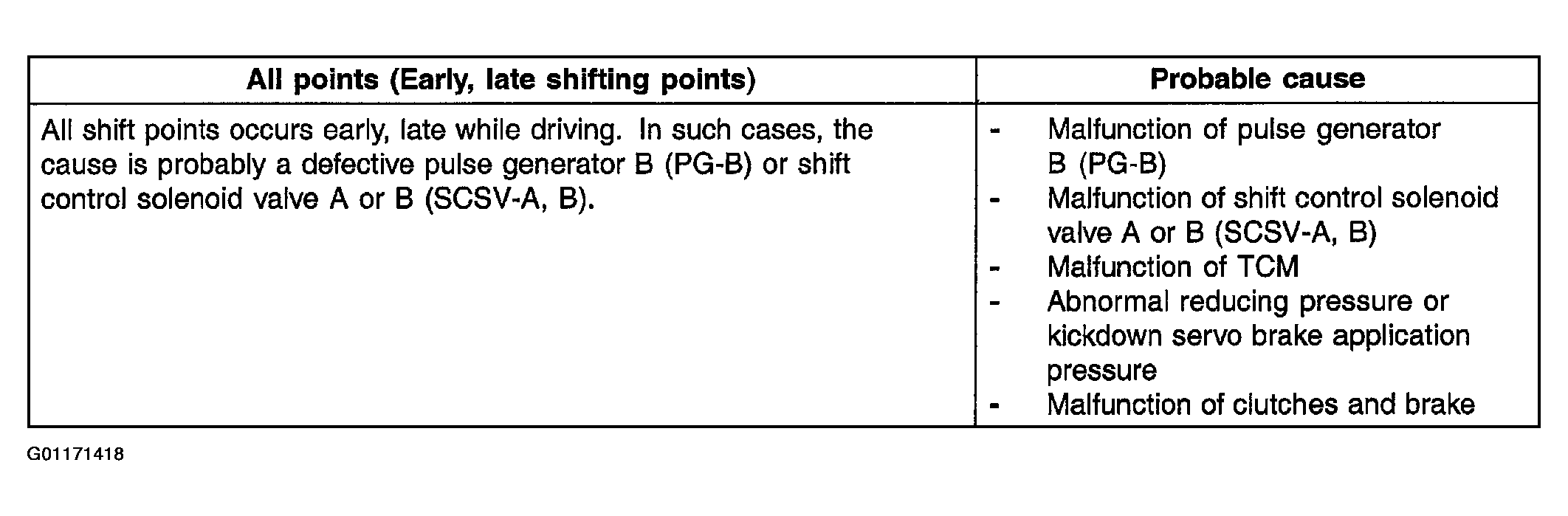

Fig 1: Probable Cause - All Point (Early, Late Shifting Points)
G01171418Courtesy of HYUNDAI MOTOR CO.

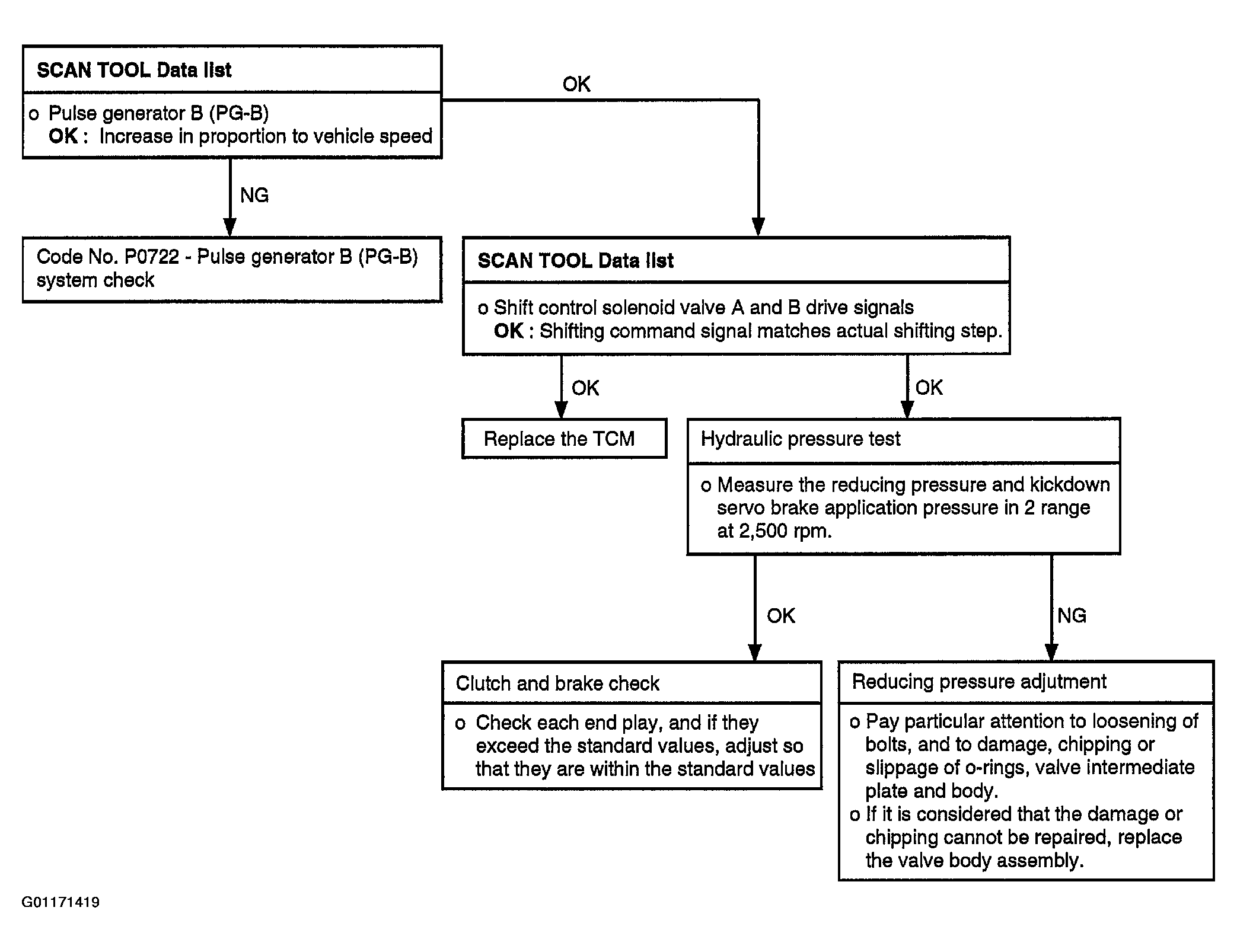

Fig 2: Troubleshooting Flow - All Point (Early, Late Shifting Points)
G01171419Courtesy of HYUNDAI MOTOR CO.
