Inspection Procedure 10

WARNING: This page is about a different variant/trim than selected.

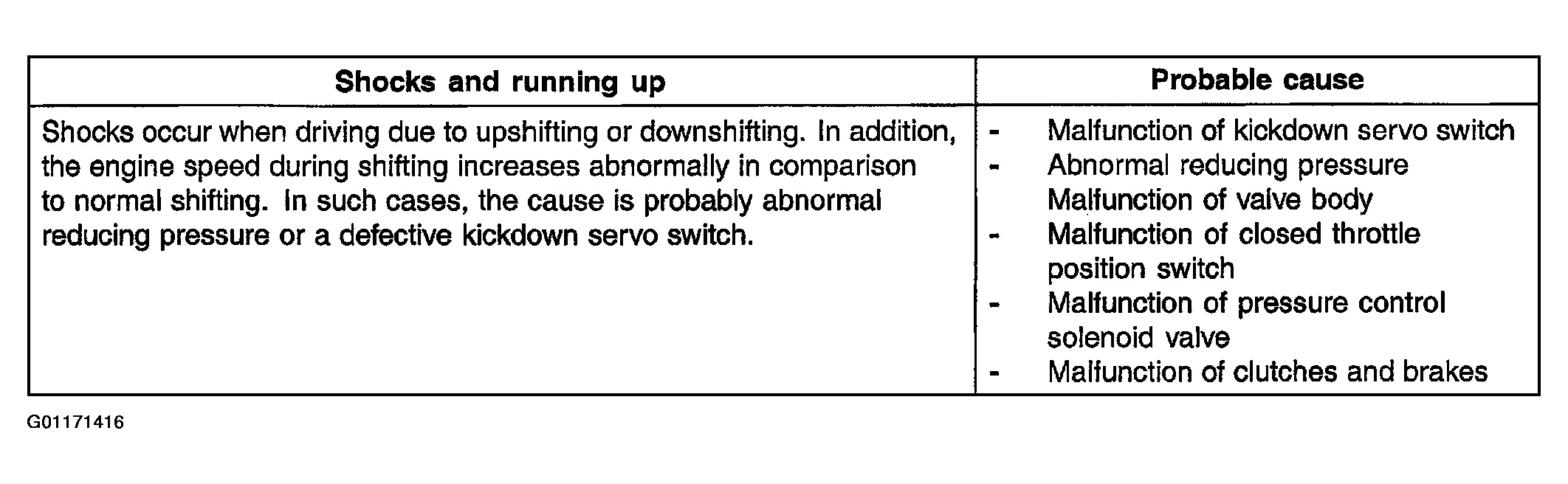

Fig 1: Probable Cause - Shocks And Running Up
G01171416Courtesy of HYUNDAI MOTOR CO.

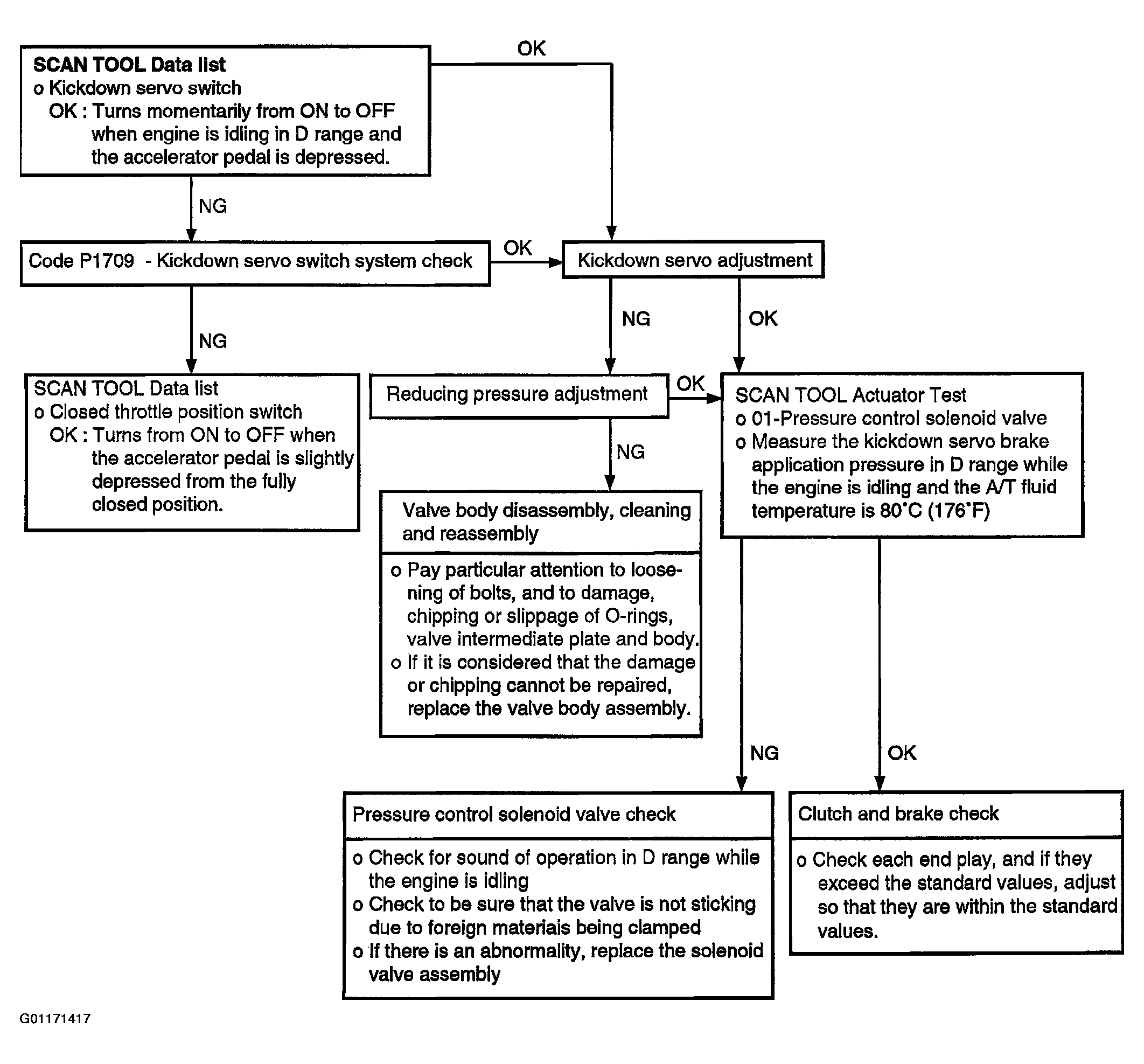

Fig 2: Troubleshooting Flow - Shocks And Running Up
G01171417Courtesy of HYUNDAI MOTOR CO.
