Inspection Chart For Diagnosis Codes

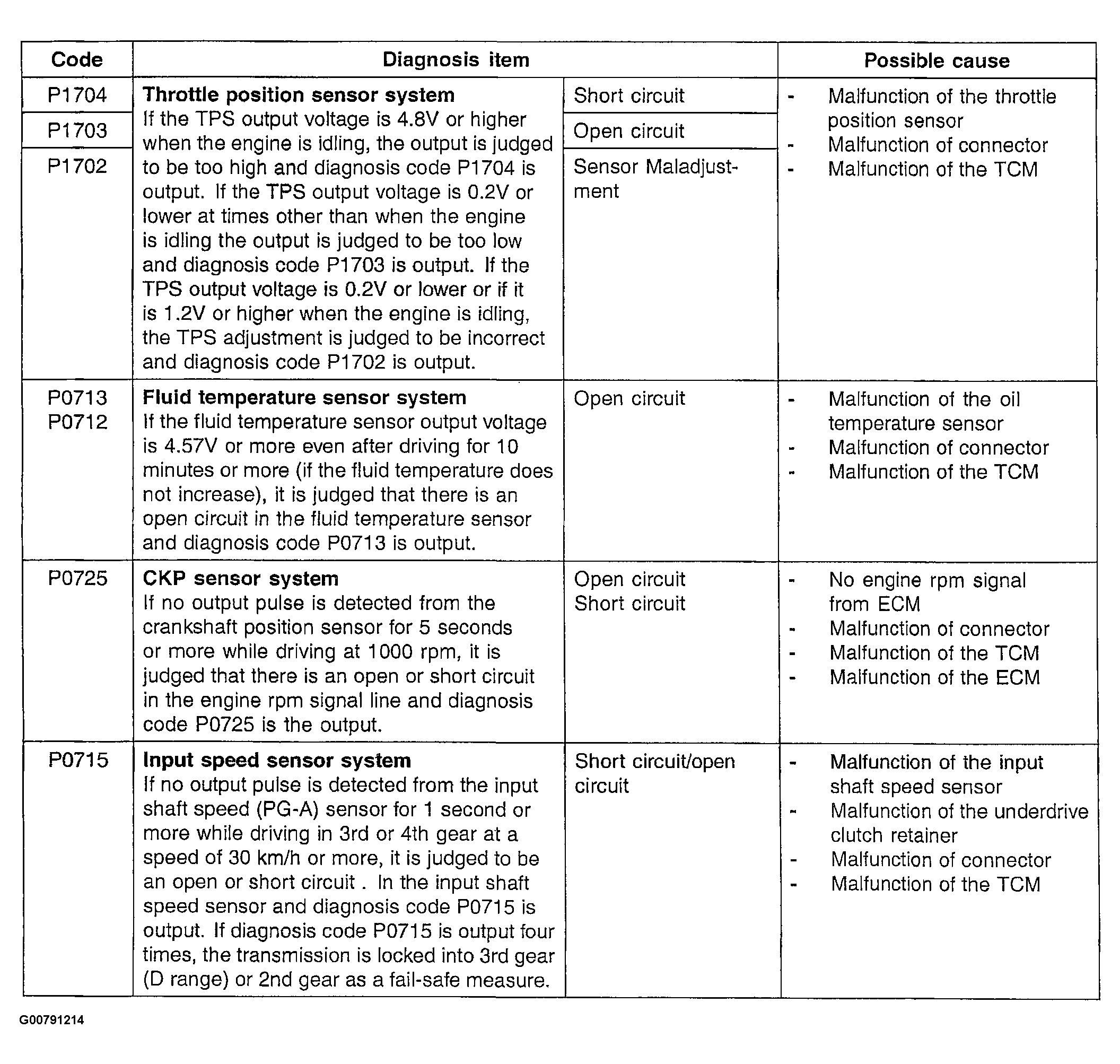

Fig 1: Inspection Chart For Diagnosis Codes Table (1 Of 4)

Courtesy of HYUNDAI MOTOR CO.

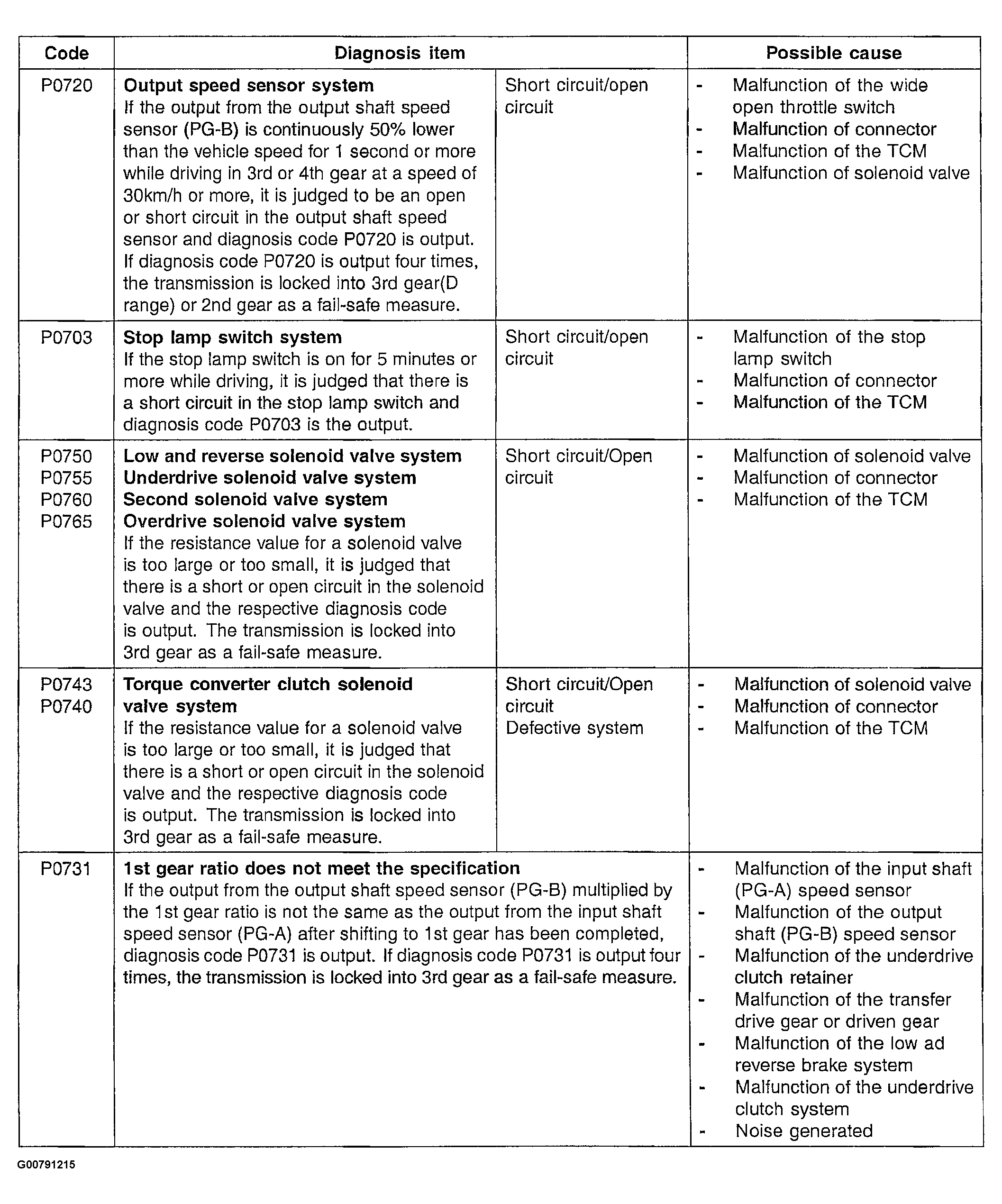

Fig 2: Inspection Chart For Diagnosis Codes Table (2 Of 4)

Courtesy of HYUNDAI MOTOR CO.

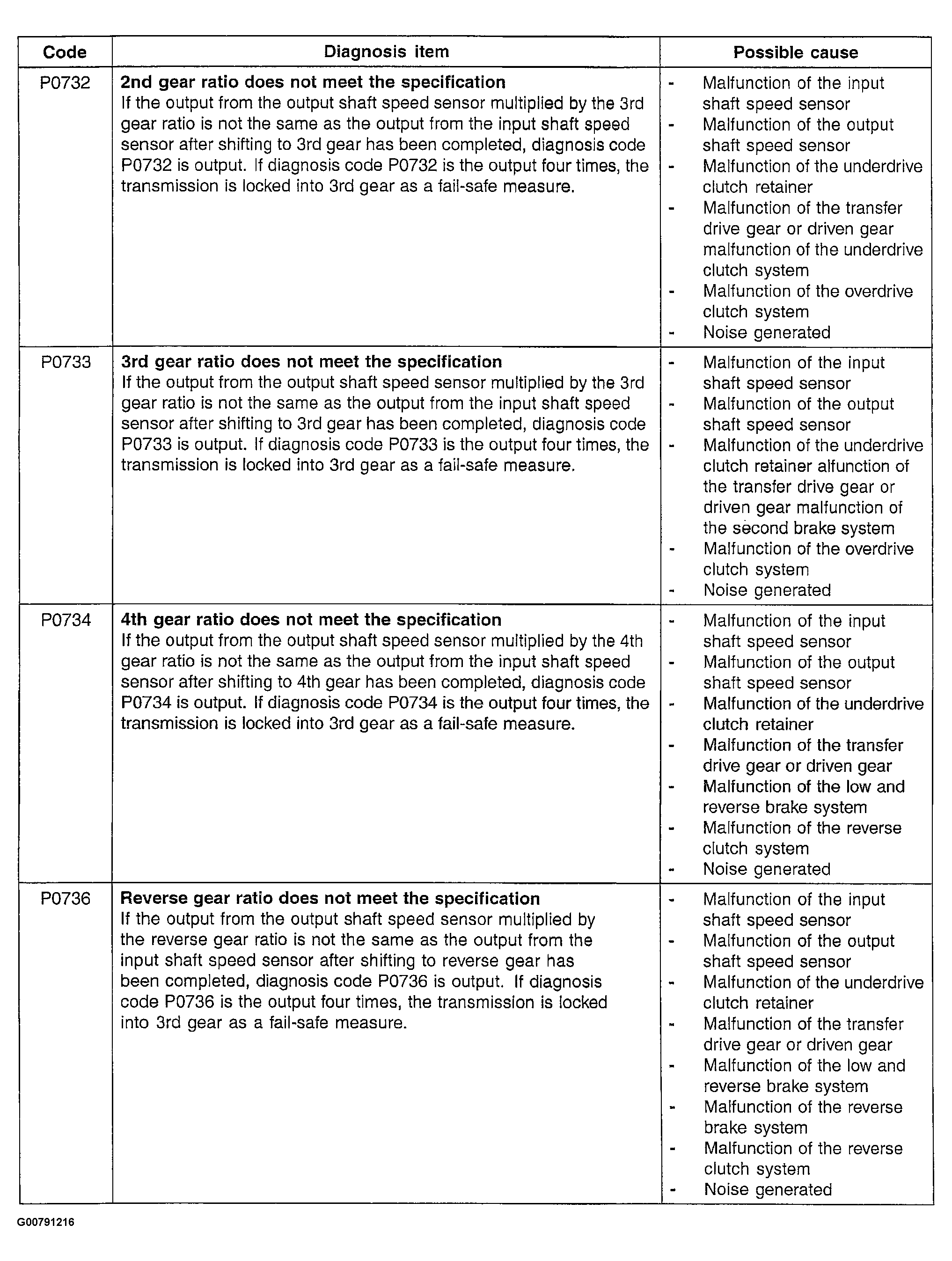

Fig 3: Inspection Chart For Diagnosis Codes Table (3 Of 4)

Courtesy of HYUNDAI MOTOR CO.

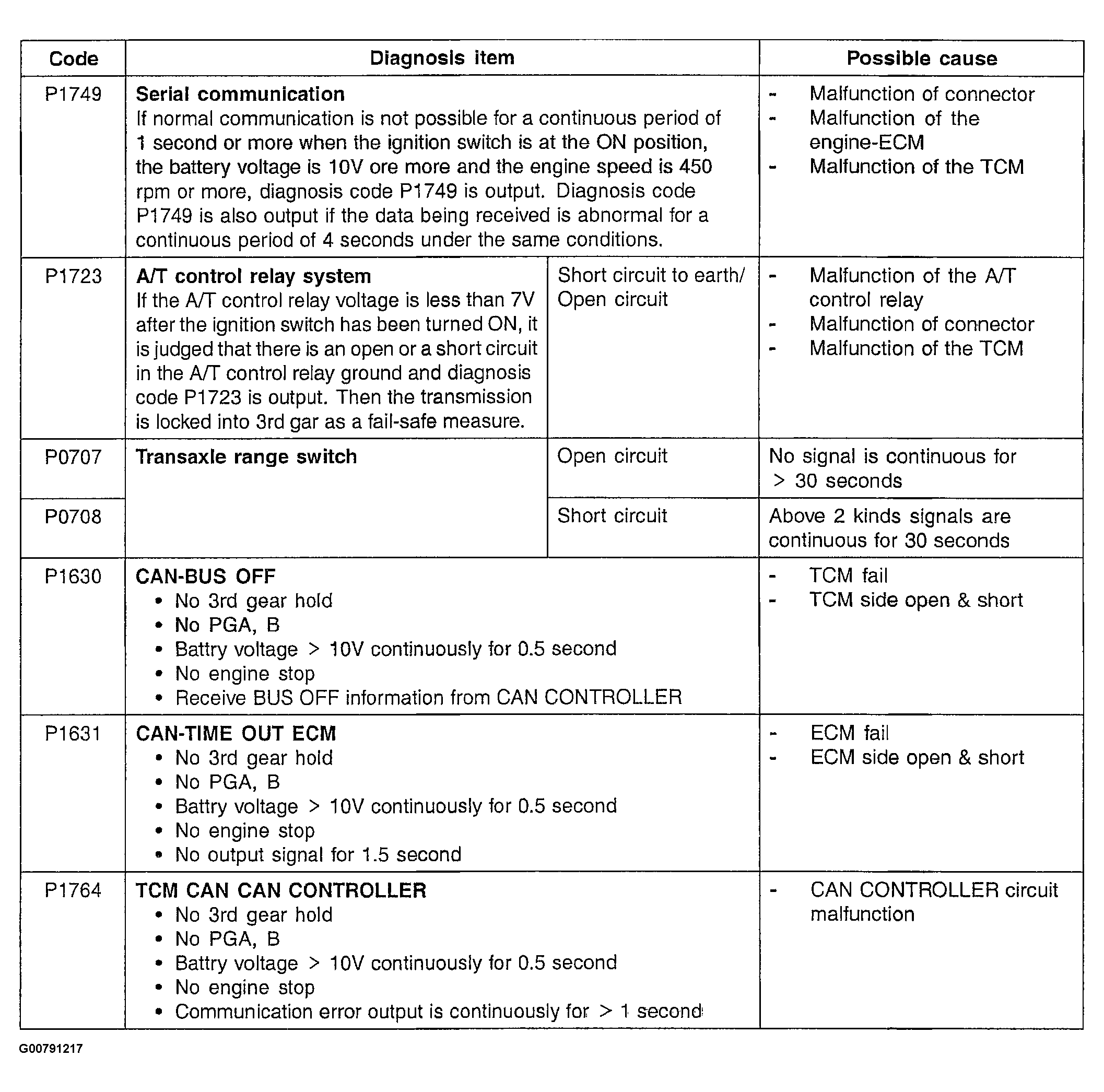

Fig 4: Inspection Chart For Diagnosis Codes Table (4 Of 4)

Courtesy of HYUNDAI MOTOR CO.
