PROGRAMMING HYUNDAI SECURITY SYSTEM

TECHNICAL SERVICE BULLETIN

Reference Number(s): 01-90-011, Date of Issue: September, 2001

HYUNDAI:	1995-1999 Accent (2000-2001 Not Available), 1996-2001 Elantra, 1994-2001 Sonata, 1997-2001 Tiburon, 2001 Santa Fe, 2001 XG300
GROUP:	Body Electrical

DESCRIPTION

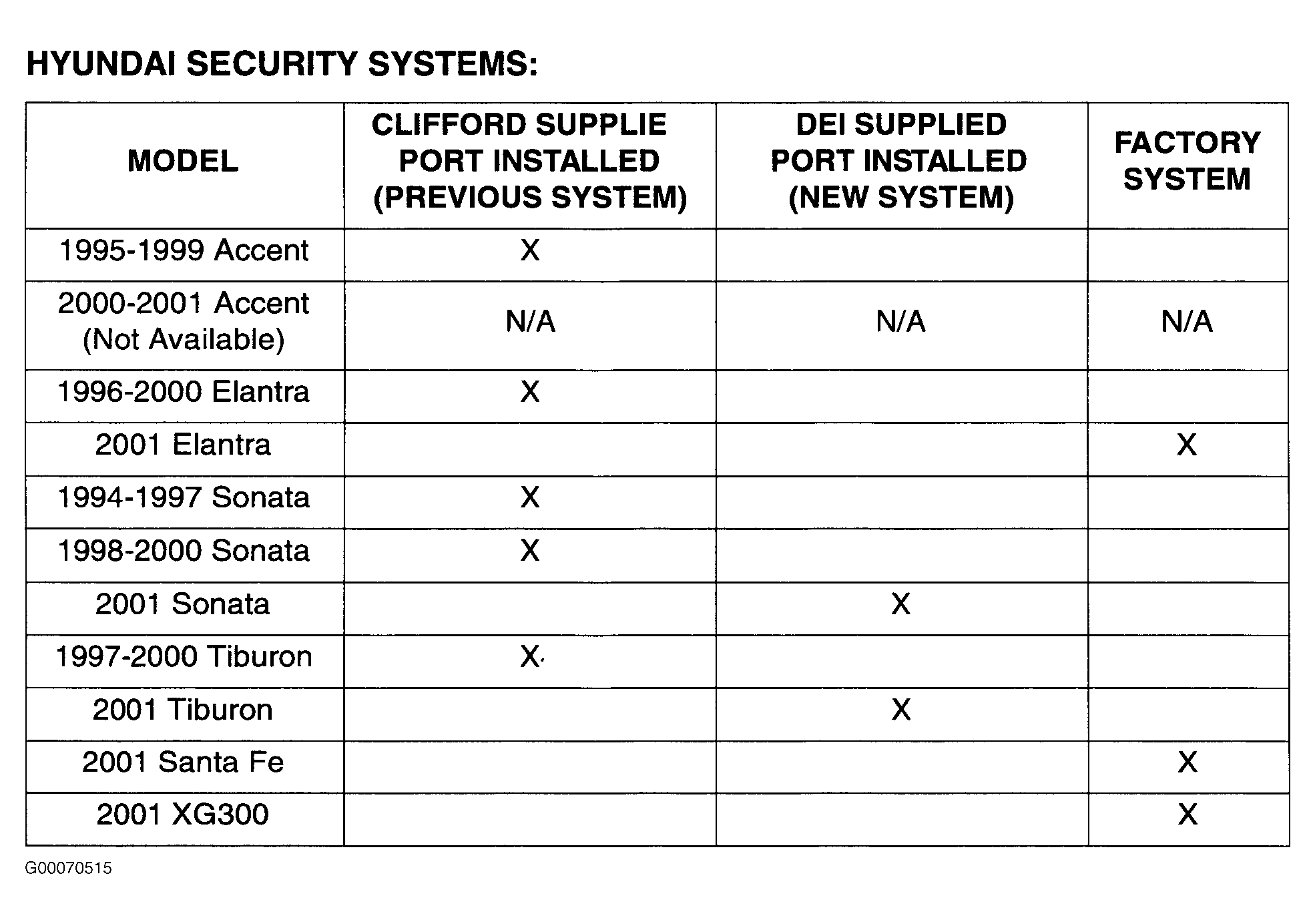

This bulletin provides programming procedures for all security systems available on Hyundai vehicles. There are three different types of security systems available: Clifford Supplied System, Directed Electronics, Inc. (DEI) Supplied System and Factory Installed System. The following chart (Fig 1 ) shows which system is available for each model year Hyundai.

Fig 1: Hyundai Security Systems

NOTE:

The three security system kit/parts are not interchangeable.
Refer to TSB 01-90-003 for Hyundai Security System Part Numbers.
Refer to Valet Switch and LED Illustrations for security system transmitter.

PROGRAMMING THE CLIFFORD SYSTEM

NOTE: The Clifford Security System is not interchangeable with the DEI or Factory Installed Systems.

The table on the following page provides information to program the Clifford System's various features. Although some of the headings are self explanatory, a brief description of each will assist in the use of the table:

Features: Features and/or options of security system.
Procedure to Accomplish the Feature Setting:
1. Select the feature you wish from the table on page 3 of this bulletin. Note the number of cycles (or flicks).
2. Turn the vehicle's ignition switch to the "ON" position.
3. Immediately flick the valet switch up and down the number of times noted for the feature you wish to program (to help you count, you will hear a single chirp confirmation each time you flick except for the 2000 Sonata Keyless Clifford System).
  1. If noted, perform the "Secondary Action".
  2. If noted, wait for the "Program Completion Confirmation".
4. Turn the ignition off. Repeat steps 1 - 4 for any other feature you wish to program.
Original Setting: How the system is delivered from the manufacturer.
# Of Cycles: The number of "Valet Switch Cycles" (on/off) required to accomplish programming change. Each complete cycle will be followed by a siren "chirp" or a horn "beep".
Secondary Action: When required, this is done after last "Valet Switch Cycle".

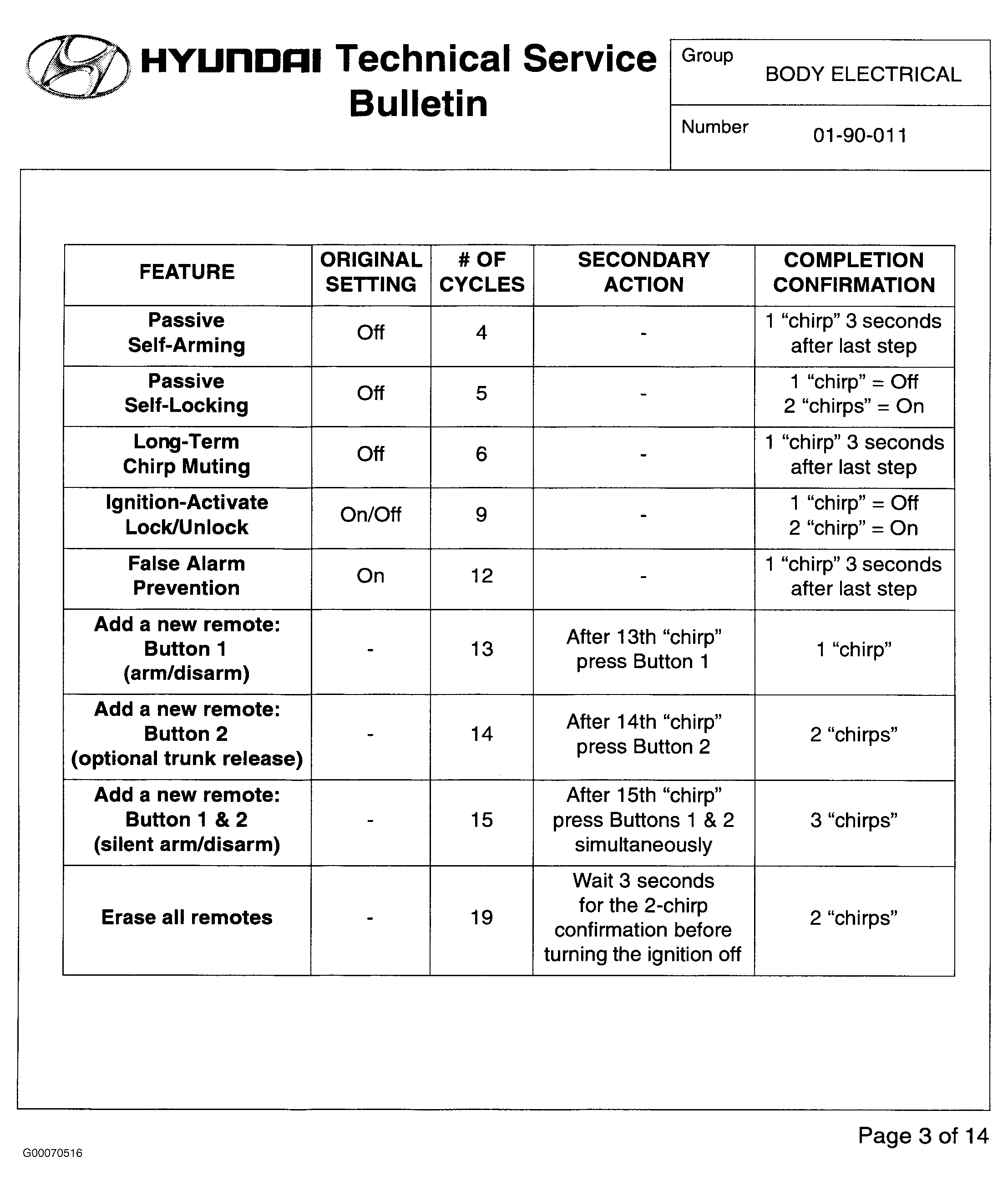

Completion Confirmation: What will occur if programming is successful. See Fig 2 .

Fig 2: Completion Confirmation Table

PROGRAMMING THE DEI SYSTEM

The following information provides a procedure to add new remotes and programs the DEI Security System's various features. It is possible to access and change any of the feature settings using the Valet Switch.

TO ADD A NEW REMOTE

The keyless entry receiver CPU will learn up to four different remotest if there are more than four remotes introduced to the system, the transmitters added first will be deleted. (First remote in, first remote out).

NOTE: The LED (P/N 00265-11001) and the Valet Switch (P/N 00265-11000) are not included in the DEI keyless kit. The two parts are required in order to program and/or add new remotest The LED and Valet Switch are included with the security upgrade kit and as part of the replacement transmitters.

Make sure to keep an LED and Valet Switch available for use to assist customers to program the keyless kits.

Plug the Valet Switch into blue 2-pin port on side of keyless entry receiver (CPU).
Plug LED into white 2-pin port on side of keyless entry receiver (CPU).
Turn ignition switch to the "on" position.
Press and RELEASE Valet Switch seven times.
Press and HOLD Valet Switch.
LED should respond by flashing seven times.
Press button I (lock button) of remote you wish to add.
Release Valet button.
Turn ignition switch "off".
Test each remote for complete function.

PROGRAM FEATURES

NOTE: This procedure is applicable for security upgrade only .

Open the vehicle door.
Turn the ignition on, and then off. See Fig 3 .

Fig 3: Ignition Features

Select a feature. See PROGRAM FEATURES .

Locate the Valet Switch underneath the driver side dashboard area. See Fig 4 . Press and release the Valet Switch the number of times (cycles) corresponding to the feature corresponding to the feature you wish to program. For example, to access the Siren Duration feature, press and release the Valet Switch three times. Then press the button once more and HOLD it. The siren will chirp the number of times corresponding to the feature you have accessed.

Fig 4: Identifying Valet Switch

PROGRAM FEATURES

# Of Cycles	One-Chirp Setting (Default)	Two-Chirp Setting
1	Active Arming	Passive Arming
2	Audible Arm/Disarm Confirmation Chirps ON	Audible Arm/Disarm Confirmation OFF
3	Siren Duration 30 Seconds	Siren Duration 60 Seconds
4	Instant Door Trigger	Delayed Door Trigger
5	Door Trigger Error Chirp ON	Door Trigger Error Chirp OFF
6	No Function	No Function
7	No Function	No Function
8	No Function	No Function
9	Valet Switch Input: 1 Pulse	Valet Switch Input: 2-5 Pulses

NOTE: The default settings are indicated in bold. A description of the system features are outlined on pages 7-8 of this bulletin.

Program the feature.
- While holding the Valet Switch, you can toggle the feature on and off using your factory remote transmitter. See Fig 5 . Pressing the button that locks the doors (button 1) will select the one-chirp or default setting. Pressing the button that unlocks the doors (button 11) will select the two-chirp setting.

  Fig 5: Identifying Factory Remote Transmitter
Release the Valet Switch. See Fig 4 .
Test the system to make sure the feature that you have programmed or selected functions correctly.

NOTE: Once a feature is programmed, other features can be programmed.

To access another feature:

Press and release the Valet Switch the number of times necessary to advance from the feature you just programmed to the next one you wish to program. Then press the Valet Switch once more and hold it.
For example, if you just programmed the second feature and you would like to program the seventh feature in the menu, you would:
1. Press and release the Valet Switch five times.
2. Press it once more and hold it.
3. The siren would chirp seven times to confirm access to Feature 7.

The Programming procedure will be exited if any of the following occurs:

Close the door.
Turn the ignition on.
No activity for longer than 15 seconds.
Press the valet button too many times.

SYSTEM FEATURE DESCRIPTIONS

ACTIVE/PASSIVE ARMING : When active arming is selected, the system will only arm when the transmitter is used. When set to passive arming, the system will arm automatically 30 seconds after the last door is closed. To alert the consumer of passive arming, the siren will chirp and the parking lights will flash 30 seconds after the door is closed.
AUDIBLE ARM/DISARM CONFIRMATION ON/OFF : This feature controls the chirps that confirm the arming and disarming of the system. In the ON setting (default), the siren will provide audible confirmation when arming and disarming the system. If programmed to the OFF position, no siren chirps will be heard when arming or disarming.
SIREN DURATION 30/60 SECONDS : In the default setting, the full triggered sequence will continue for 30 seconds when triggered This can be programmed to 60 seconds in the system features learn routine.
DOOR TRIGGER INSTANT/DELAYED : In the instant (default) setting, if a door is opened while the security system is armed, the system will trigger immediately. In the delayed setting, there is a 15-second delay before the doors will trigger the system. This gives the user 15 seconds to disarm the system after a door is opened without having disarmed with the factory transmitter.
DOOR TRIGGER ERROR CHIRP ON/OFF : With the door trigger error chirp programmed off, the system will not report an invalid zone on arming when the door trigger wire is active. This eliminates the extra chirps that occur when interfacing with vehicles that have exceptionally long dome light delay circuits.
NO FUNCTION
NO FUNCTION
NO FUNCTION
VALET PULSE COUNT 1 - 5 PULSES : The system can be programmed to count the number presses of the Valet Switch before disarming the security system. The factory default setting is 1 pulse. The unit can be programmed for 2 - 5 pulses using the unlock button (button 11) to select the setting. (See the Valet Mode section below).

VALET MODE

In Valet Mode, the system will not arm, even with the transmitter, but all convenience functions (door locks, etc.) will work normally. This is very useful when washing or servicing the vehicle.

To enter or exit Valet Mode with the Valet Switch:

Turn ignition to the "on" position. Then turn to the "off" position.
Press and release the Valet Switch within 10 seconds. The status LED will light steady if you entered Valet Mode.

To exit Valet Mode, repeat the steps above. The LED will turn off when exiting Valet Mode.

FACTORY INSTALLED SYSTEM

The 2001 MY Elantra, Santa Fe and XG300 contain factory alarm and keyless entry. These systems are installed by HMC during production of these vehicles. The factory system cannot be added to a vehicle; the vehicle must be ordered with it. The factory security kit is NOT interchangeable with the Clifford or DEI security systems.

NOTE:

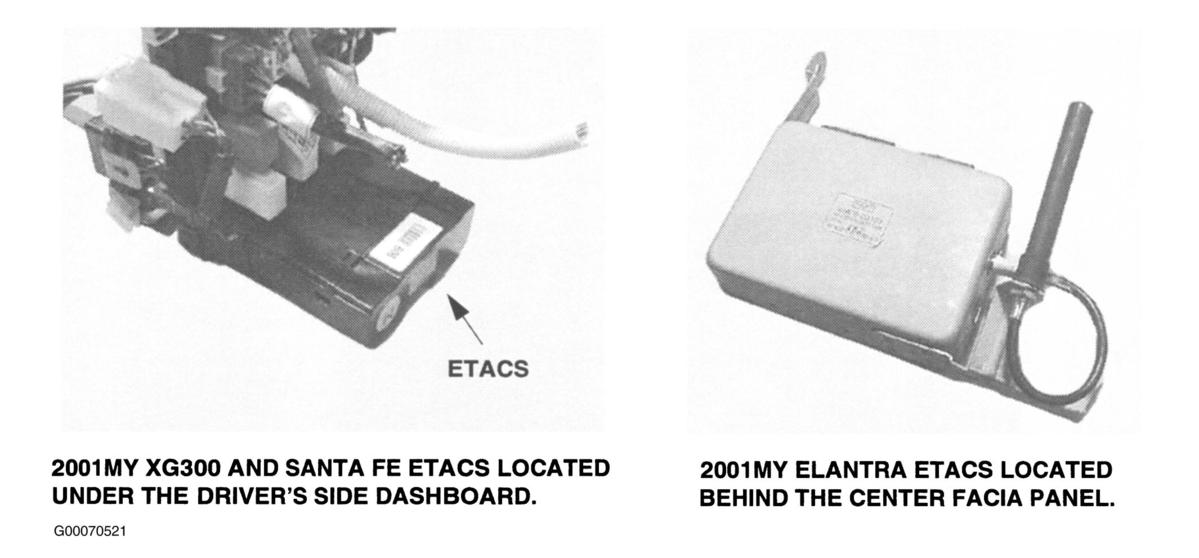

The factory security system module is incorporated into the vehicle's Electronic Time and Alarm Control System (ETACS). See Fig 6 . The factory system does not contain an LED status indicator, impact shock sensor, valet switch, remote panic feature or audible arm and disarm confirmation.

Fig 6: Identifying Electronic Time & Alarm Control System

CODE SAVING TOOL KIT

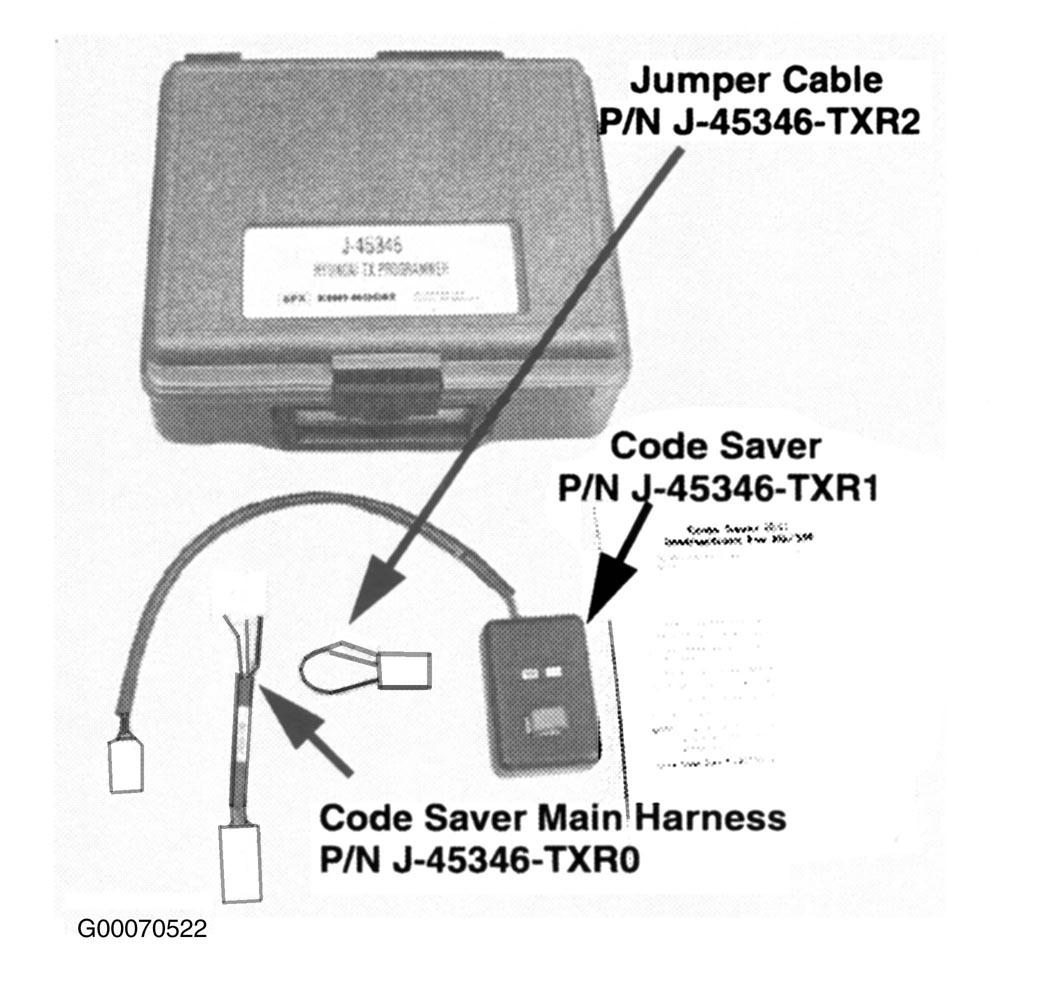

A programming Special Service Tool can be used to add new or replacement remotes to the 2001 MY Elantra, Santa Fe and XG300 security systems. The tool (P/N J-45346) can be purchased through SPX/Kent-Moore at 1-800-345-2233. Each dealership was supplied one tool in January, 2001. A maximum of two remotes may be used for each system.

The J-45346 tool (Transmitter Programmer Kit) is required to reprogram the ETACS control module to recognize remotes. To reprogram the ETACS control module, the following three items are required.
- Code Saver (P/N J-45346-TXR1)
- Code Saver Main Harness (P/N J-45346-TXRO)
- Jumper Cable (P/N J-45346-TXR2)
See Fig 7 .

Fig 7: Identifying Contents Of Transmitter Programmer Kit

PROGRAMMING INSTRUCTIONS FOR FACTORY INSTALLED SYSTEM

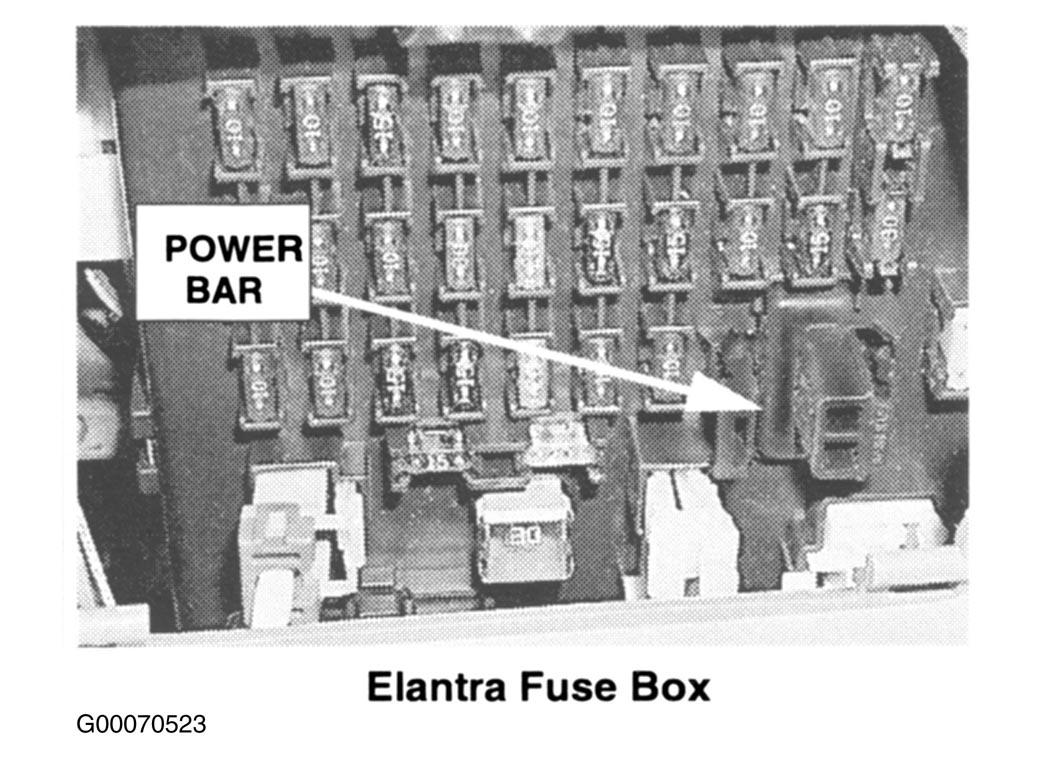

Verify that the power bar in the interior fuse box is in the "On" position. See Fig 8 .

Fig 8: Locating Power Bar
Remove the ignition key.

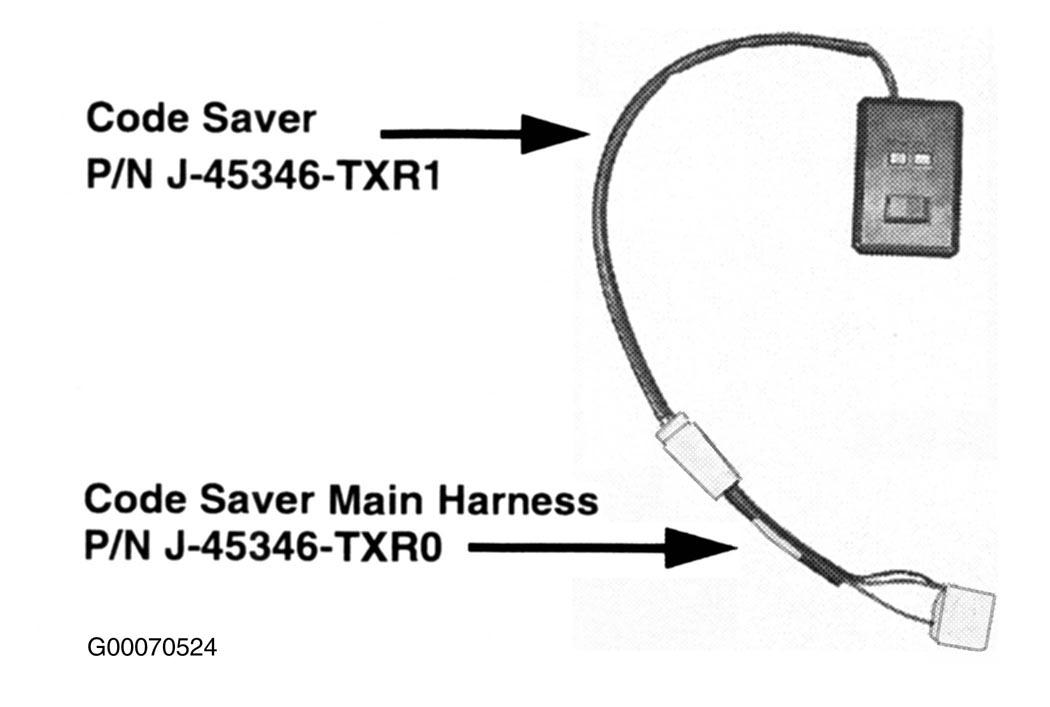

Connect the Code Saver Main Harness (J-45346-TXR0) and the Code Saver (J-45346-TXR1 ) together securely. See Fig 9 .
NOTE: For the 2001 XG300, connect the Code Saver Main Harness and the Jumper (J-45346-TXR2) together securely.

Fig 9: Connecting Code Saver Main Harness & Code Saver

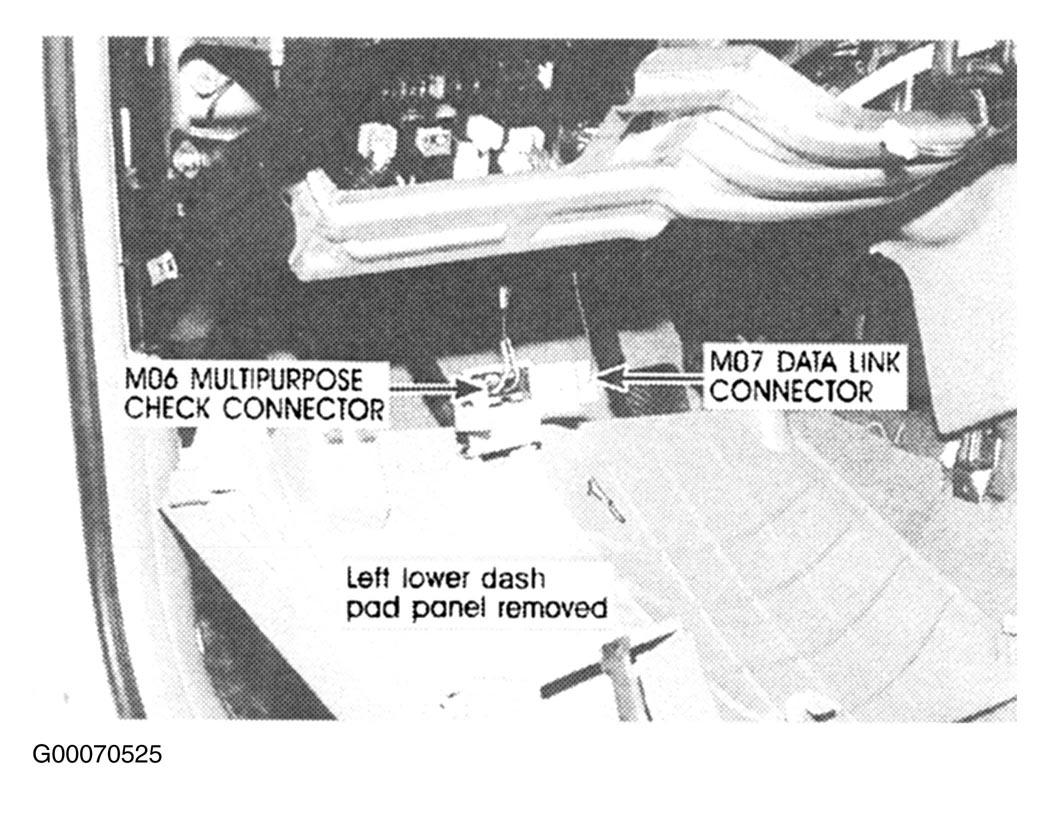

Connect Code Saver Main Harness to the white 10-pin multipurpose connector located under the dash. See Fig 10 .

Fig 10: Multipurpose Check Connector
Move Code Saver switch from "Ready" to "Save".
NOTE: Disregard this step when programming the 2001 XG300.
Press the "Lock" or "Unlock" button on either remote and release after the LED pulses on and off ONE cycle.
Repeat previous step with remaining remote. Move Code Saver switch back to "Ready" position.
NOTE: Disregard this step when programming the 2001 XG300.
Unplug Code Saver Main Harness from vehicle's multipurpose connector.
Test remotes.

NOTE: The ETACS control module in a vehicle can only be programmed to accept two remote transmitters and MUST be programmed for both remote transmitters at the same time.

CLIFFORD SYSTEM

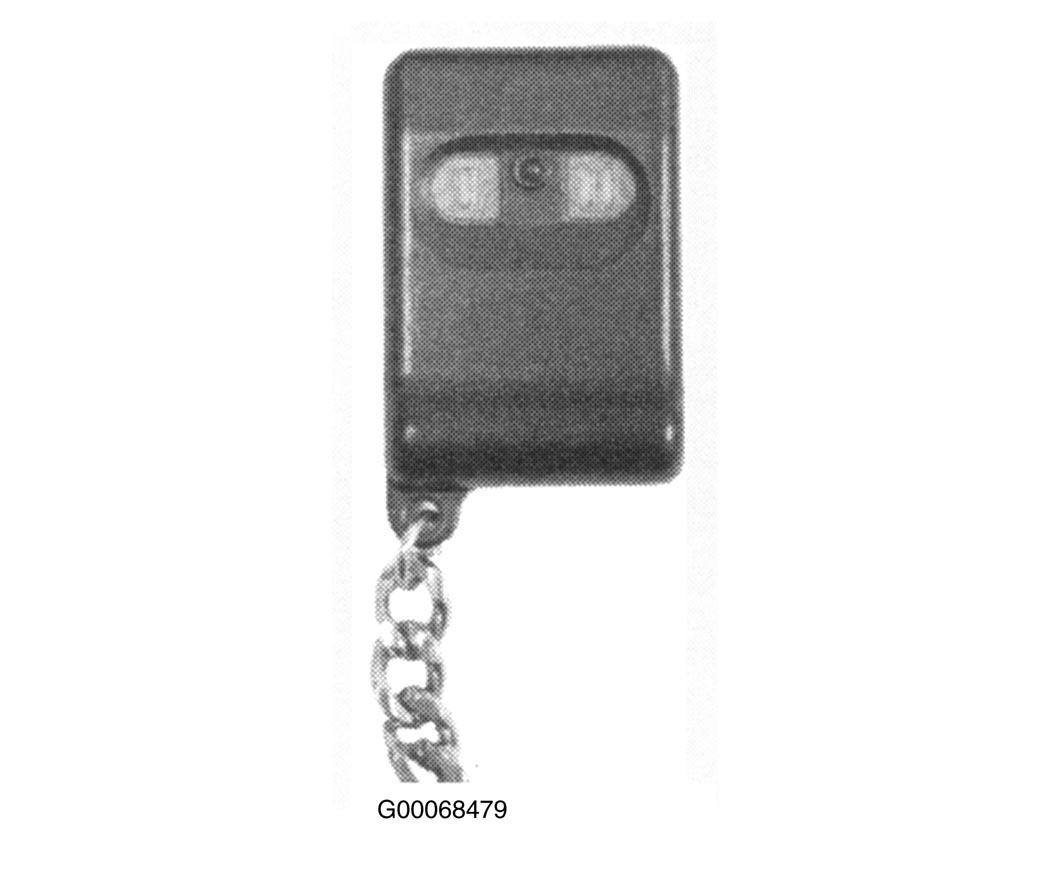

Remote transmitter (P/N 00243-16110). See Fig 11 .

Fig 11: Identifying Clifford Systems Remote Transmitter

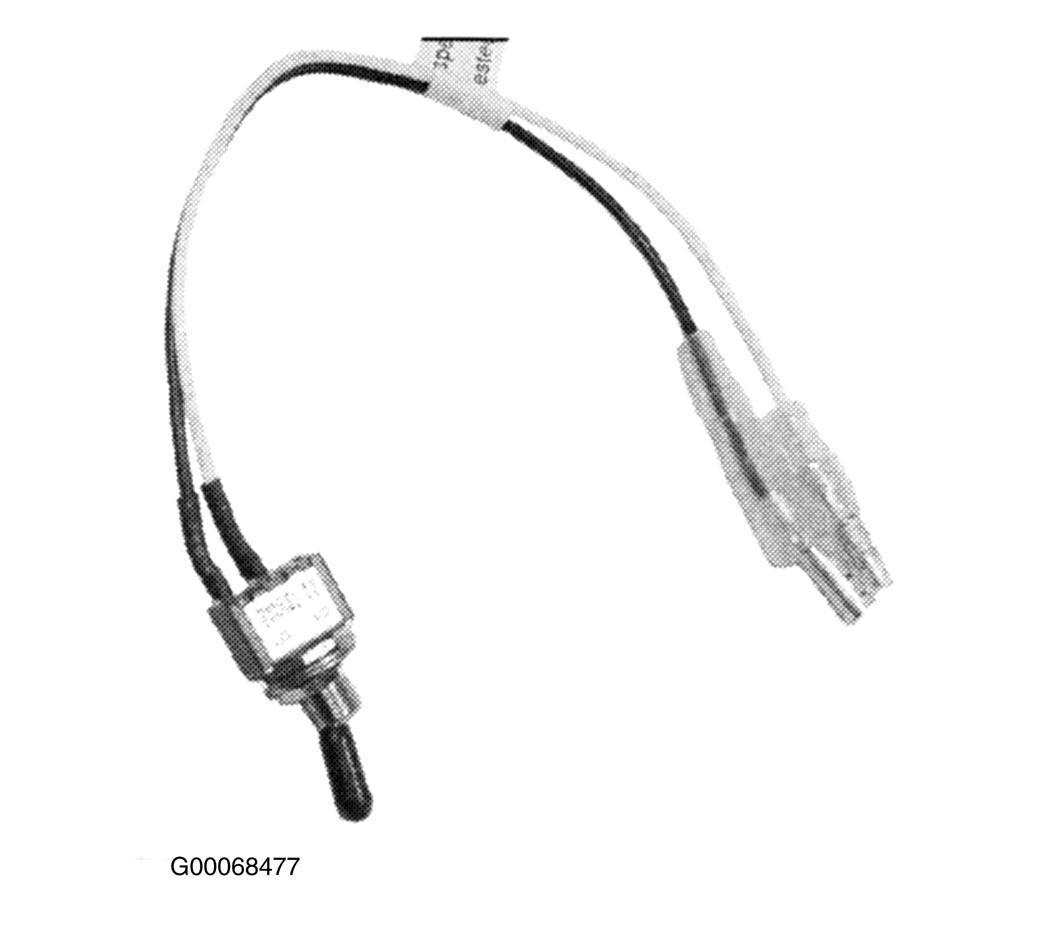

Valet Switch (P/N 00243-16130). See Fig 12 .

Fig 12: Identifying Clifford Systems Valet Switch

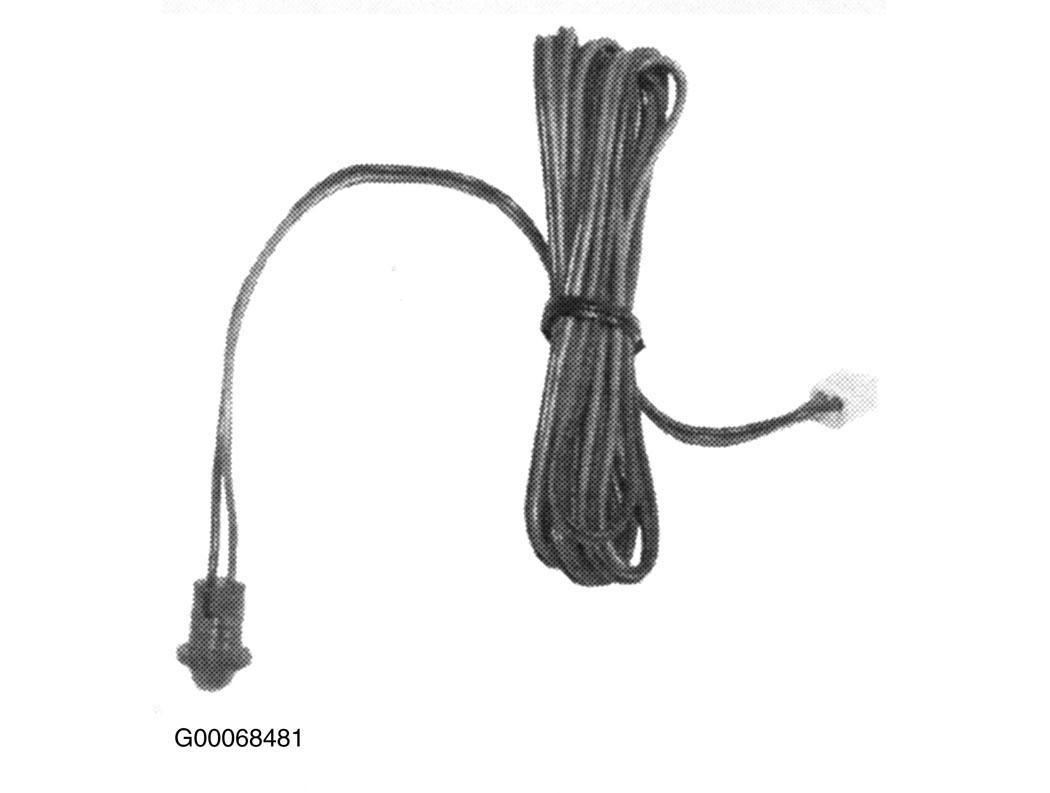

LED. See Fig 13 .

Fig 13: Identifying Clifford Systems LED

DEI SYSTEM

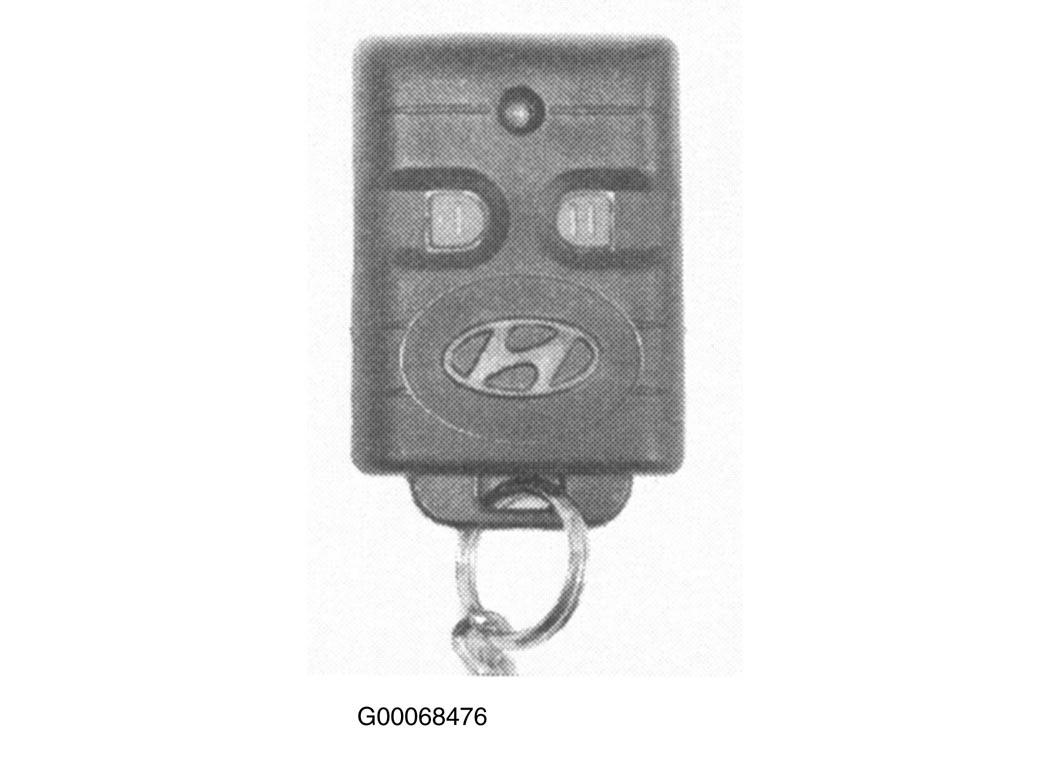

Remote transmitter (P/N 00265-11002) for 2001 Sonata and 2001 Tiburon. See Fig 14 .

Fig 14: Identifying DEI Systems Remote Transmitter

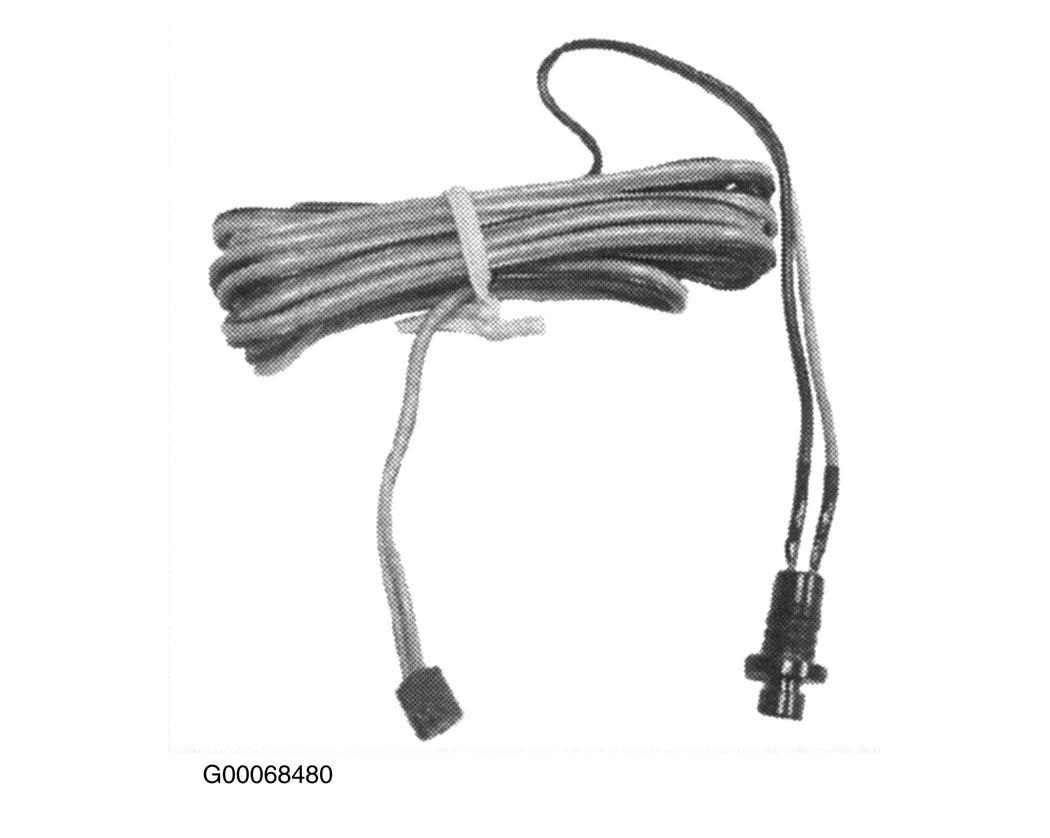

Valet Switch (P/N 00265-11000). See Fig 15 .

Fig 15: Identifying DEI Systems Valet Switch

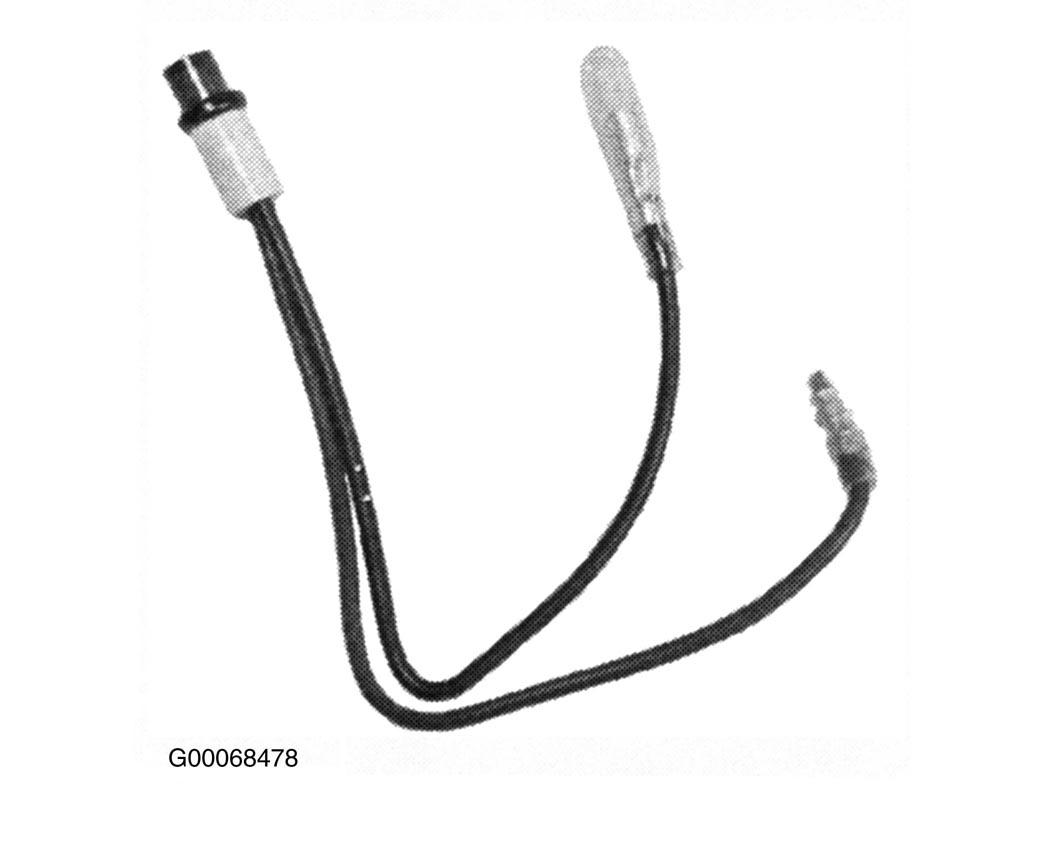

LED (P/N 00265-11001). See Fig 16 .

Fig 16: Identifying DEI Systems LED

FACTORY SYSTEM

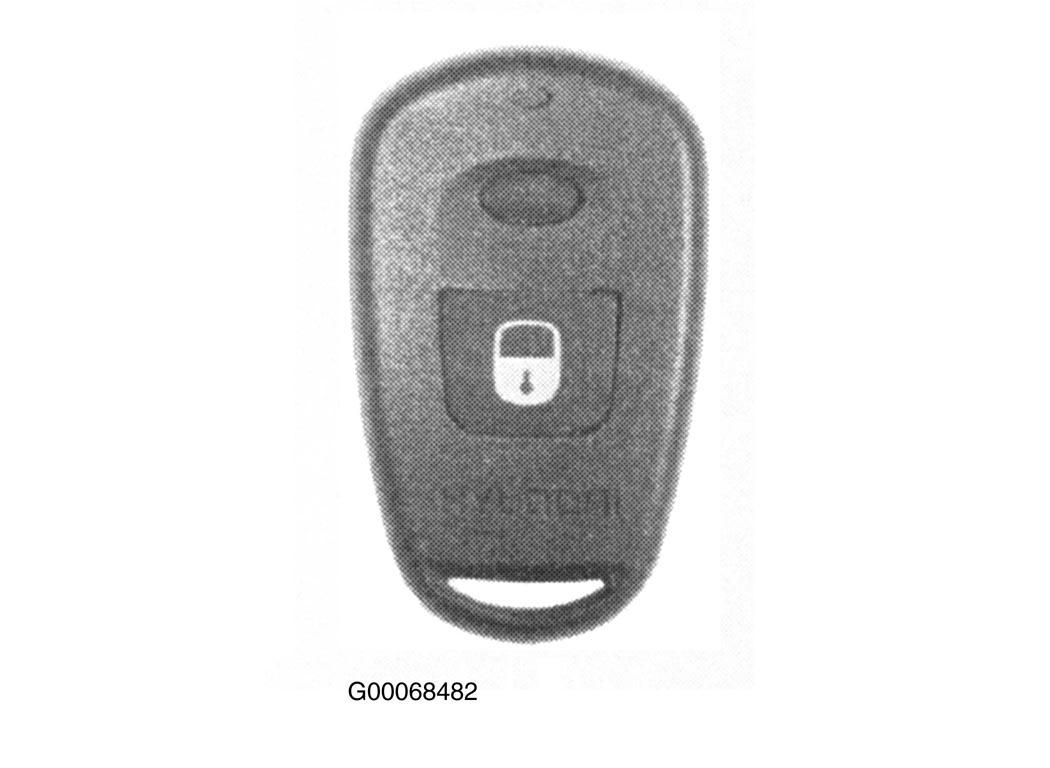

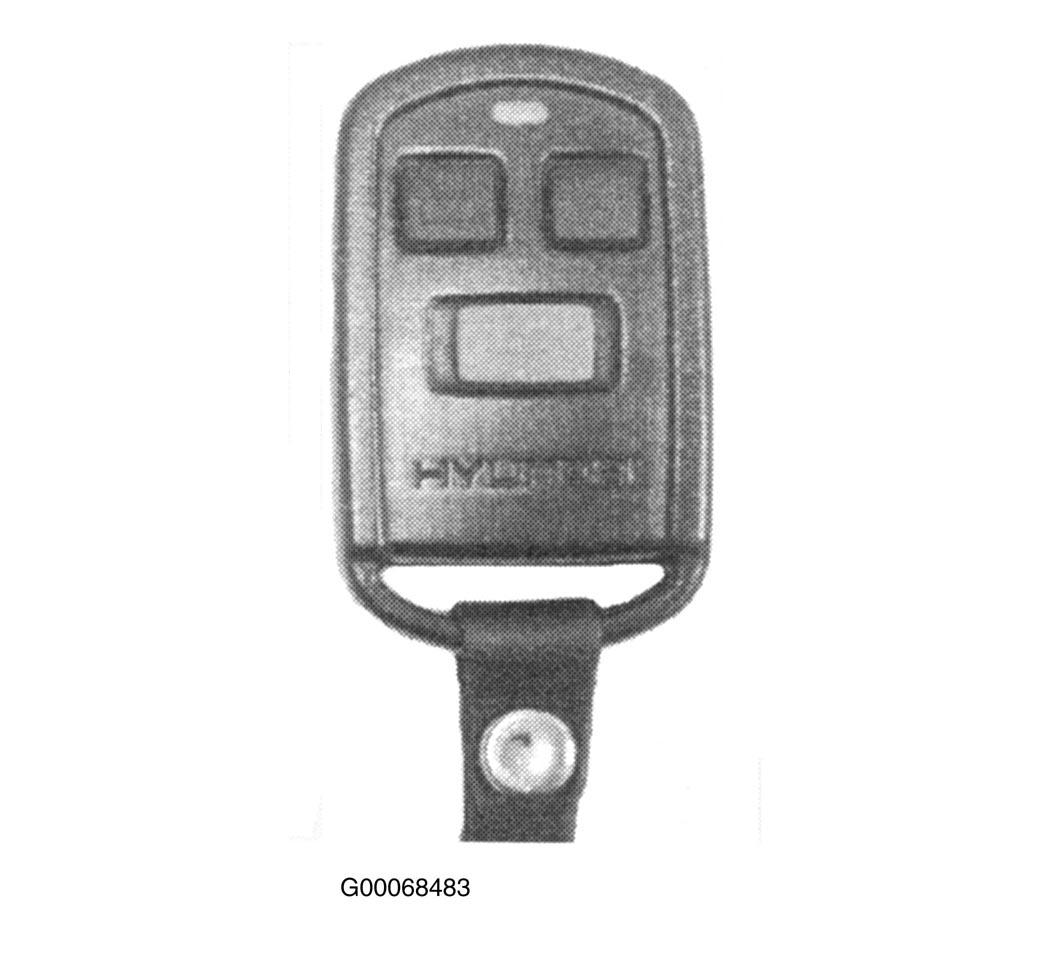

Remote transmitter (P/N 95411 -3A200) for 2001 Elantra and 2001 Santa Fe. See Fig 17 .

Fig 17: Identifying Factory Systems Remote Transmitter For 2001 Elantra & Santa Fe
Remote transmitter (P/N 95430-39200) for 2001 XG300. See Fig 18 .

Fig 18: Identifying Factory Systems Remote Transmitter For 2001 XG300
