Crankshaft Position Sensor Replacement Procedure (99-36-010)

Publication date: 1999-07-01
Reference number: 99-36-010

CRANKSHAFT POSITION SENSOR REPLACEMENT PROCEDURE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 99-36-010

CRANKSHAFT POSITION SENSOR REPLACEMENT PROCEDURE

Model(s): 1996-1999 Hyundai Accent

1996-1999 Hyundai Elantra

1996-1999 Hyundai Tiburon

Group: Engine Electrical

Bulletin No.: 99-36-010

Date: July, 1999

DESCRIPTION

When replacing the Crankshaft Position Sensor on a 1996 to 1999 Accent, Elantra or Tiburon, it is important to note differences in the construction of the original sensor and the replacement sensor.

The sensor construction was modified in 1997. The sensor's housing material was changed from a metallic design to a plastic design (as can be seen in Fig 1 .

NOTE: It is very important, when replacing an old style sensor with a new style sensor, that the O-Ring and the plastic washer be removed from the sensor mounting hole before the new sensor is installed. See Fig 2 .

If the O-Ring and/or the plastic washer is not removed from the sensor mounting hole, the new sensor will not fit properly.

WARRANTY INFORMATION

Normal warranty labor times and operation codes apply.

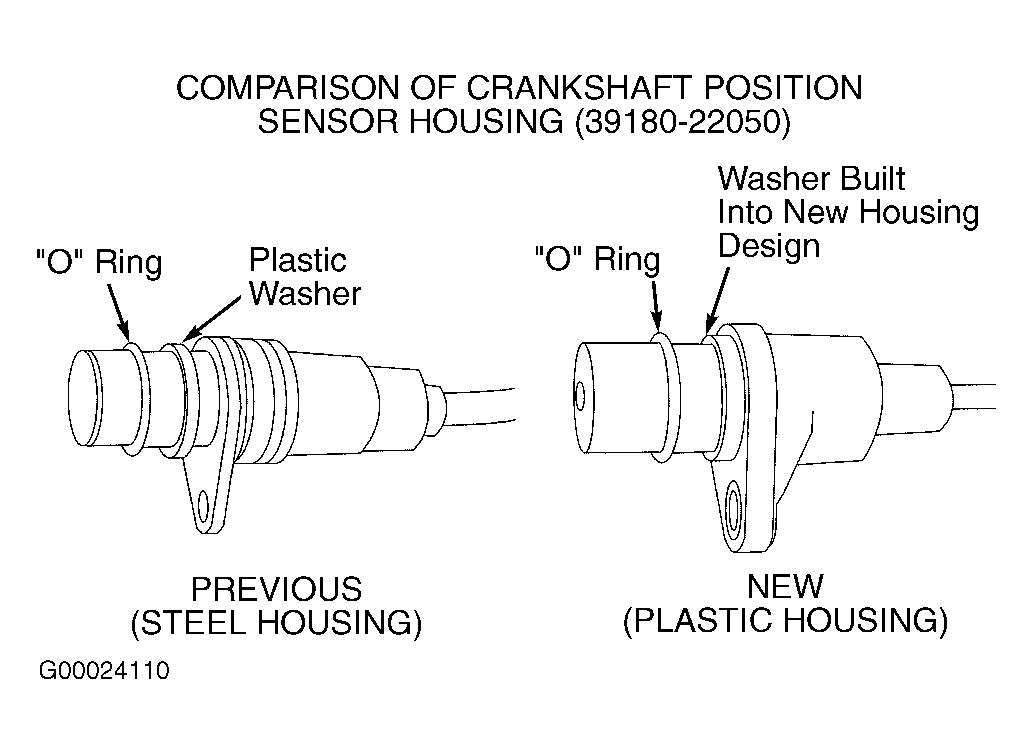

Fig 1: Comparison Of Crankshaft Position Sensor Housing

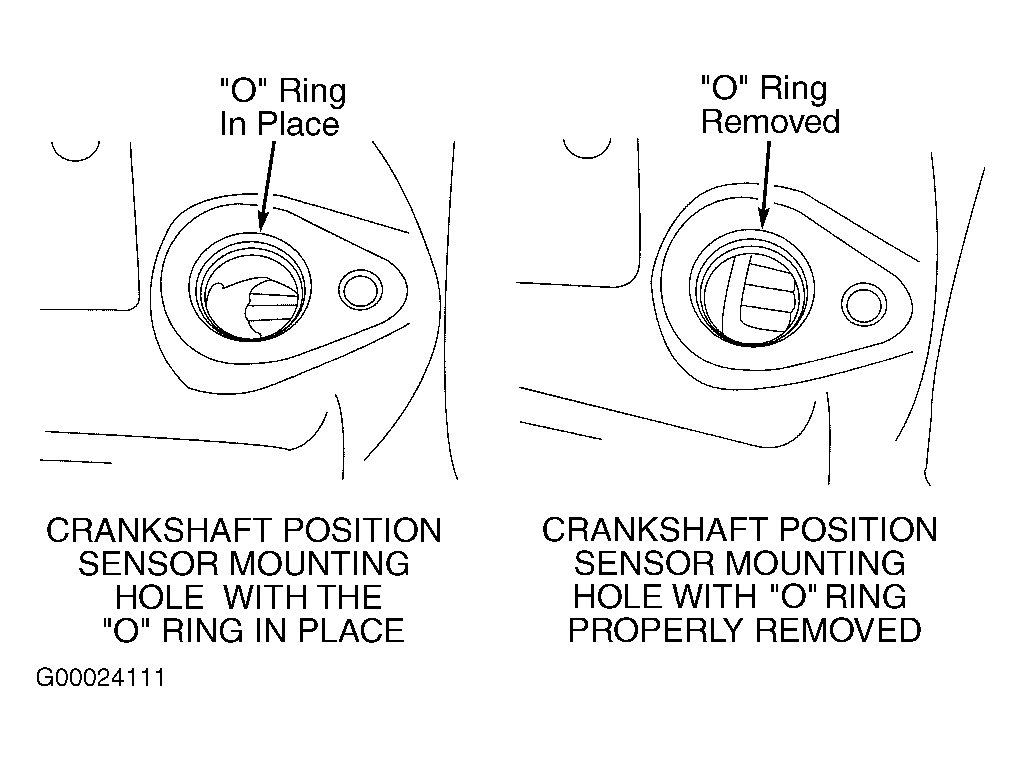

Fig 2: Crankshaft Position Sensor Mounting Hole
