Engine Controls - Tests W/Codes - 2.0L 4-CYL
>>
Self-Diagnostic System
>>
Component Locations
Component Locations
Emission-related components are shown in illustrations. See
Fig 1
.

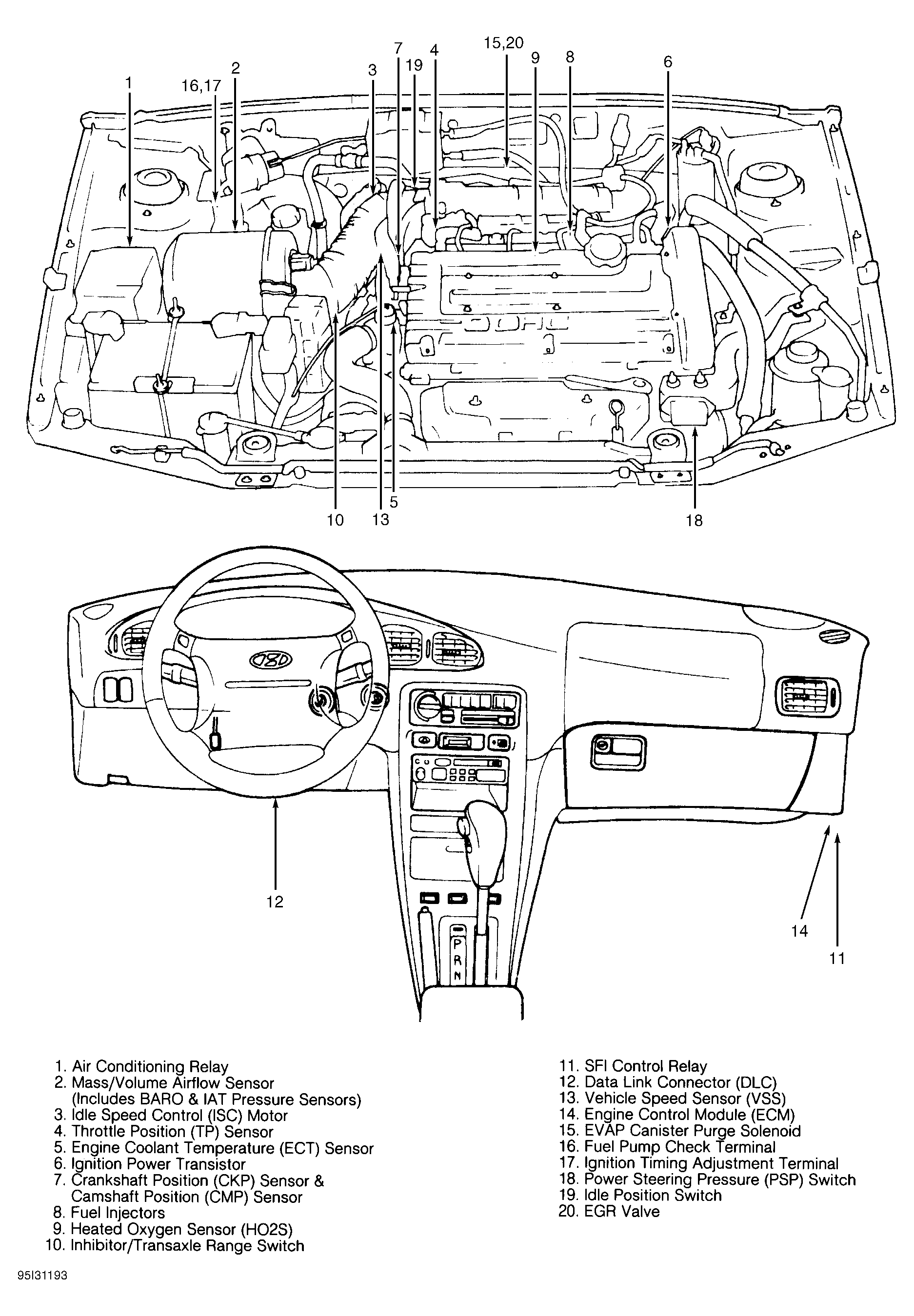

Fig 1: Identifying Emission-Related Components (2.0L)
Courtesy of HYUNDAI MOTOR CO.
