Heater Control Panel

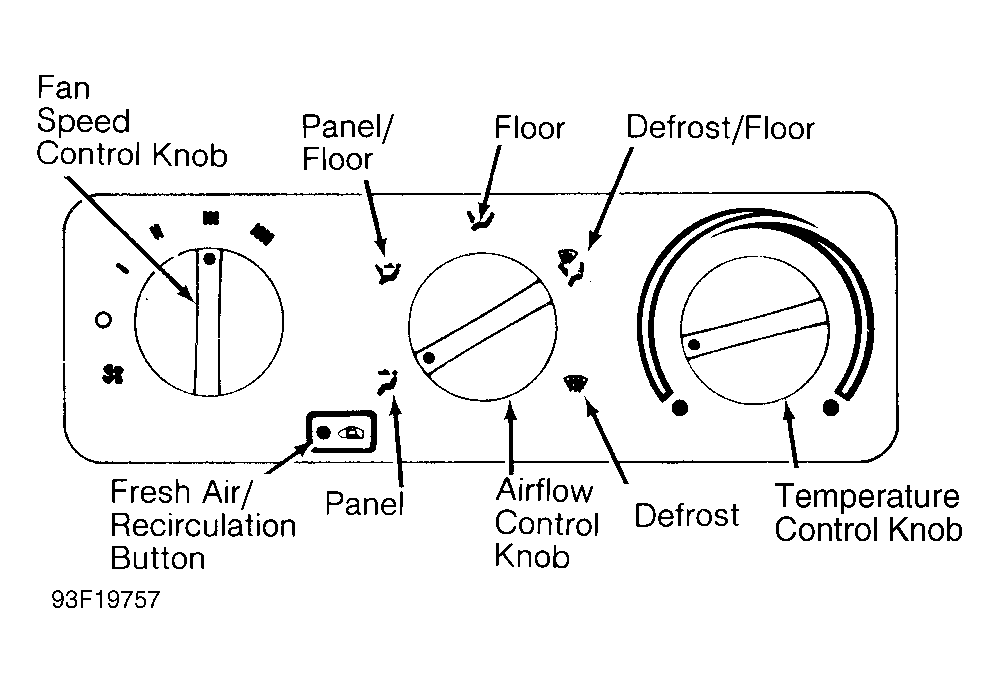

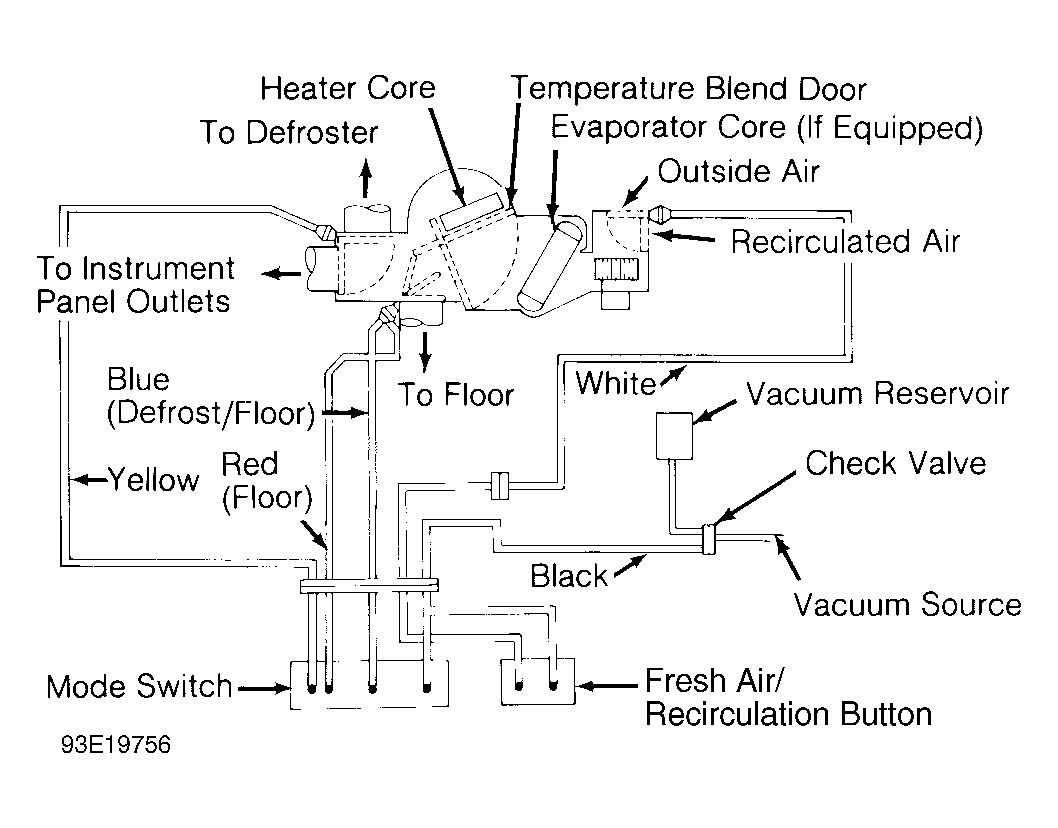

Heater control panel uses vacuum motors to control positions of blend doors. A fresh air/recirculated control button is used to control airflow source (fresh or recirculated). Airflow control selector directs airflow to desired outlet. Temperature control knob opens or closes blend-air door, which determines heat output. See Figure and Figure .
