SHIFT LOCK RELEASE SYSTEM:RELEASE BUTTON REVISED

TECHNICAL SERVICE BULLETIN

Reference Number(s): 93-90-017, Date of Issue: October 1993

SHIFT LOCK RELEASE SYSTEM

Model(s): 1993 Hyundai Excel

Group: Body Electrical

Bulletin No.: 93-90-017

Date: October 1993

DESCRIPTION

The visible shift lock release button has been eliminated. The new shift lock release is concealed under the cap on the console. A thin object, such as a small screwdriver, is required to remove the trim plug to gain access to the concealed release button. See Fig 1 and Fig 2 .

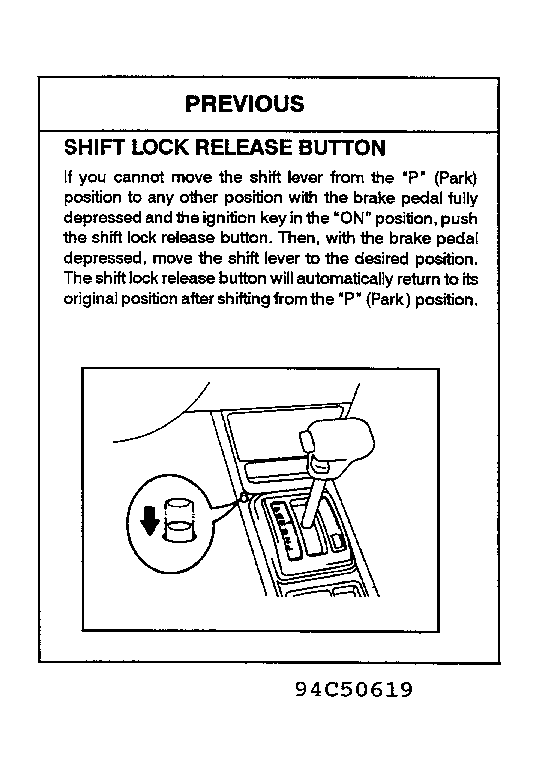

Fig 1: Previous Shift Lock Release Button

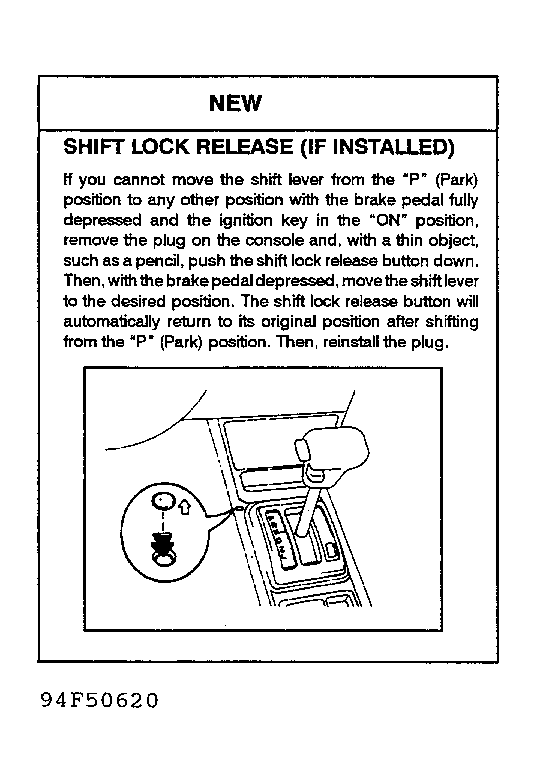

Fig 2: New Concealed Shift Lock Release Button

PARTS INFORMATION

Part Name	Previous Part No.	New Part No.
Button Assy-Shift Lock	43790-24701
Plug-Console	84613-24000-
Console-Fr	84611-24020

NOTE: (2 ) - Color Code AQ, FD, PJ, PR)

EFFECTIVE PRODUCTION DATE

Model	Effective VIN. No.	Effective Date
3 Door	KMHVD21J1PU255784	May 31, 1993
4/5 Door	KMHVF31J1PU814893	May 31, 1993
