Ignition Key Lock Controls:Vehicles With Auto Trans (93-90-015)
Publication date: 1993-10-01Reference number: 93-90-015
IGNITION KEY LOCK CONTROLS:VEHICLES WITH AUTO TRANS
TECHNICAL SERVICE BULLETIN
Reference Number(s): 93-90-015, Date of Issue:
October, 1993
IGNITION KEY LOCK CONTROLS FOR AUTOMATIC TRANSAXLE EQUIPPED EXCELS
Model Hyundai Excel
Group Body Electrical
Bulletin No. 93-90-015
Date October, 1993
DESCRIPTION
The ignition key can be removed only when the automatic transaxle shift lever is in the PARK position.

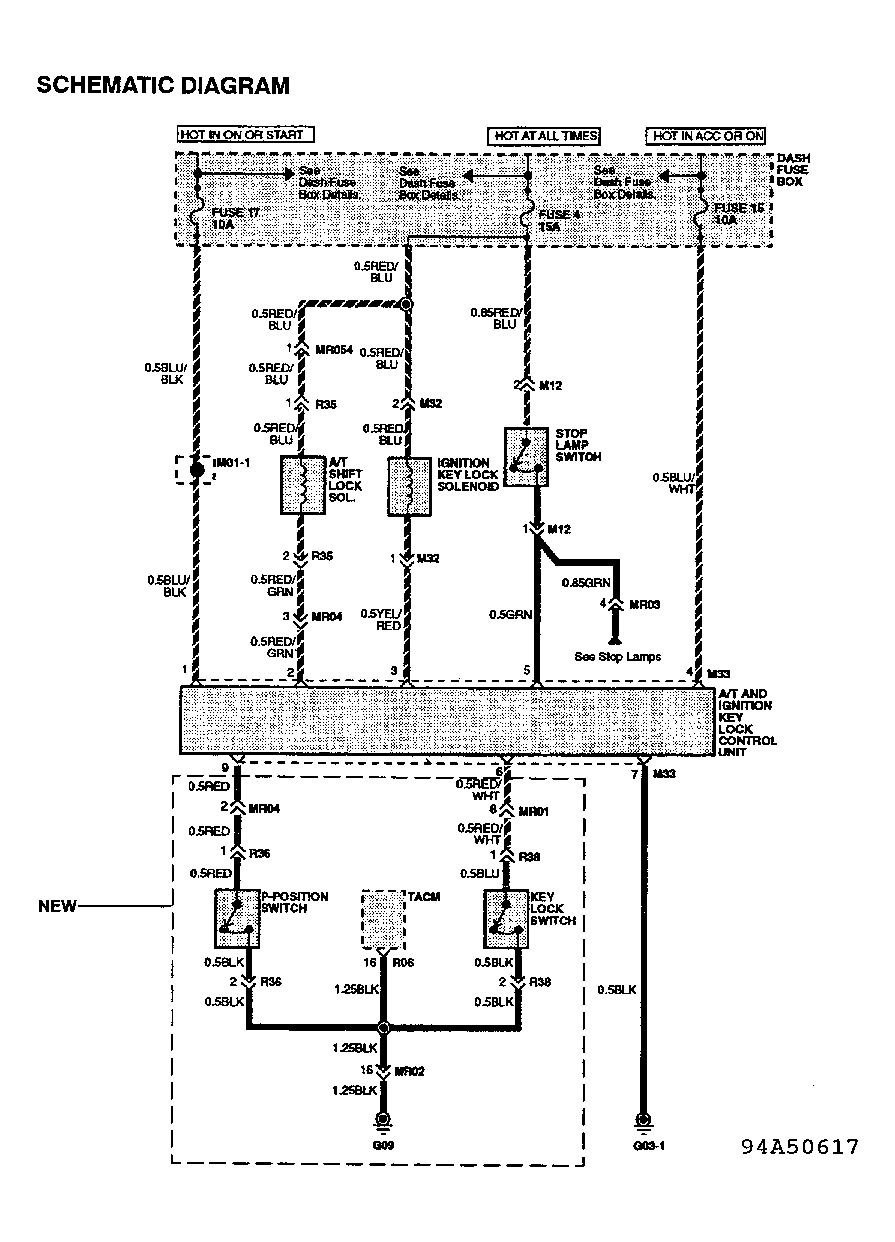

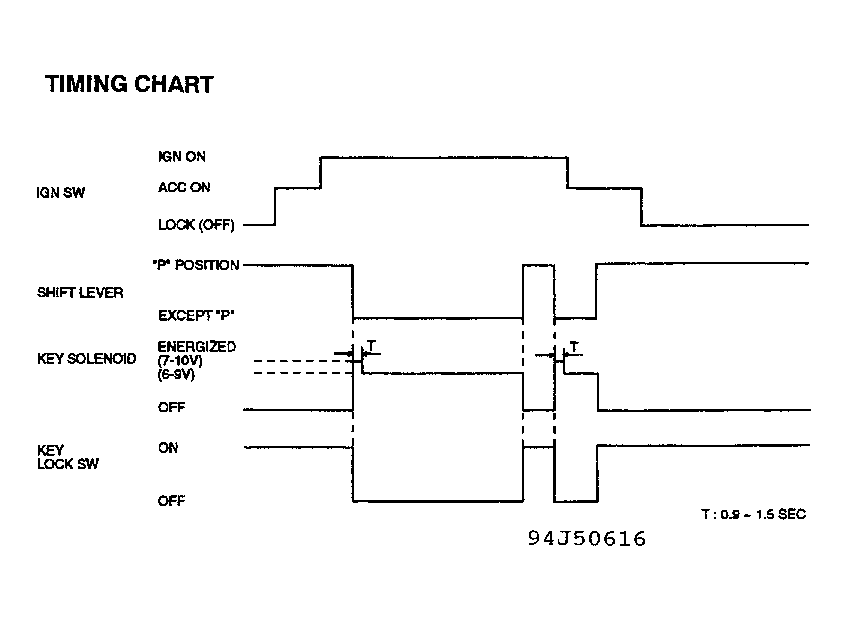

A new key lock switch (micro switch) has been added to the existing PARK position switch as described below. The ignition key will be released only when the key lock solenoid is "OFF" and the ignition key lock switch is "ON."
PART INFORMATION
| Part Description | Previous P/N | New P/N | Remark | ITC |
|---|---|---|---|---|
| Lock & Release Lever | 43742-24710 | 43742-24711 | --- | N |
| Gear Shift Lever | 43720-24747 | 43720-24755 | --- | N |
| Shift Lever Bracket | 43736-24706 | 43736-24715 | --- | N |
| Machine (Washer) | 12310-04121 | 12310-04081 | --- | N |
| Key Lock Switch | --- | 95761-33000 | --- | --- |
| A/T & Key Lock Control Module | 95850-24003 | 95850-24004 | --- | N |
| Main Wiring | 91101-24001 | 91101-24002 | --- | A |
| Floor Wiring | 91501-24350 | 91501-24351 | Federal Spec 4-dr. model | A |
| Floor Wiring | 91501-24380 | 91501-24581 | Federal Spec 3-dr. model | A |
| Floor Wiring | 91503-24350 | 91503-24351 | Calif. Spec. 3-dr. model | A |
| Floor Wiring | 91503-24580 | 91503-24581 | Calif. Spec. 3-dr. model | A |
EFFECTIVE PRODUCTION DATE
| Date | VIN |
|---|---|
| April 12, 1993 | VD12JP1U248505 (3-Door) VF12JOPU786814 (4-Door) |
INTERCHANGEABILITY
- Wiring: Code A, Current ---x----> New Current <-------- New
- A/T Control Lever, Module: Code N, Current <---x----> New
