Testing Armature For Short Circuit

  1. Place armature in a growler.

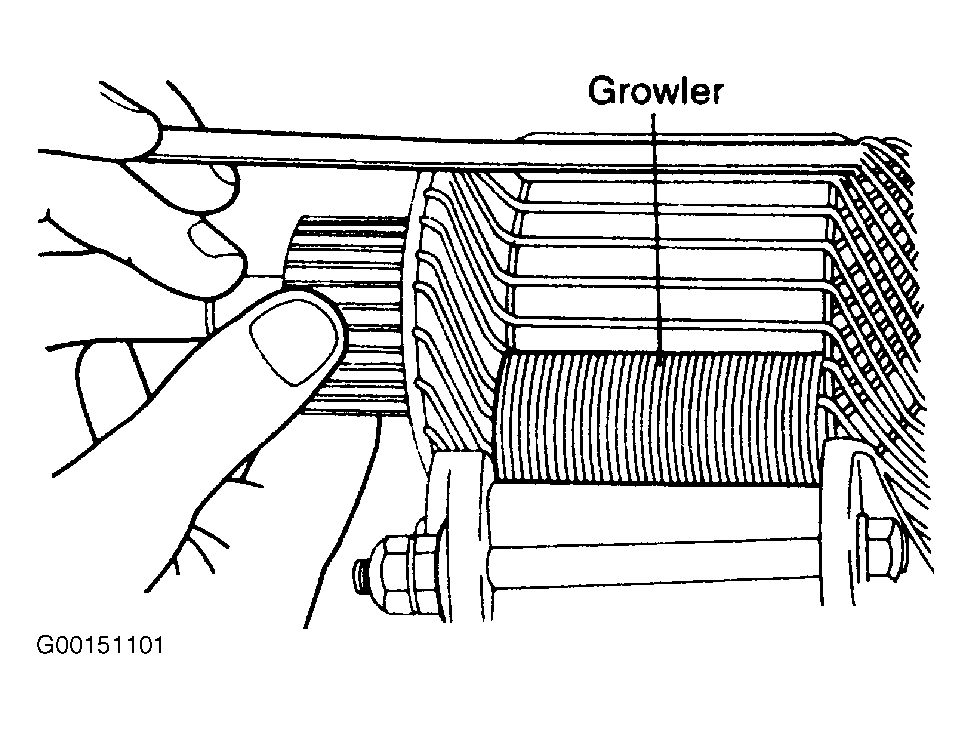

  2. Hold a thin steel blade parallel and just above while rotating armature slowly in growler. See Fig 1 . A shortened armature will cause blade to vibrate and be attracted to core. Replace shortened armature.
Fig 1: Testing Armature For Short Circuit
G00151101Courtesy of HYUNDAI MOTOR CO.
