Radio/Navigation System Schematics

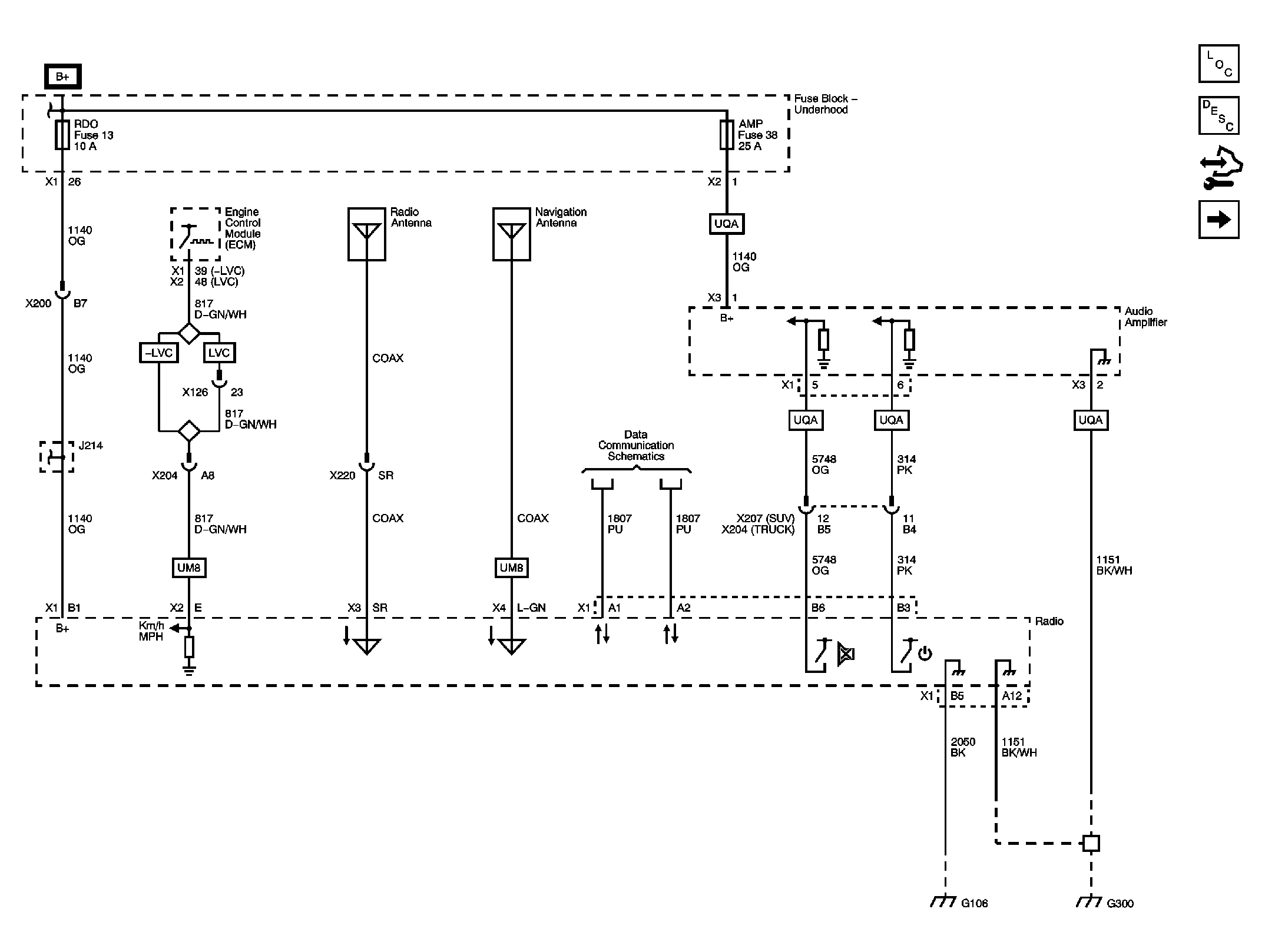

Fig 1: Power, Ground, and Serial Data

Courtesy of GENERAL MOTORS CORP.

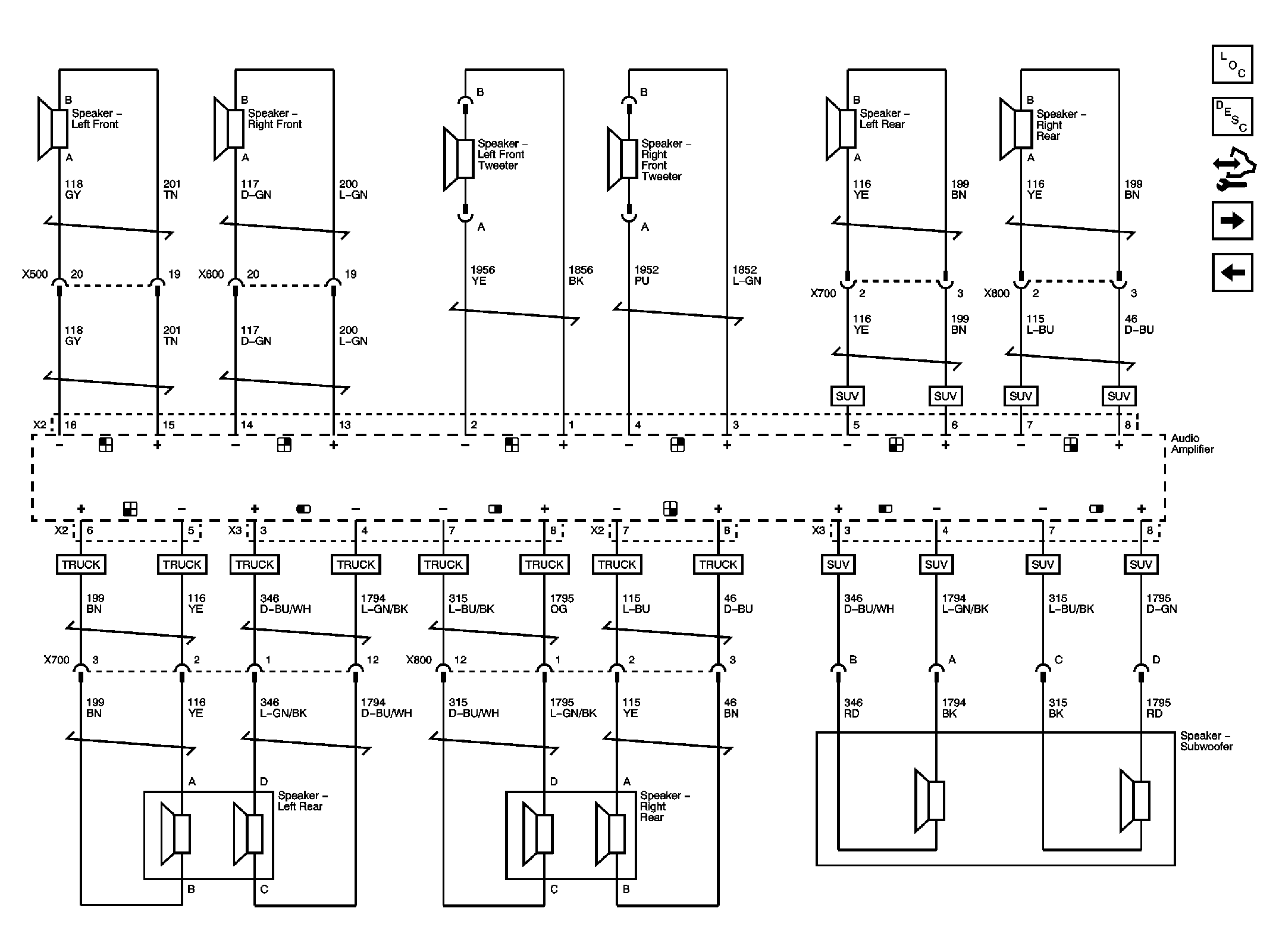

Fig 2: Speakers (UQ3)

Courtesy of GENERAL MOTORS CORP.

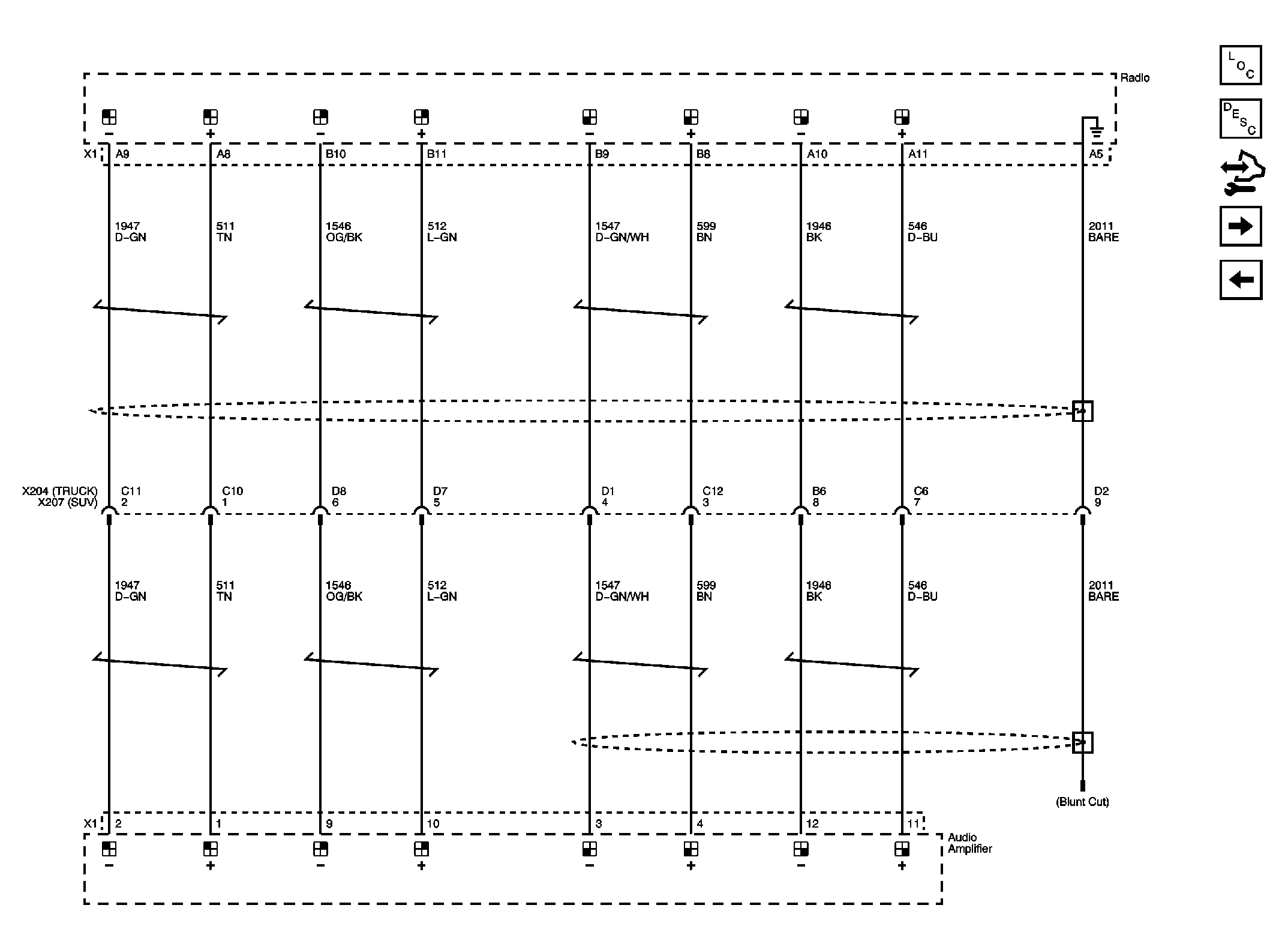

Fig 3: Amplifier Inputs (UQA)

Courtesy of GENERAL MOTORS CORP.

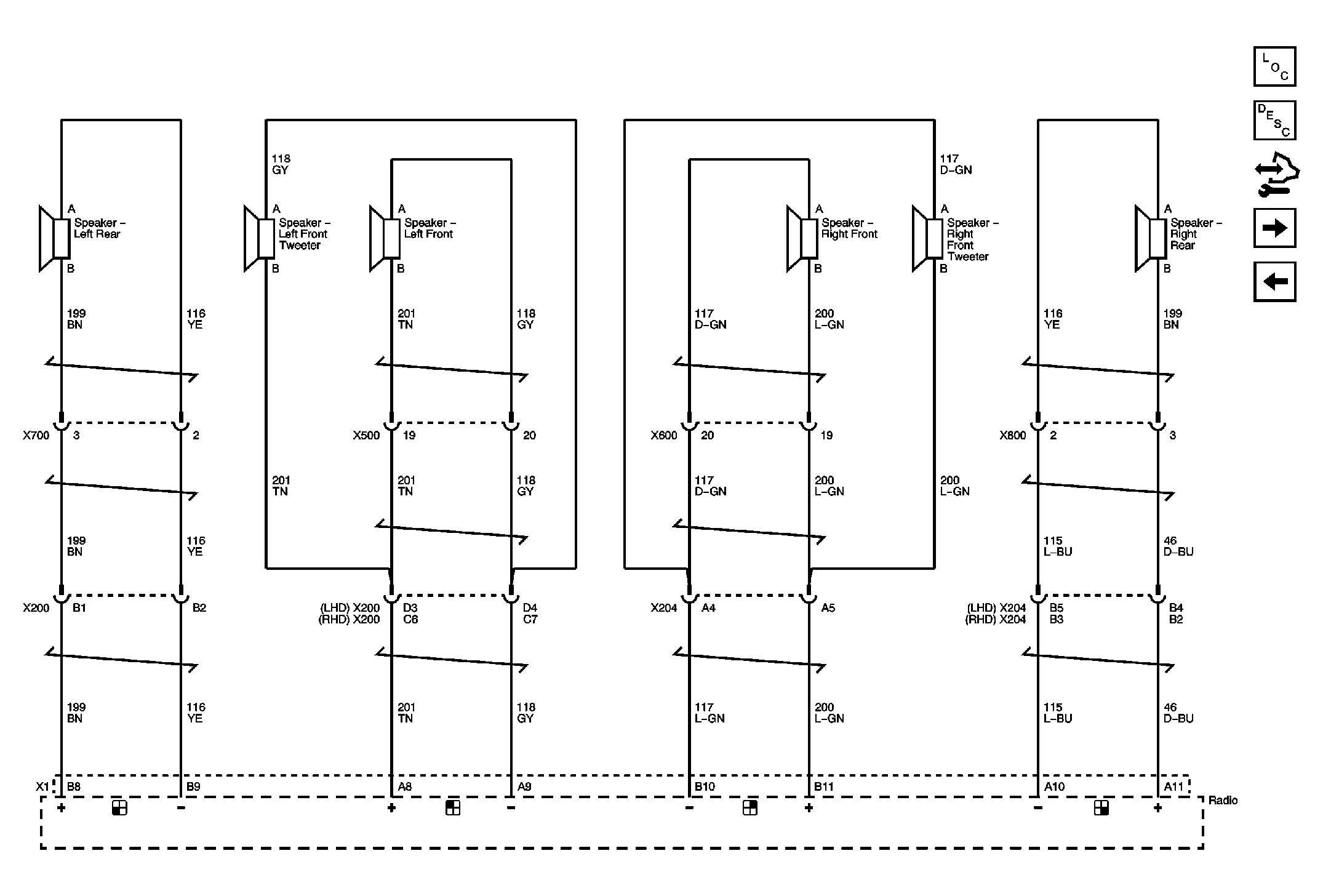

Fig 4: Speakers (UQA)

Courtesy of GENERAL MOTORS CORP.

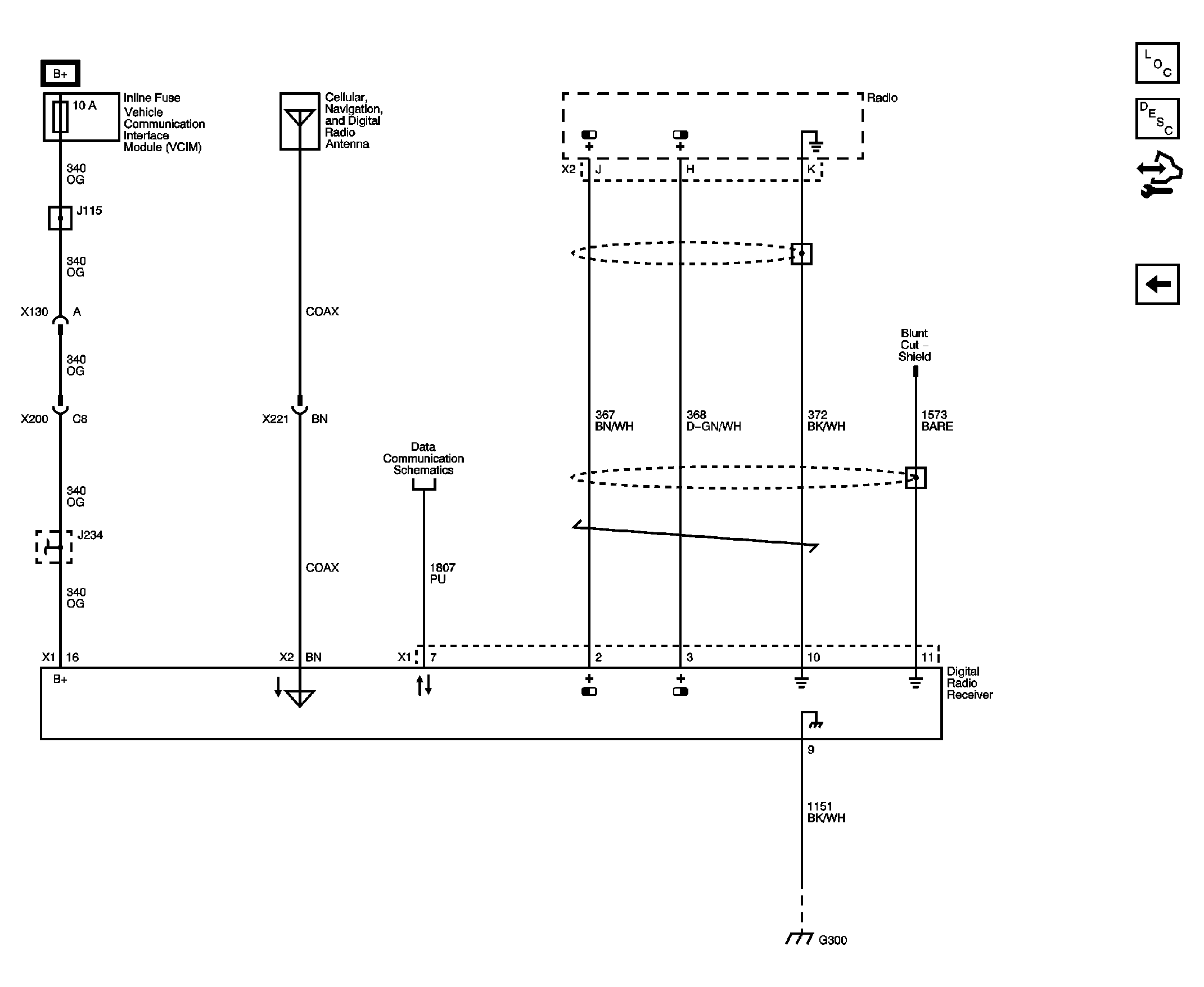

Fig 5: Digital Radio Receiver (U2K)

Courtesy of GENERAL MOTORS CORP.
