Evaporator Temperature Sensor

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

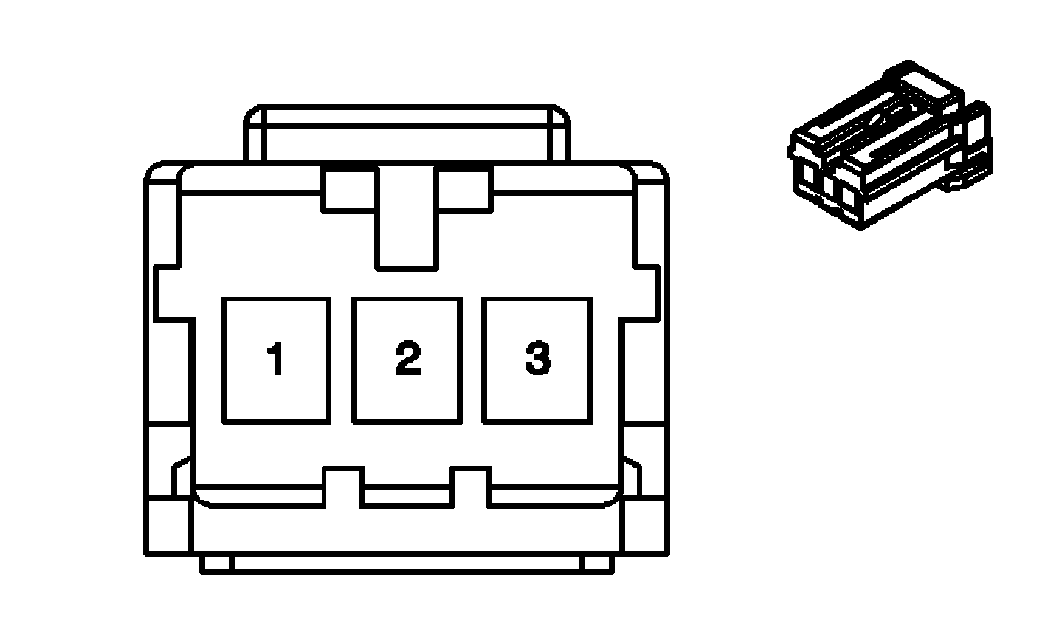

Fig 1: Evaporator Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 L-GN	66	A/C Request Signal
2	0.35 D-GN/WH	762	A/C Request Signal
3	0.35 BK	2050	Ground

Connector Part Information

Harness: HVAC
OEM: 15368694
Service: 88953272
Description: 3-Way F Metri-Pack 150 Series (WH)

Terminal Part Information

Terminal/Tray: 173630-7/7
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-33 (YE)
