Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

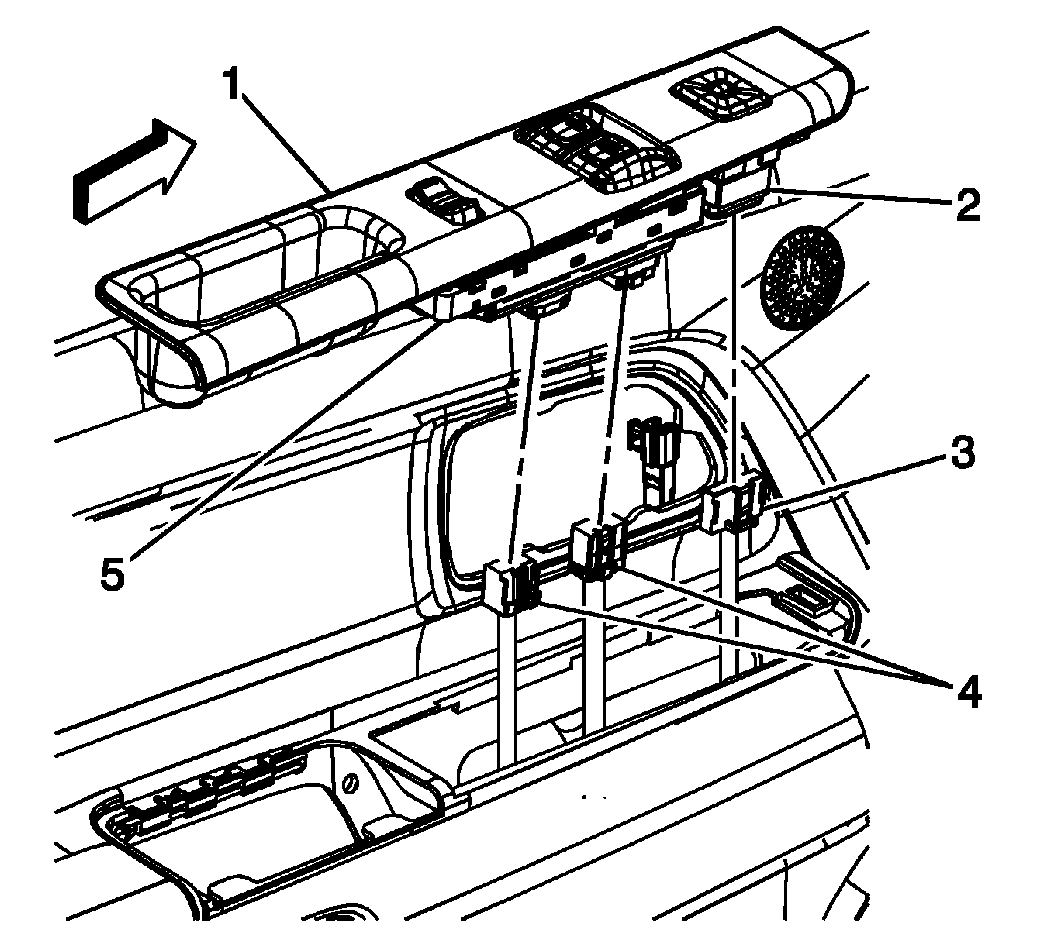

    Fig 1: View Of Switch Plate Assembly & Components
    GM1276817Courtesy of GENERAL MOTORS CORP.
  1. Install the switches (2, 5) to the switch plate (1).
  2. Connect the electrical connectors (3, 4) to the switches (2, 5).

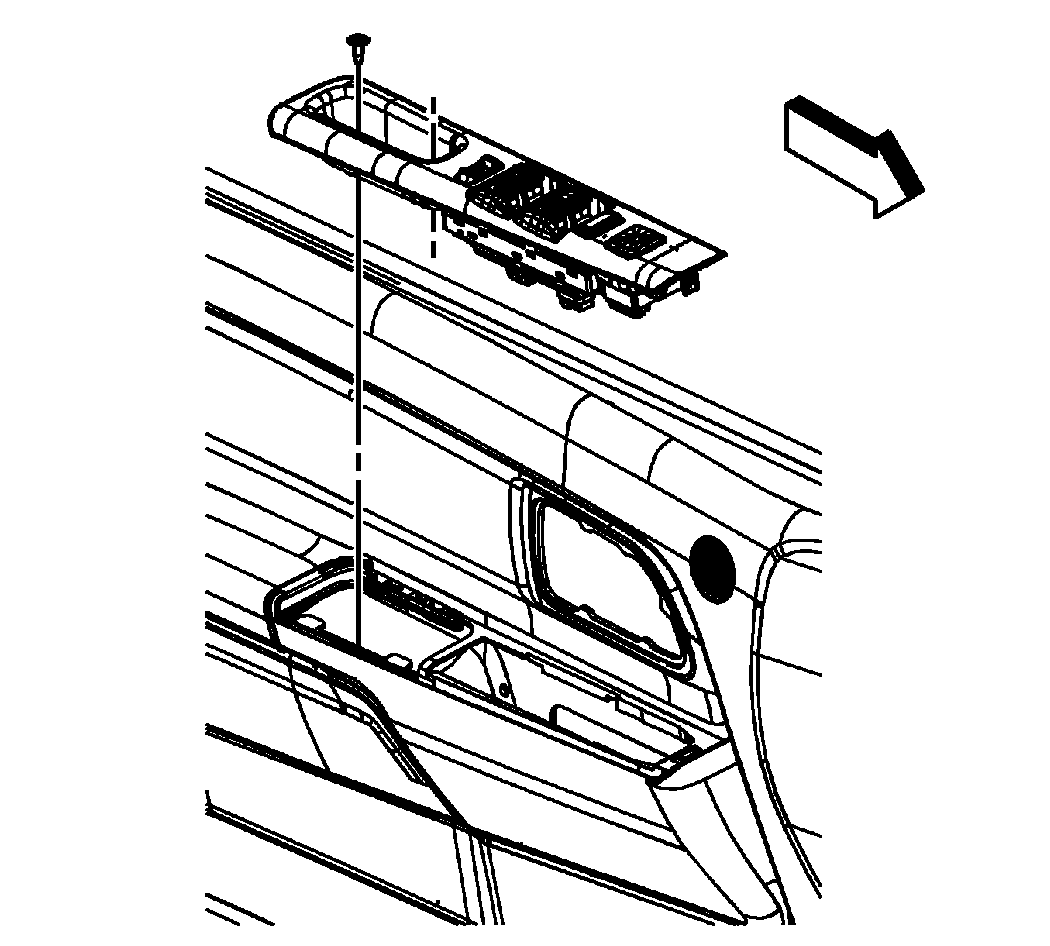

    3. Fig 2: View Of Switch Plate
    GM1276818Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the switch plate assembly to the door trim panel with the 2 screws and tighten to 2 N.m (18 lb in).
