Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

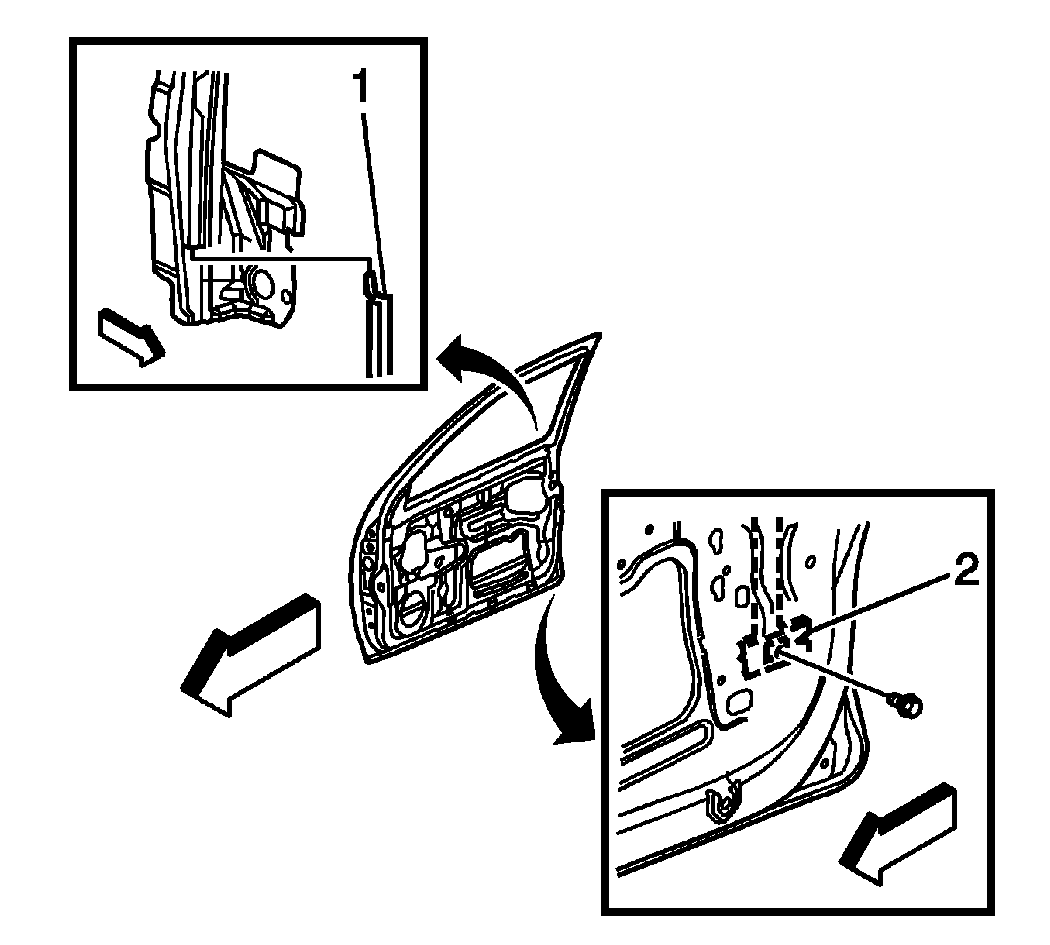

    Fig 1: View Of Upper Window Run Channel Tab & Window Run Channel Retaining Bolt
    GM1257633Courtesy of GENERAL MOTORS CORP.
  1. Install the front door window run channel into the front door.
  2. Install the upper window run channel tab (1) into the front door window frame.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the bolt retaining the bottom of the window run channel (2) to the door inner panel. Tighten the front window run channel bolt to 9 N.m (80 lb in).
  4. Install the front door window weatherstrip to the window run channel. Refer to Front Side Door Window Weatherstrip Replacement .
  5. Install the front door water deflector. Refer to Front Side Door Water Deflector Replacement .
  6. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
