Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Canyon and 2010 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

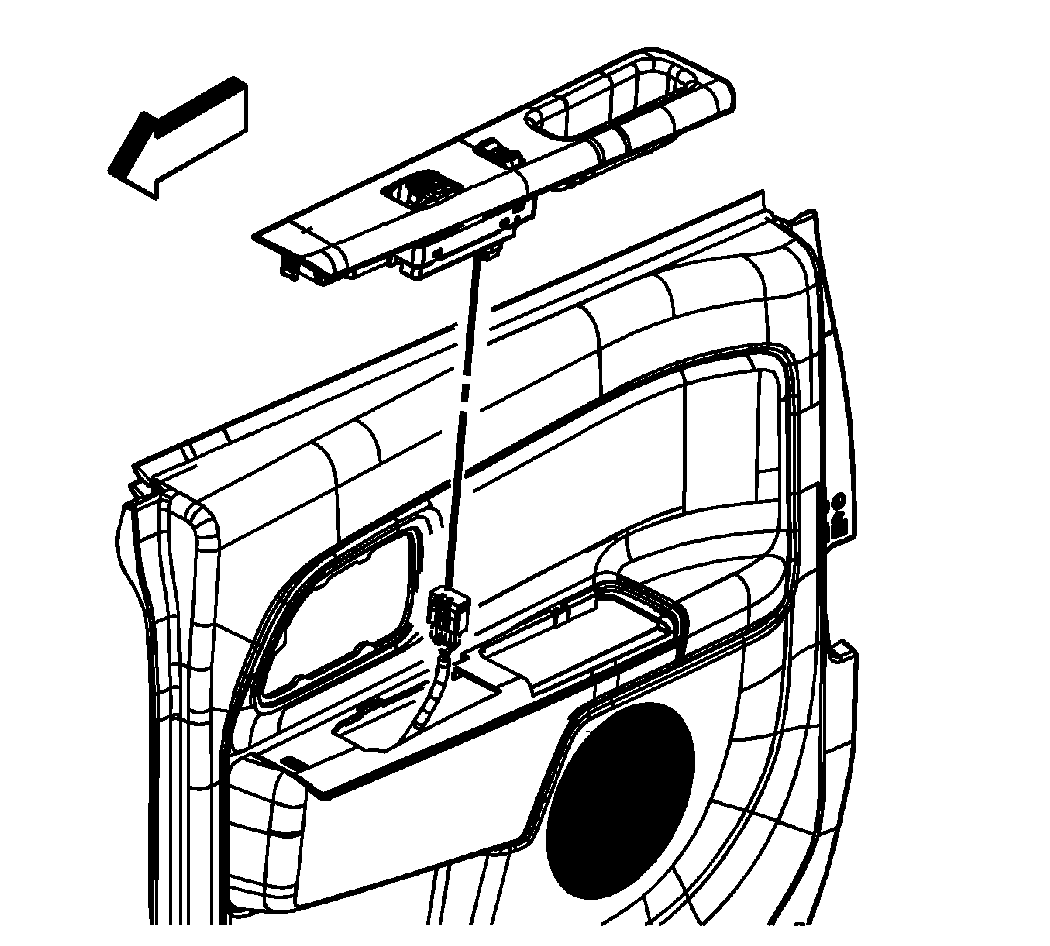

    Fig 1: View Of Switch Plate Assembly - Rear
    GM1276821Courtesy of GENERAL MOTORS CORP.
  1. Install the switch module to the switch plate.
  2. Connect the electrical connector to the switch module.

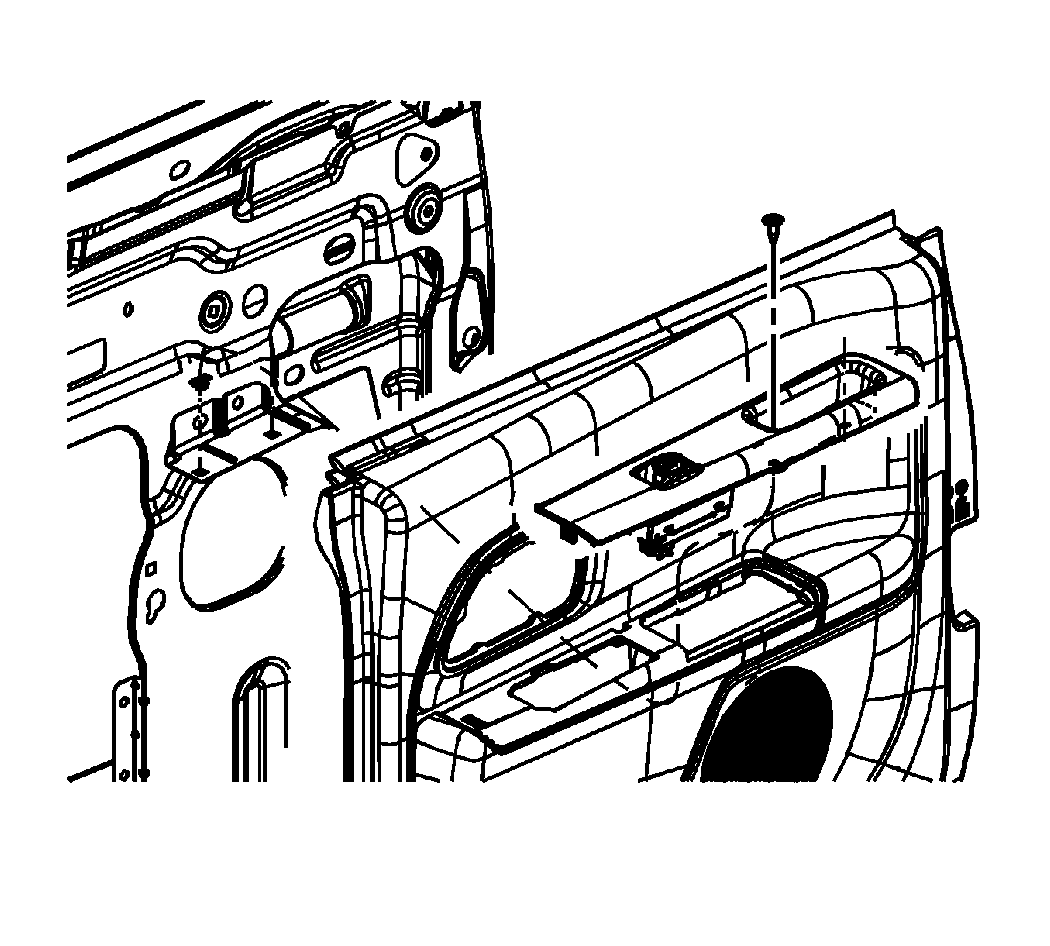

    3. Fig 2: View Of Switch Plate Assembly Retaining Screws
    GM1276822Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the rear switch plate assembly to the door trim panel with the 2 screws and tighten to 2 N.m (18 lb in).
