Rear Seat Buckle Side Belt Replacement

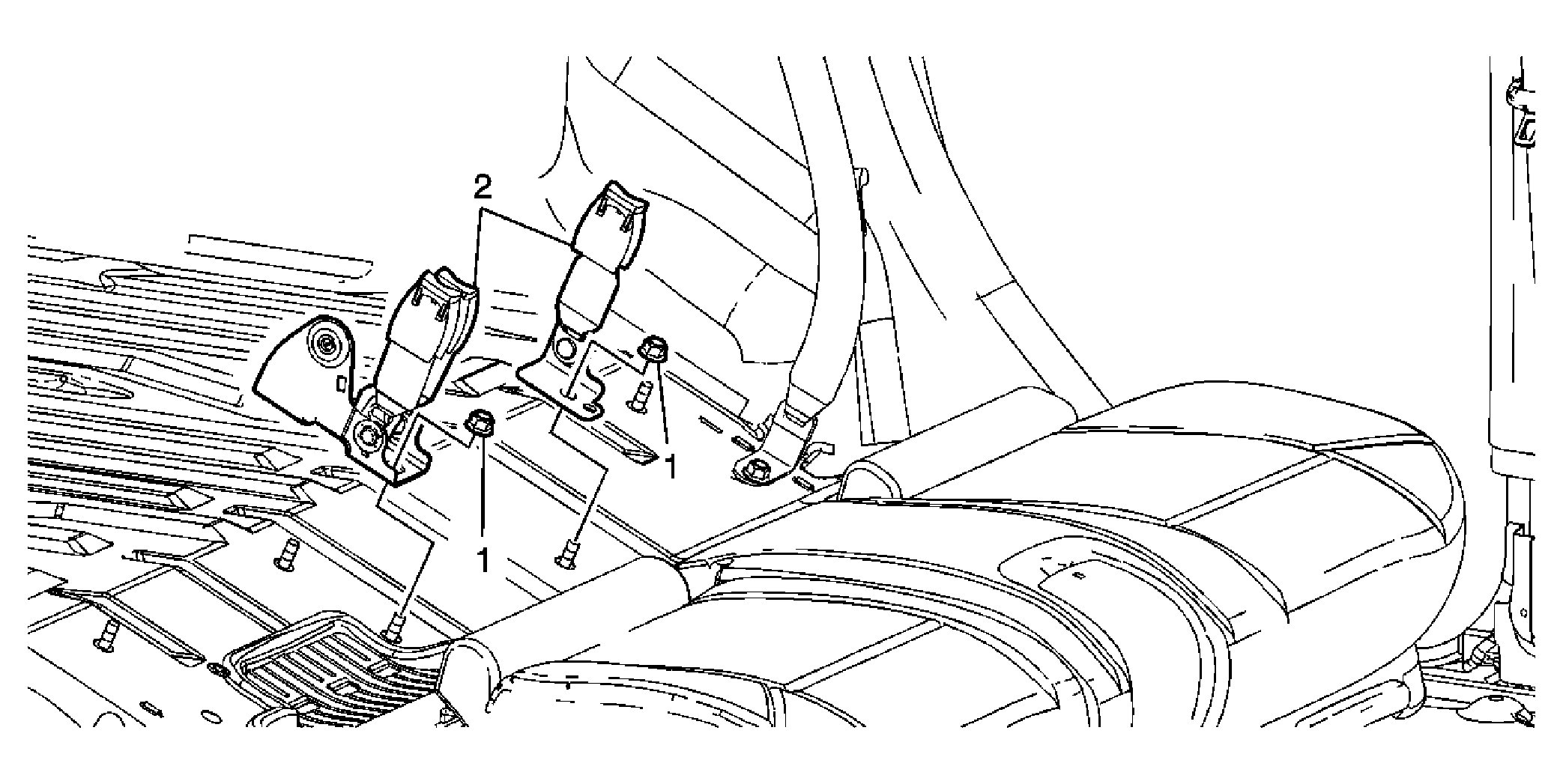

Fig 1: Seat Belt Buckle Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the rear seat back. Refer to Rear Seat Back Cushion Replacement .
1	Rear Seat Center Belt Assembly Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  52 N.m (38 lb ft)
2	Rear Seat Center Belt Assembly
