Installation Procedure

Fig 1: Locating EVAP Lines & Clips At Manual Transmission

Courtesy of GENERAL MOTORS CORP.

Install the EVAP line to the clips.
If equipped with a manual transmission, close the retaining clips attaching the lines to the transmission.

Fig 2: Locating EVAP Lines & Clips At Automatic Transmission

Courtesy of GENERAL MOTORS CORP.

Install the EVAP line to the clips.
If equipped with an automatic transmission, close the retaining clips attaching the lines to the transmission.

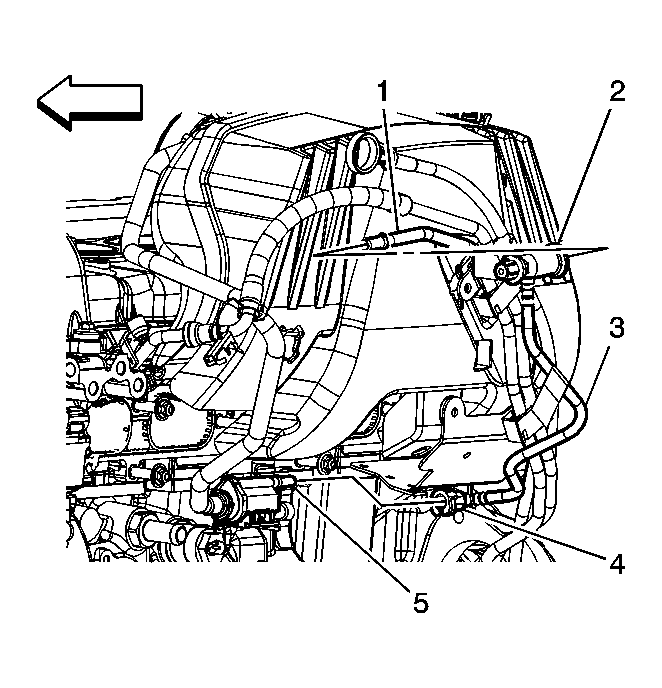

Fig 3: Locating Evaporative Emission (EVAP) Canister Purge Solenoid Valve

Courtesy of GENERAL MOTORS CORP.

Connect the EVAP line to the chassis EVAP line. Refer to Plastic Collar Quick Connect Fitting Service .
Lower the vehicle.
Install the EVAP line to the clips.
Close the retaining clips.
Connect the EVAP line quick connect (2) to the EVAP line (1). Refer to Plastic Collar Quick Connect Fitting Service .
