Installation Procedure

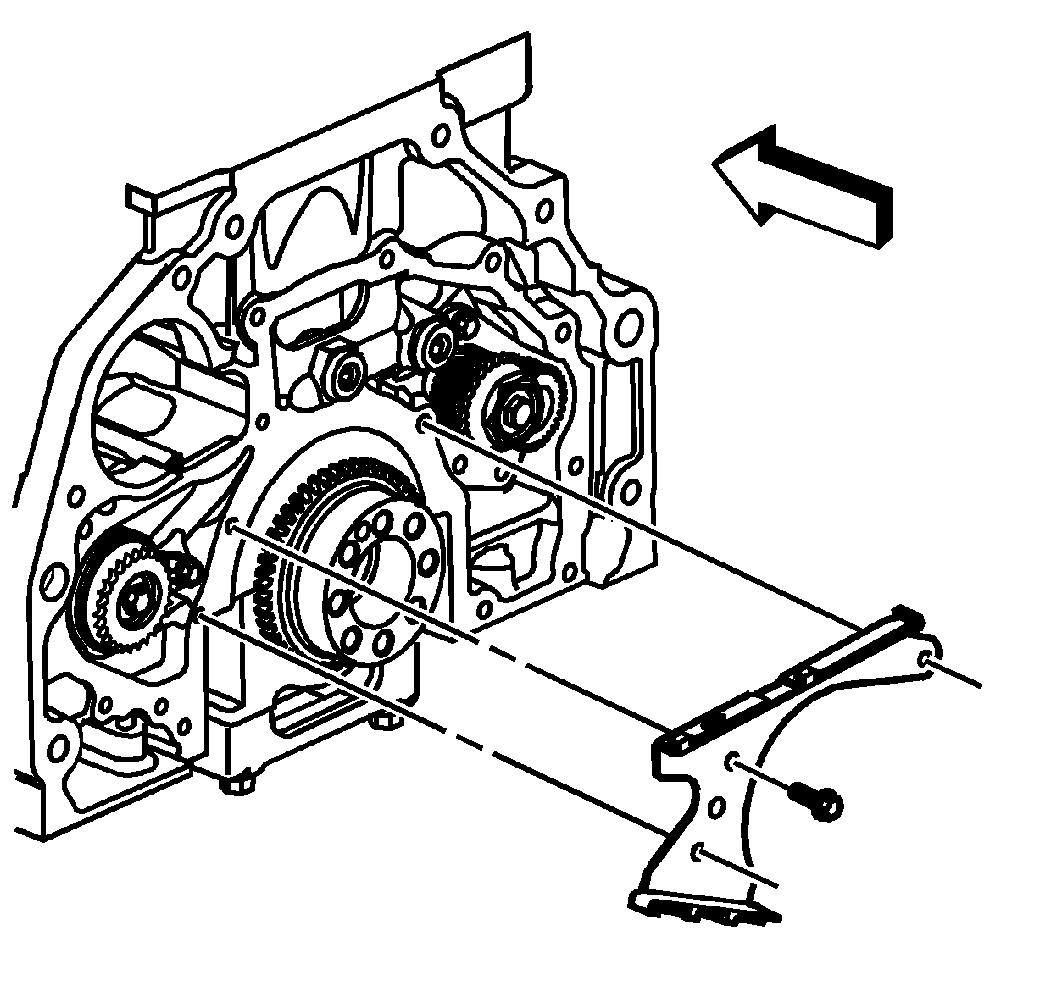

    Fig 1: View Of Balance Shaft Chain Guide
    GM954003Courtesy of GENERAL MOTORS CORP.
  1. Install the balance shaft chain guide.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the balance shaft chain guide bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  3. Install the balance shaft drive chain. Refer to Balance Chain Replacement .
