Assist Step Replacement (Side Step)

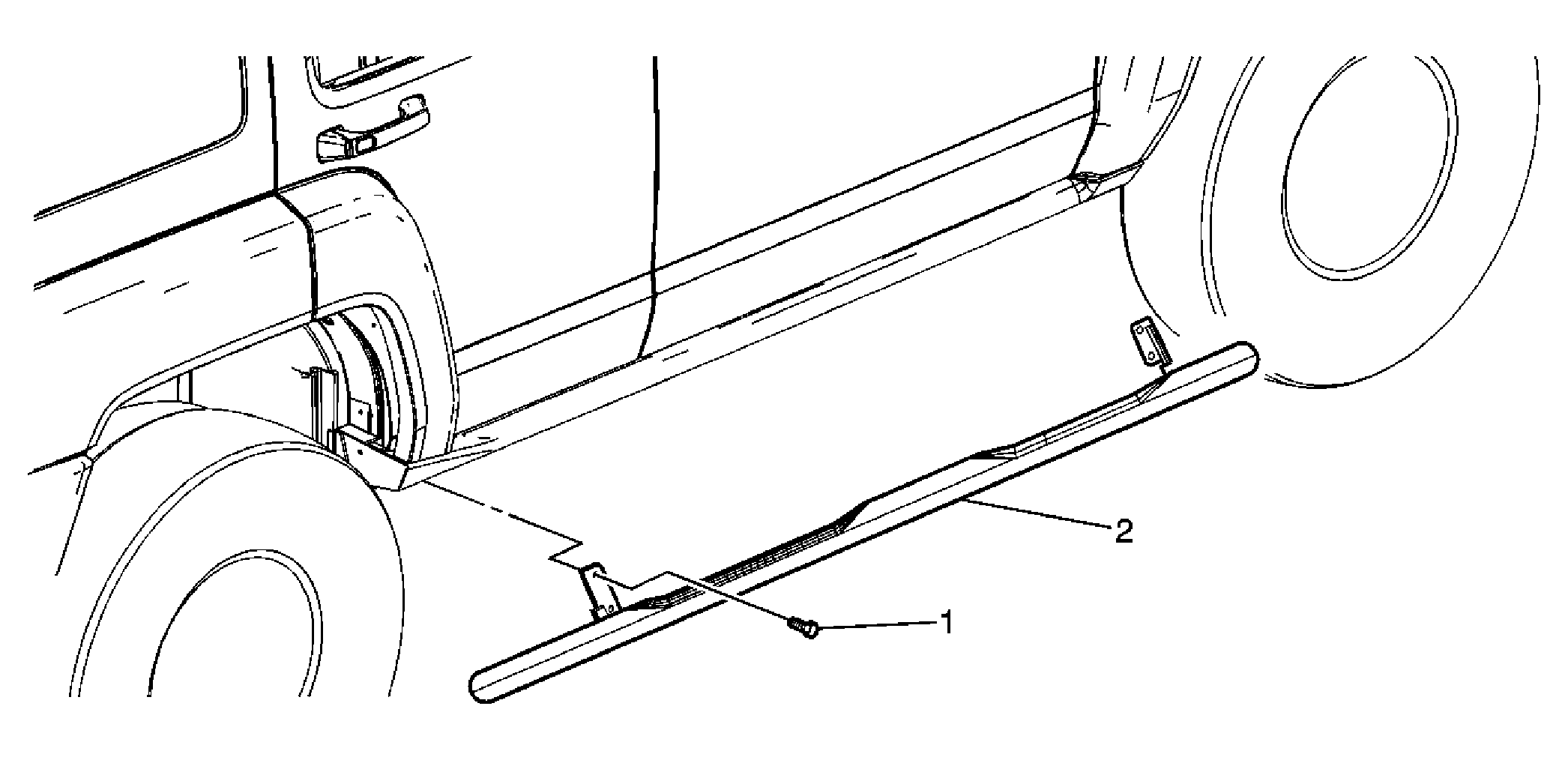

Fig 1: Assist Step Replacement (Side Step)
GM1629124Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Side Step Bolts (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  50 N.m (37 lb in)
2 Side Step
