Windshield Washer Solvent Container Replacement

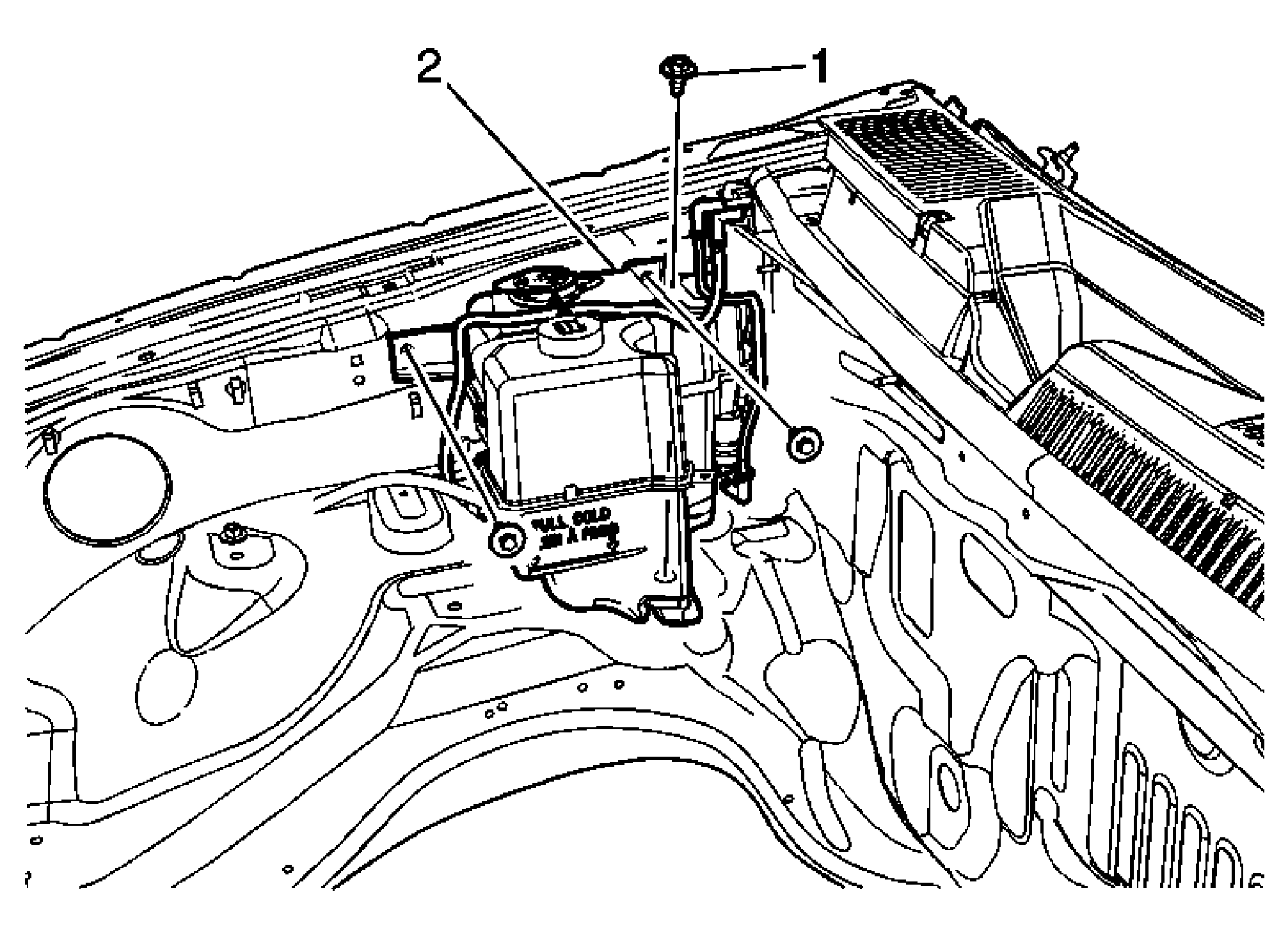

Fig 1: Windshield Washer Solvent Container Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1	Windshield Washer Solvent Container Assembly Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Roll the container assembly forward. Disconnect both washer pump electrical connectors. Disconnect both washer pump jumper hoses at the air inlet grille panel connections, if equipped. Contain any lost washer solvent fluid in a clean suitable container. Disconnect and secure the coolant container overflow hose. Transfer all parts as needed. Tighten: 9 N.m (80 lb in)
2	Windshield Washer Solvent Container Assembly Tip: Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (Vac-N-Fill) for draining and filling the coolant system recovery container.

Callout

Component Name

Preliminary Procedure:
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .

Windshield Washer Solvent Container Assembly Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Procedure

Roll the container assembly forward.
Disconnect both washer pump electrical connectors.
Disconnect both washer pump jumper hoses at the air inlet grille panel connections, if equipped.
Contain any lost washer solvent fluid in a clean suitable container.
Disconnect and secure the coolant container overflow hose.
Transfer all parts as needed.

Tighten: 9 N.m (80 lb in)

Windshield Washer Solvent Container Assembly
Tip: Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (Vac-N-Fill) for draining and filling the coolant system recovery container.
