Auxiliary Blower Control Module Replacement

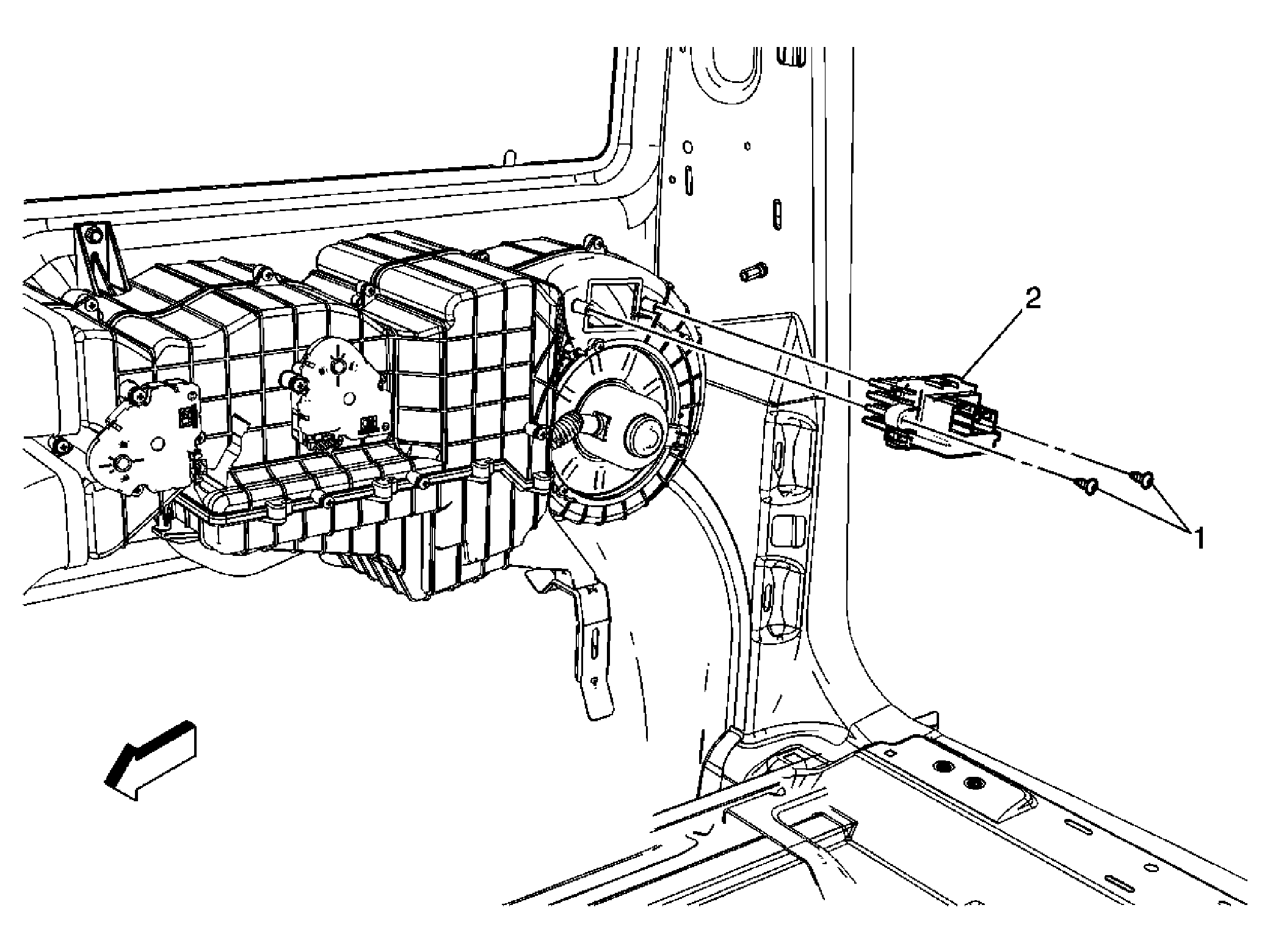

Fig 1: Identifying Auxiliary Blower Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the body side trim panel - right side. Refer to Body Side Trim Panel Replacement - Right Side . Disconnect any wiring connectors.
1	Auxiliary Blower Motor Control Module Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Auxiliary Blower Motor Control Module

Callout

Component Name

Preliminary Procedure

Remove the body side trim panel - right side. Refer to Body Side Trim Panel Replacement - Right Side .
Disconnect any wiring connectors.

Auxiliary Blower Motor Control Module Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Auxiliary Blower Motor Control Module
