Antilock Brake System Schematics

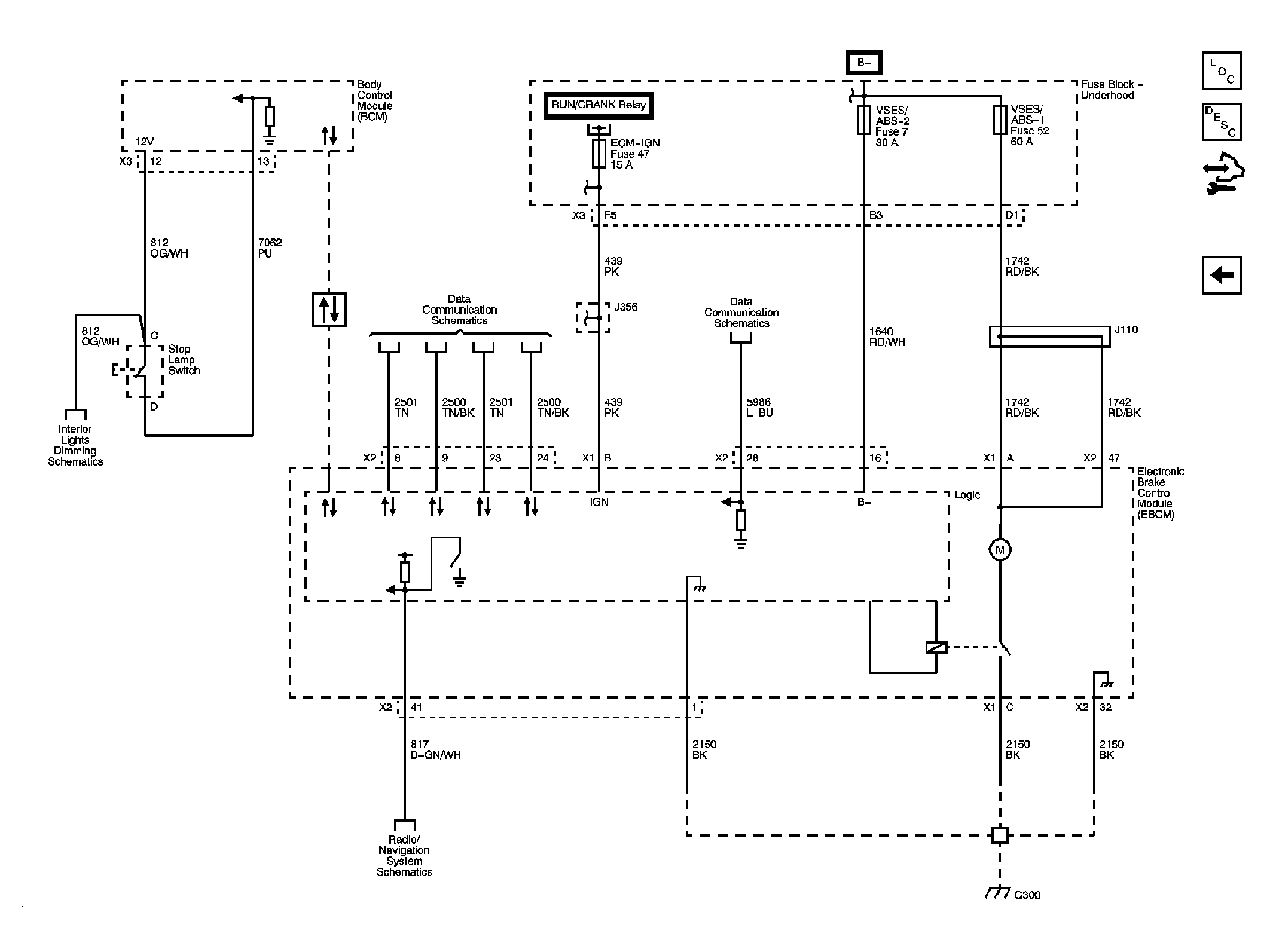

Fig 1: Module Power, Ground & Serial Data

GM2097160

Courtesy of GENERAL MOTORS CORP.

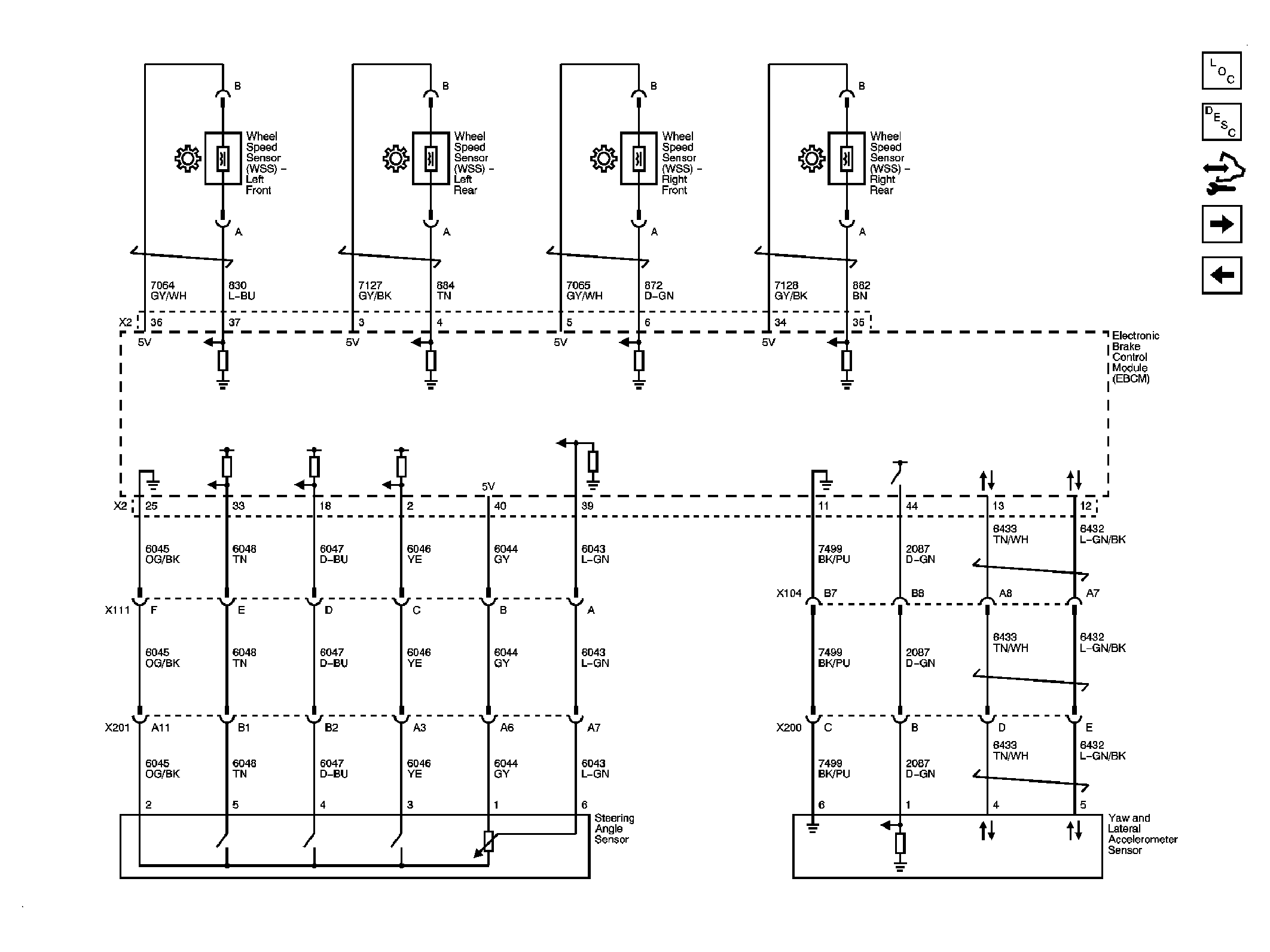

Fig 2: Sensors

GM2097161

Courtesy of GENERAL MOTORS CORP.
