Ground Distribution Schematics

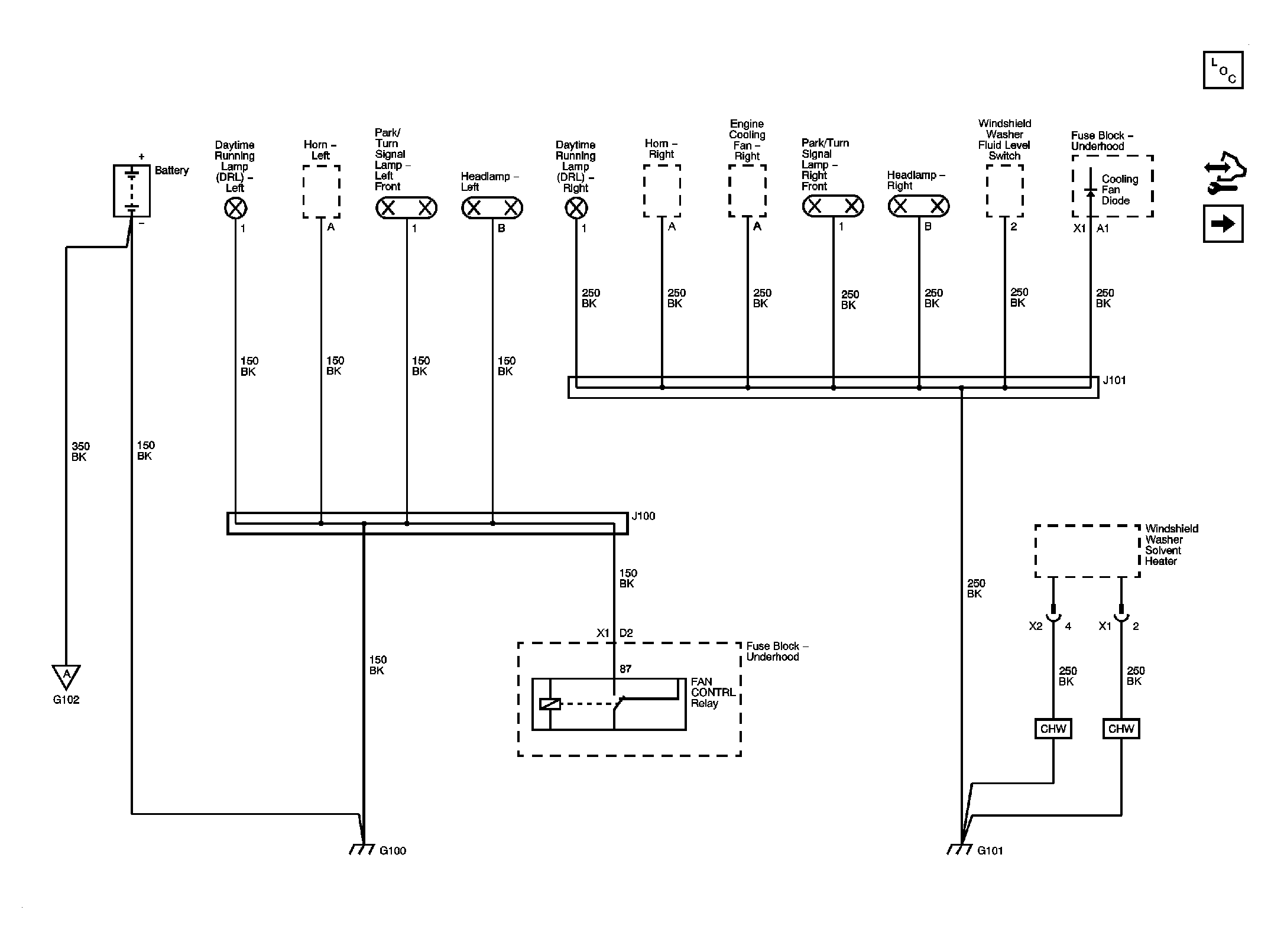

Fig 1: G100 & G101

GM2097237

Courtesy of GENERAL MOTORS CORP.

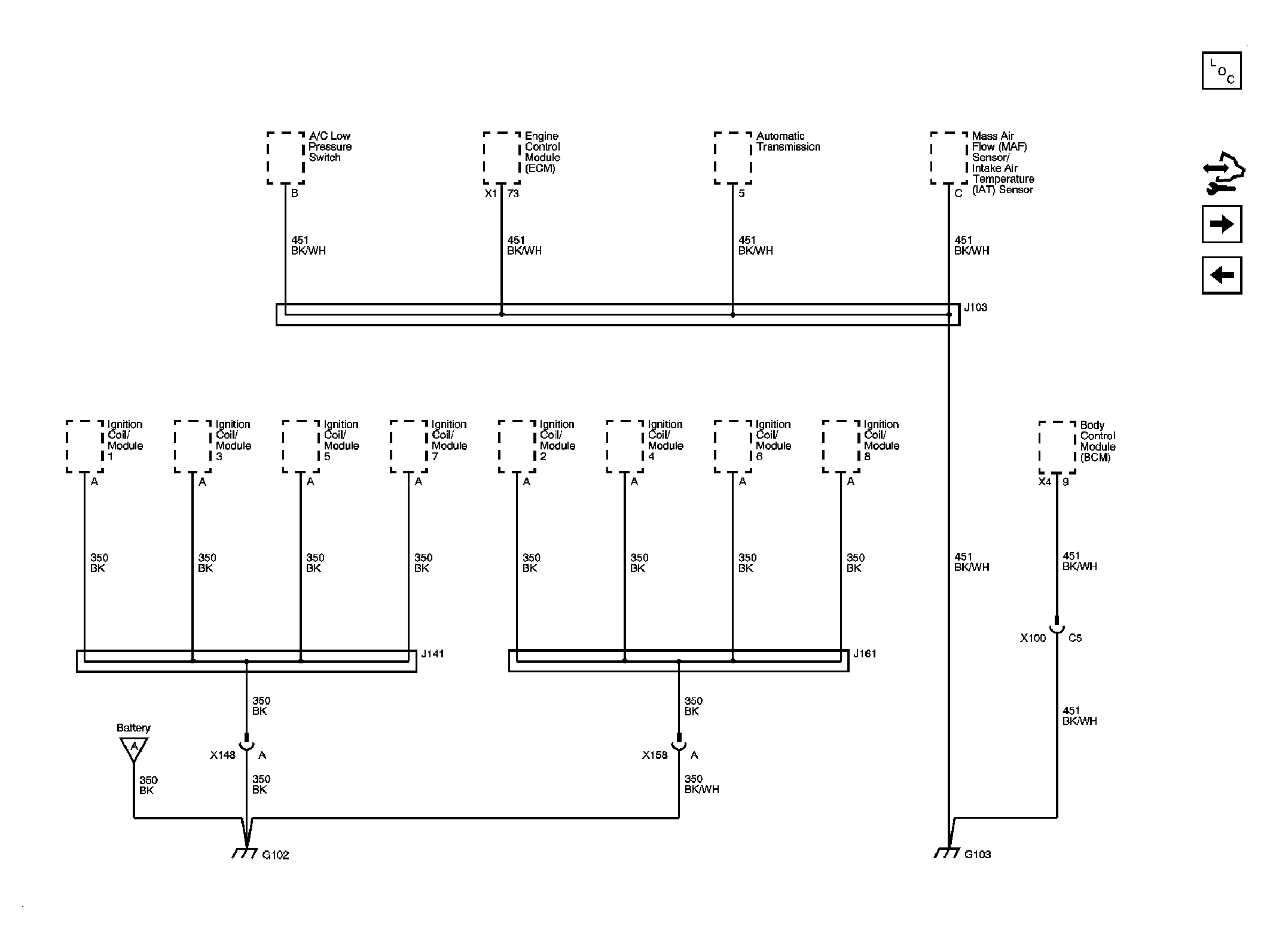

Fig 2: G102 & G103

GM2097238

Courtesy of GENERAL MOTORS CORP.

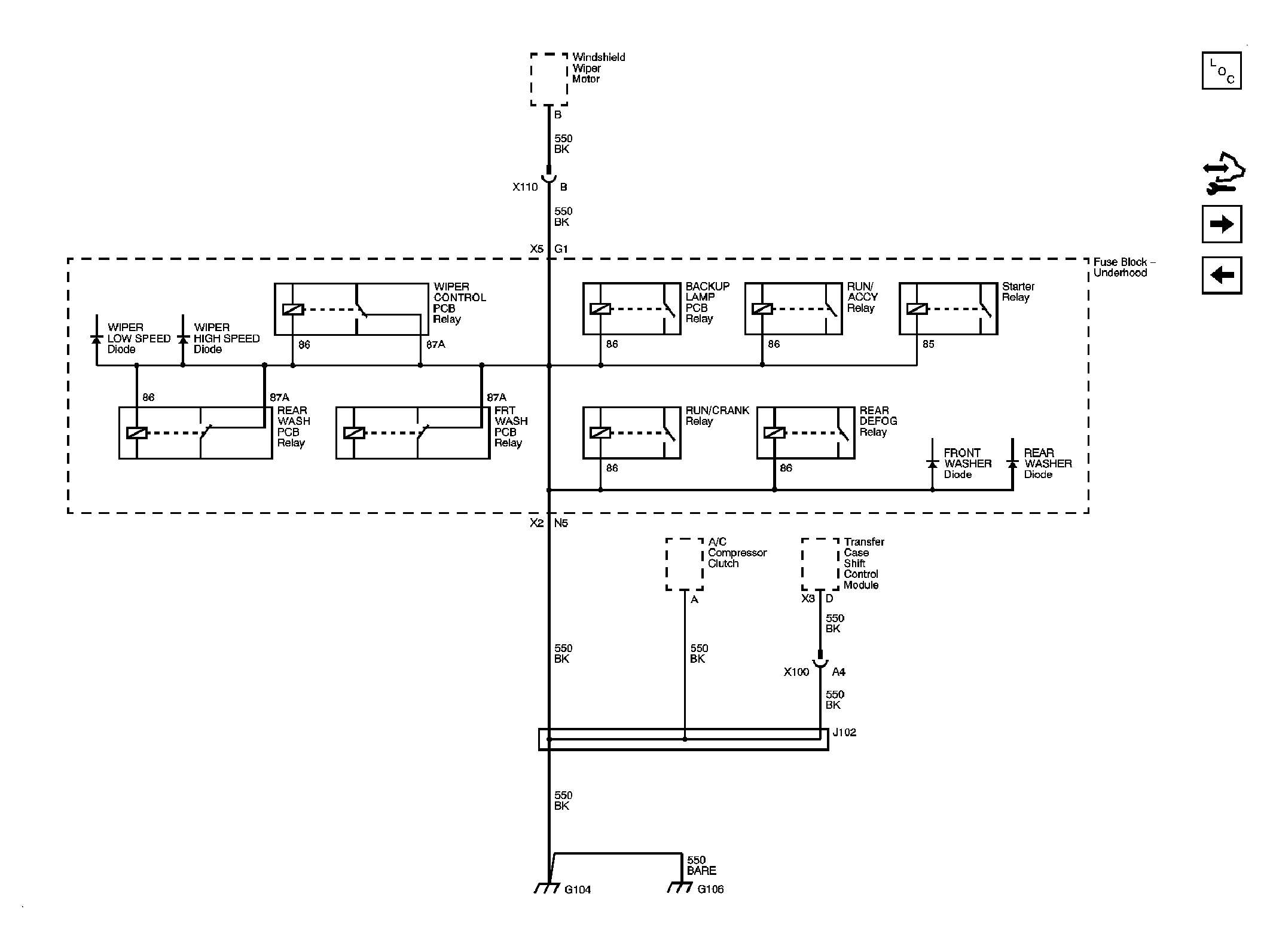

Fig 3: G104 & G106

GM2097239

Courtesy of GENERAL MOTORS CORP.

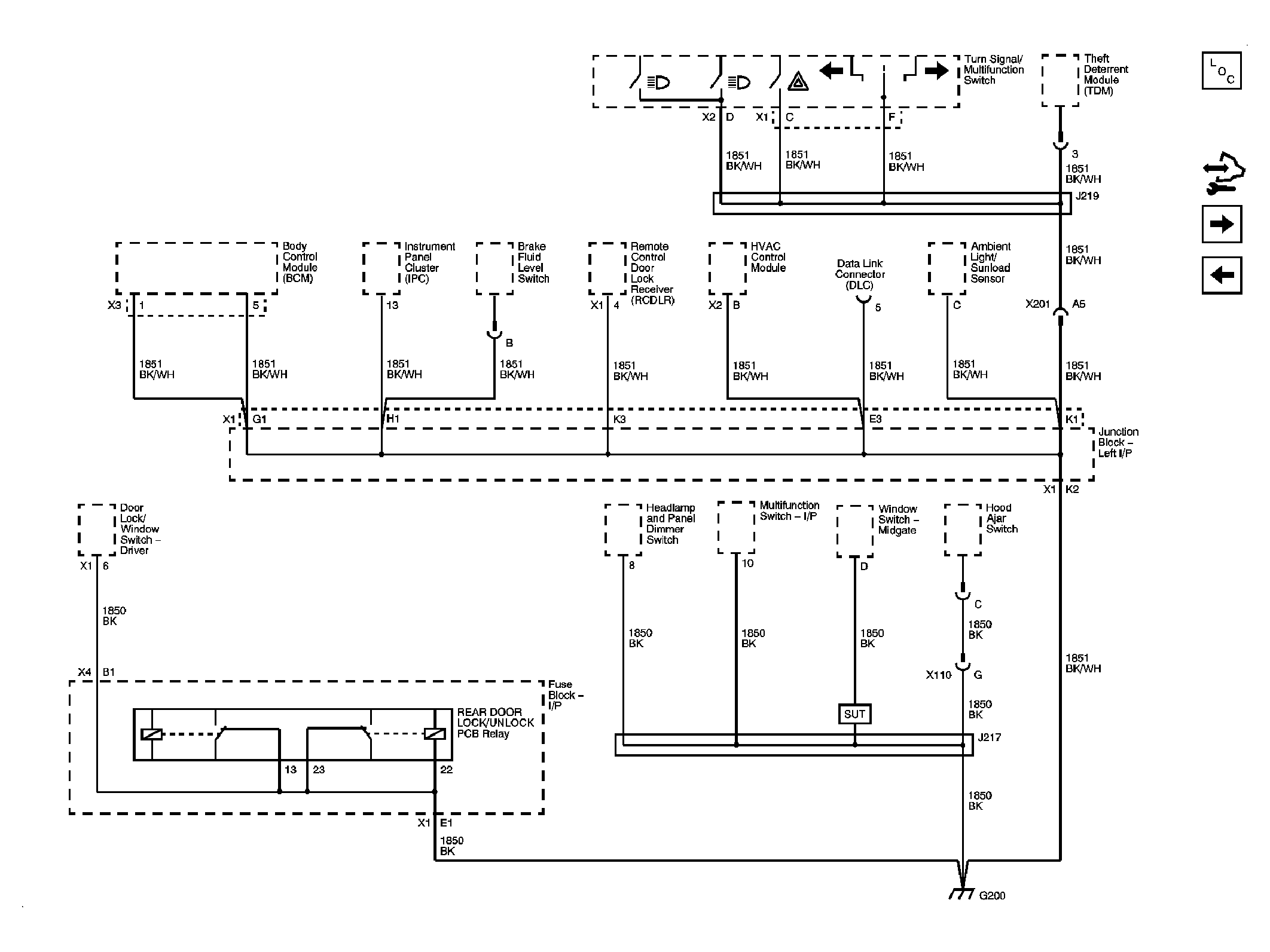

Fig 4: G200

GM2097240

Courtesy of GENERAL MOTORS CORP.

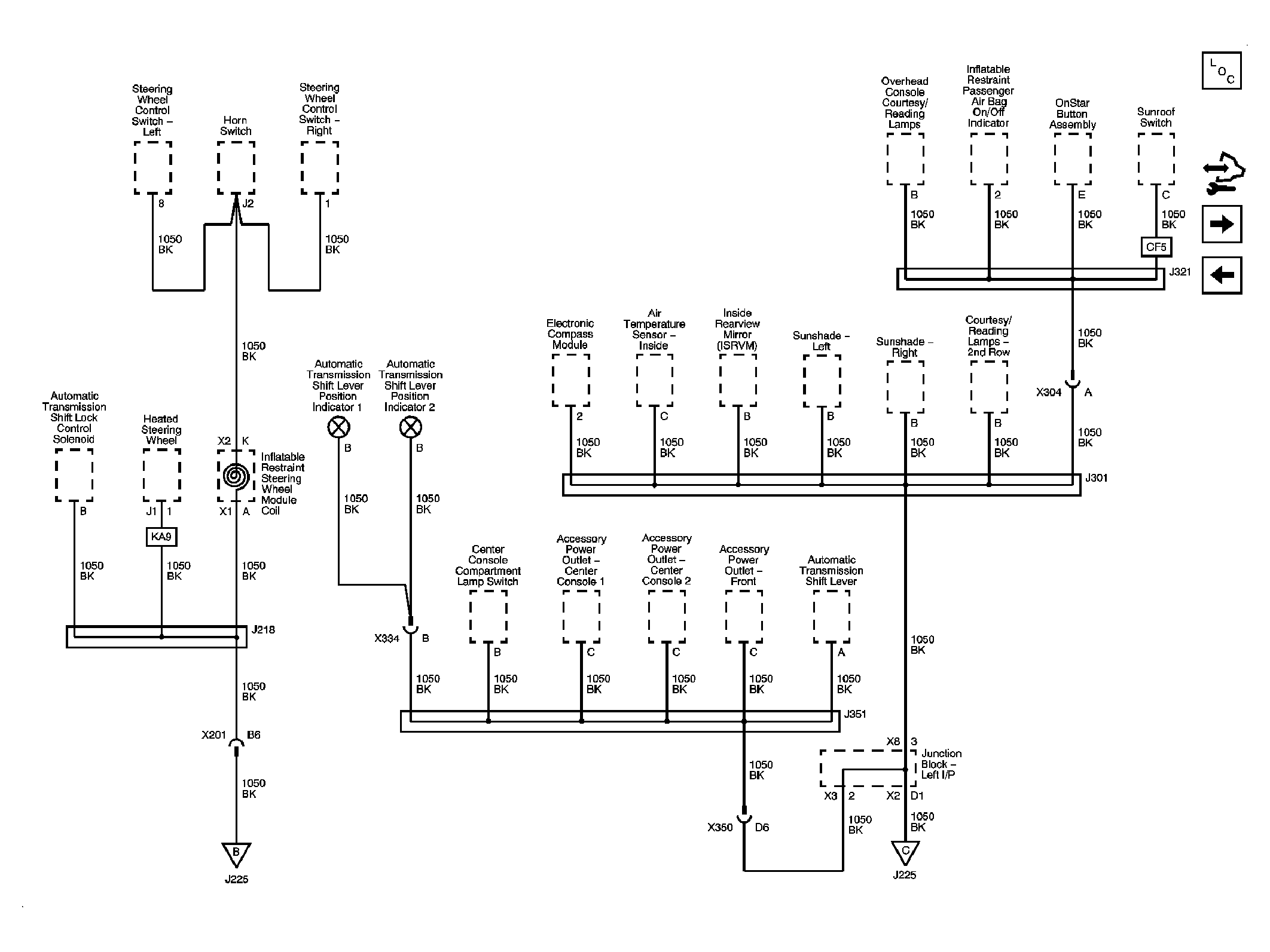

Fig 5: G203 - (1 of 2)

GM2097241

Courtesy of GENERAL MOTORS CORP.

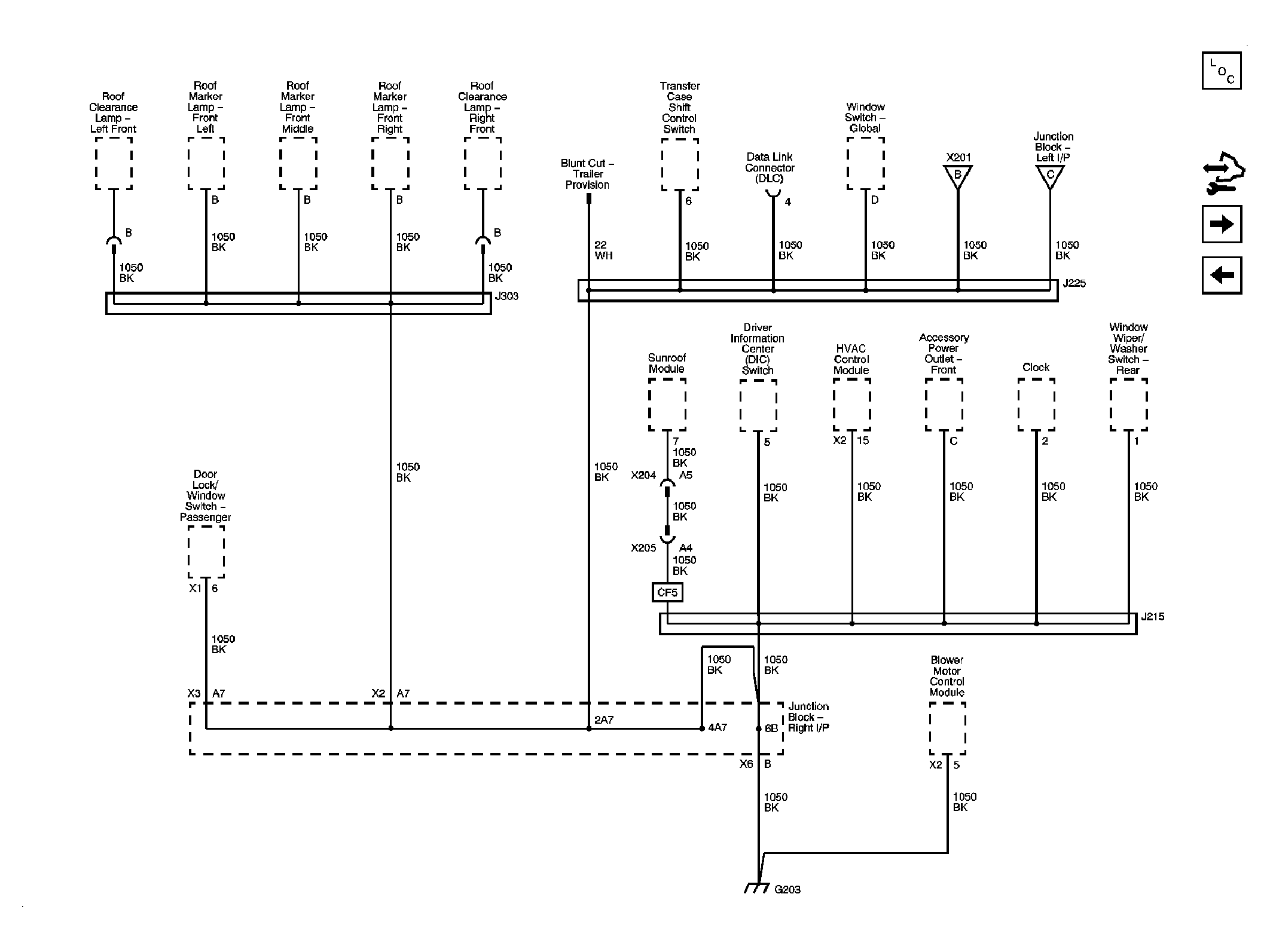

Fig 6: G203 - (2 of 2)

GM2097242

Courtesy of GENERAL MOTORS CORP.

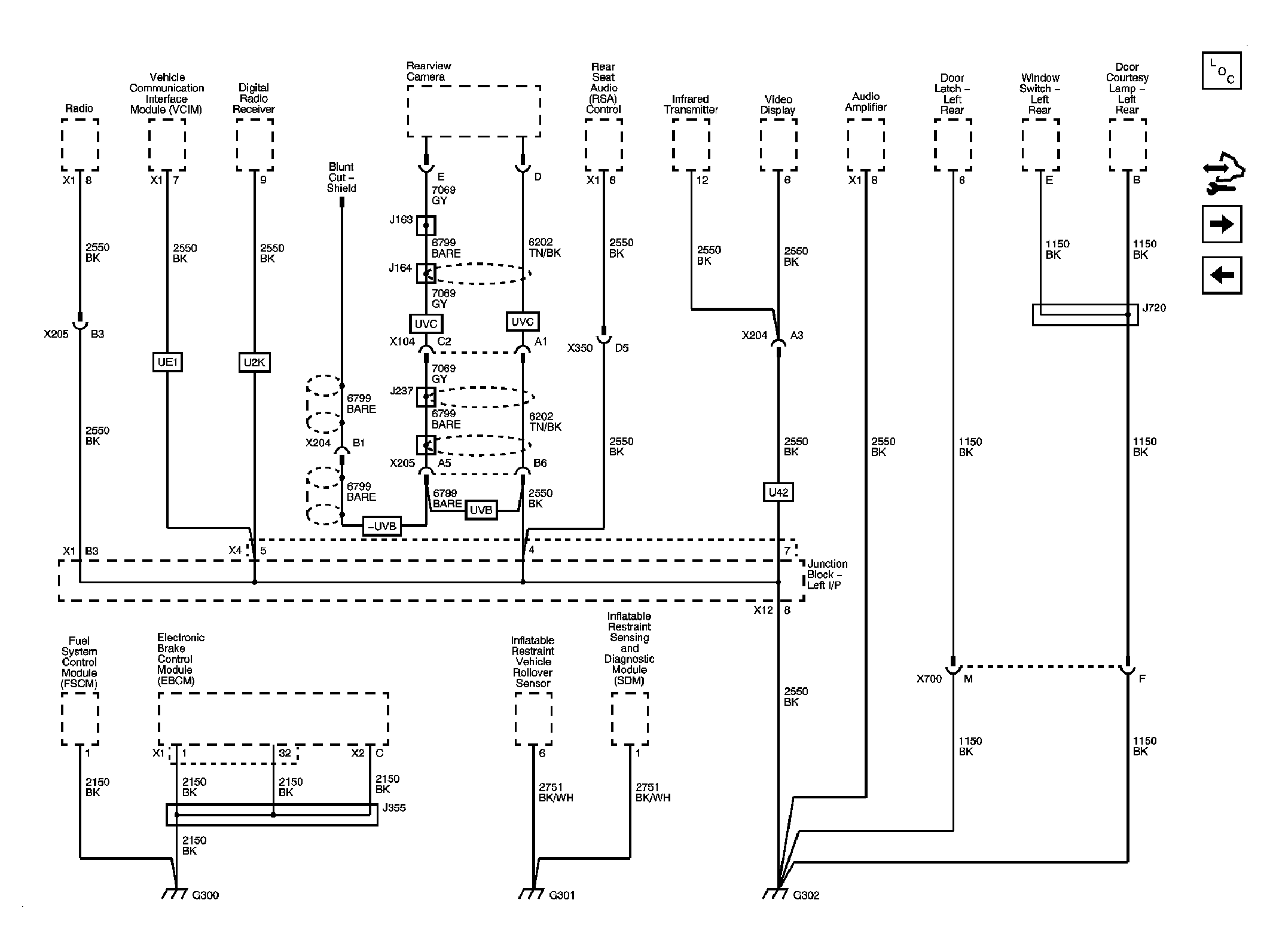

Fig 7: G300, G301 & G302

GM2097243

Courtesy of GENERAL MOTORS CORP.

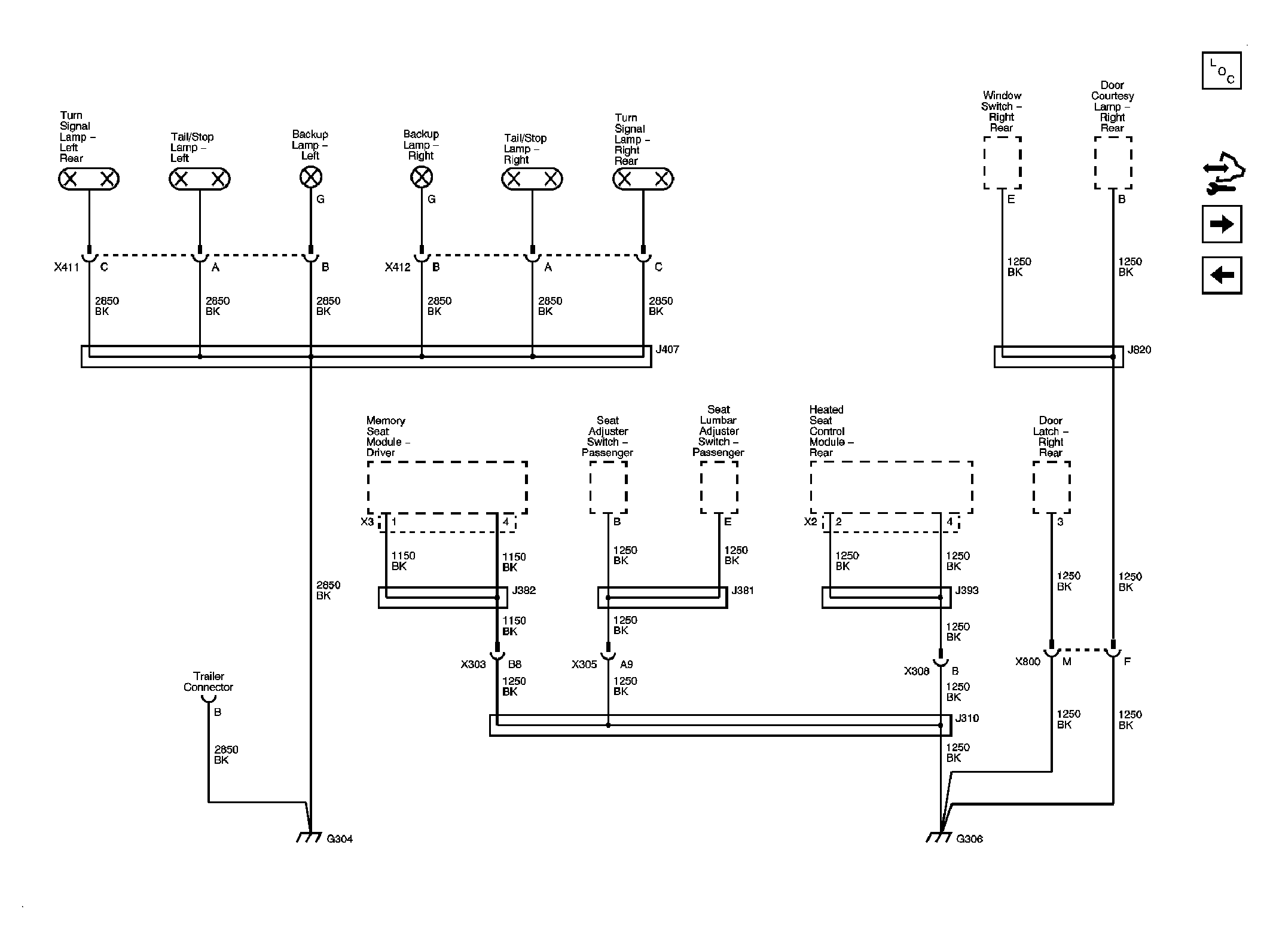

Fig 8: G304 & G306

GM2097244

Courtesy of GENERAL MOTORS CORP.

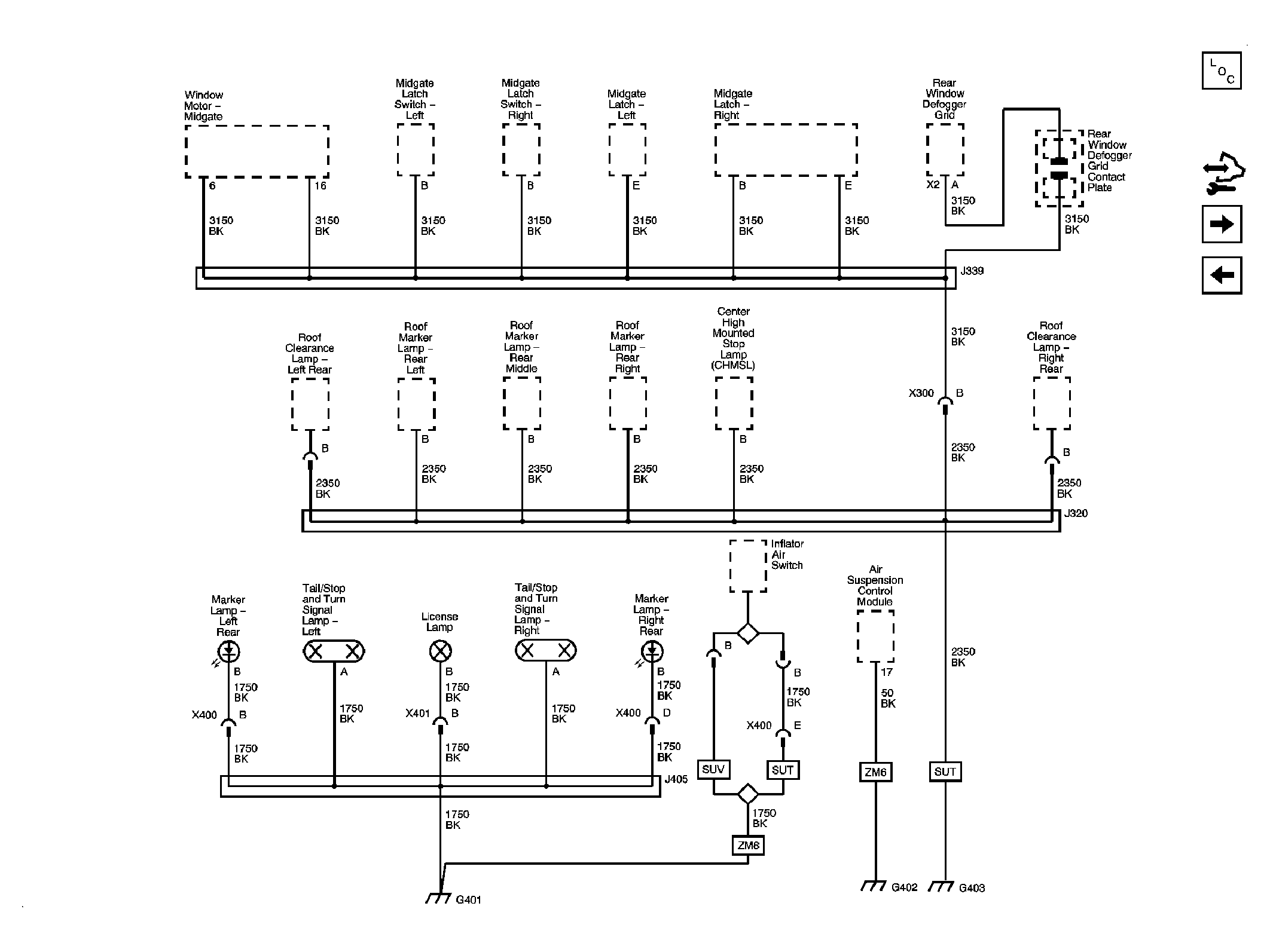

Fig 9: G401, G402 & G403

GM2097245

Courtesy of GENERAL MOTORS CORP.

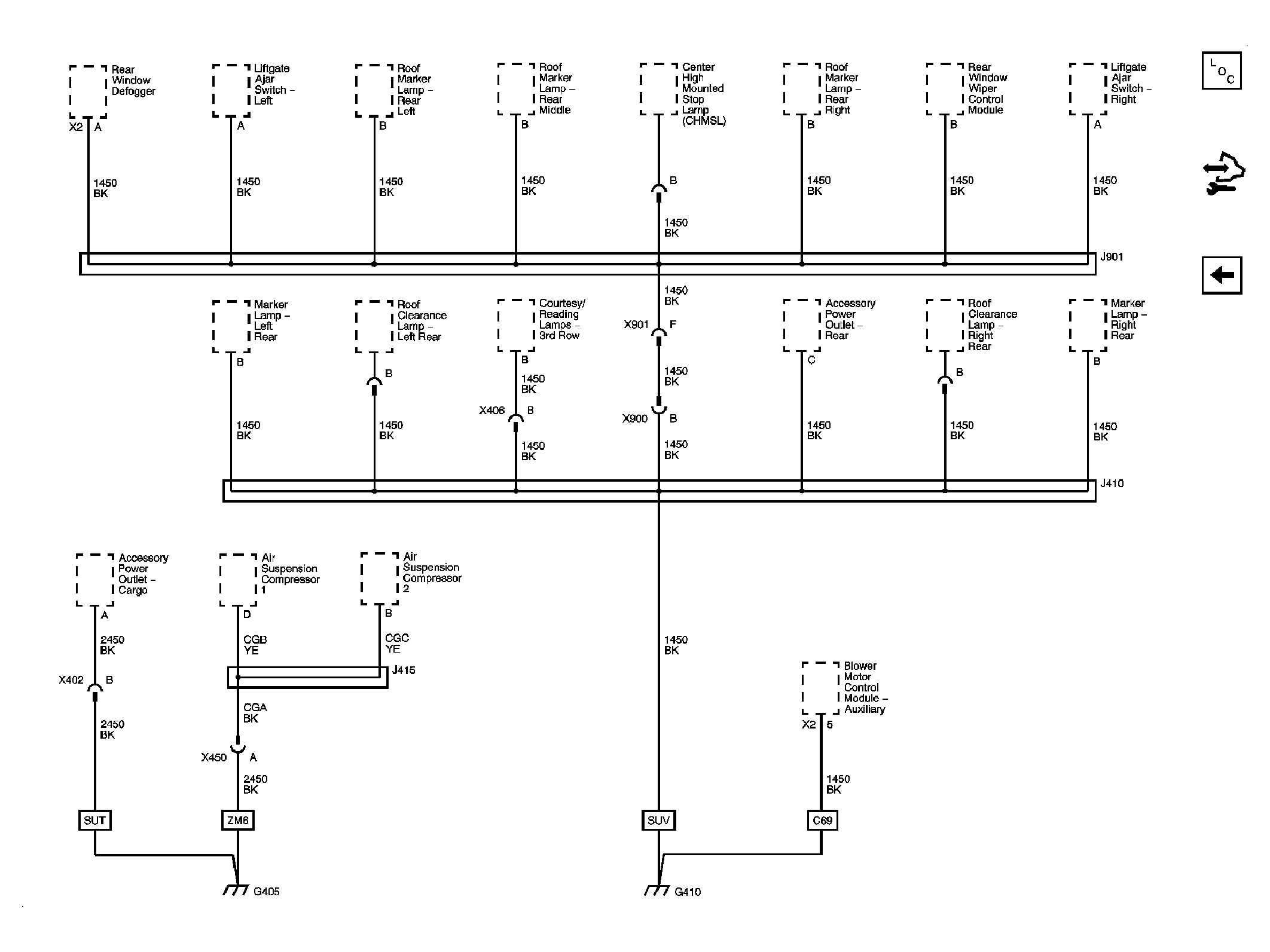

Fig 10: G405 & G410

GM2097246

Courtesy of GENERAL MOTORS CORP.
