Ignition Lock Cylinder Case Replacement

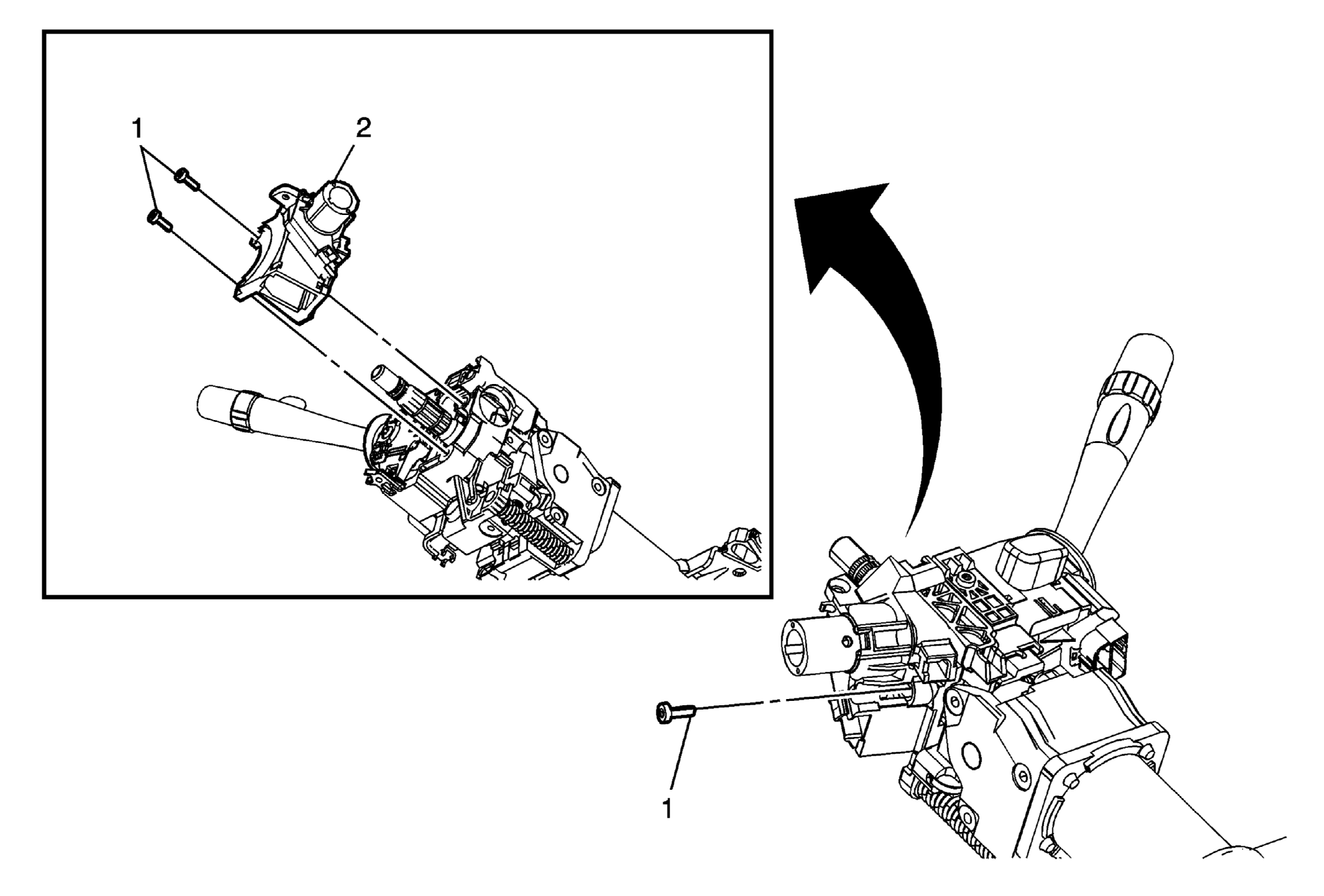

Fig 1: Identifying Ignition Lock Cylinder Case

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the turn signal cancel cam and steering shaft upper bearing spring. Refer to Turn Signal Cancel Cam and Steering Shaft Upper Bearing Spring Replacement . Remove the theft deterrent module. Refer to Theft Deterrent Module Replacement . Remove the ignition and start switch. Refer to Ignition and Start Switch Replacement . Remove the steering wheel theft deterrent lock. Refer to Steering Wheel Theft Deterrent Lock Replacement .
1	Ignition Lock Cylinder Case Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 7 N.m (62 lb in)
2	Ignition Lock Cylinder Case

Callout

Component Name

Preliminary Procedures

Remove the turn signal cancel cam and steering shaft upper bearing spring. Refer to Turn Signal Cancel Cam and Steering Shaft Upper Bearing Spring Replacement .
Remove the theft deterrent module. Refer to Theft Deterrent Module Replacement .
Remove the ignition and start switch. Refer to Ignition and Start Switch Replacement .
Remove the steering wheel theft deterrent lock. Refer to Steering Wheel Theft Deterrent Lock Replacement .

Ignition Lock Cylinder Case Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 7 N.m (62 lb in)

Ignition Lock Cylinder Case
