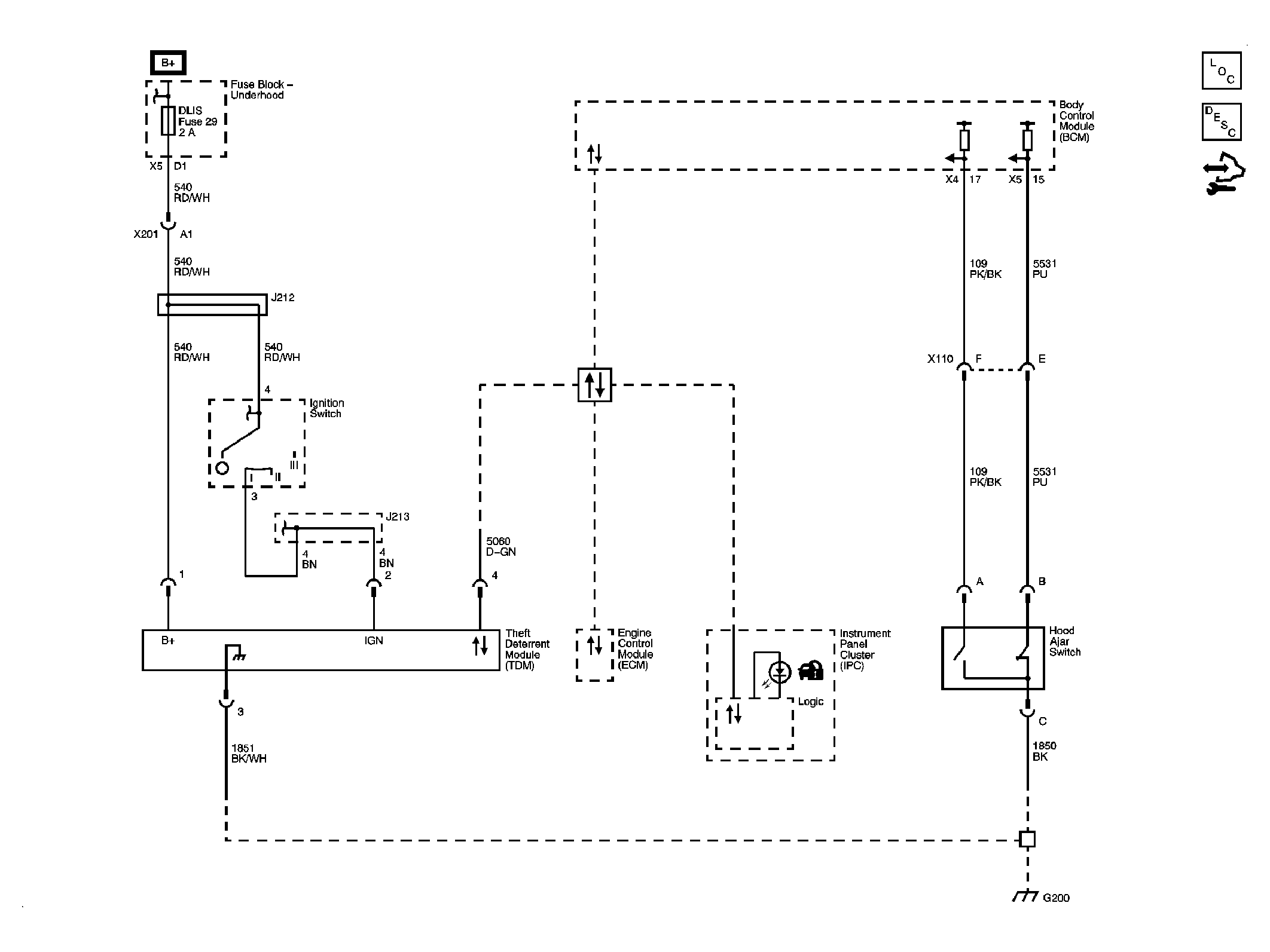

Home >> Hummer >> 2009 >> H2 4D Utility Pickup >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Immobilizer System >> Schematic and Routing Diagrams >> Immobilizer Schematics
