Door Control Module Schematics

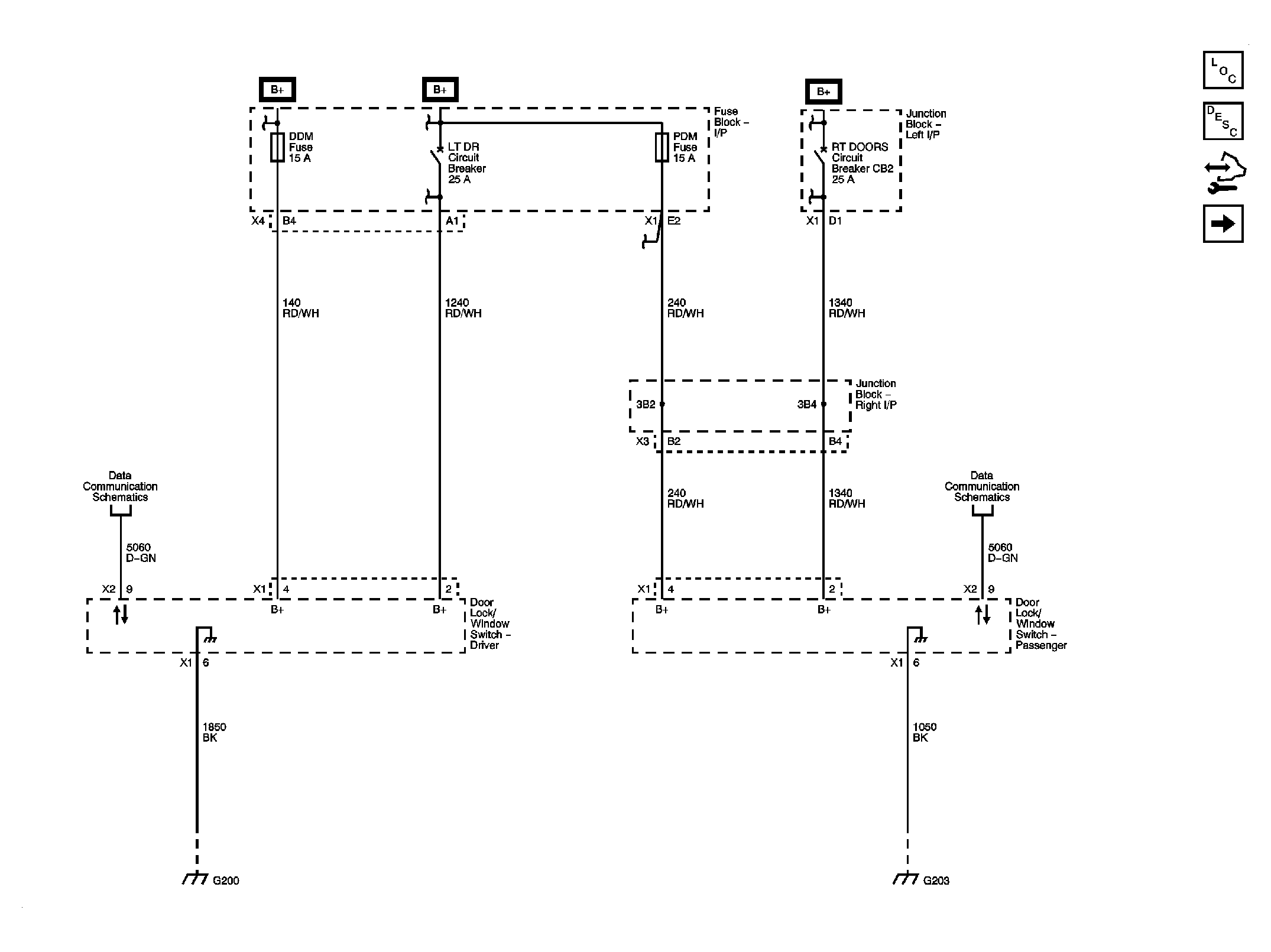

Fig 1: Power, Ground & Serial Data
GM2097151Courtesy of GENERAL MOTORS CORP.

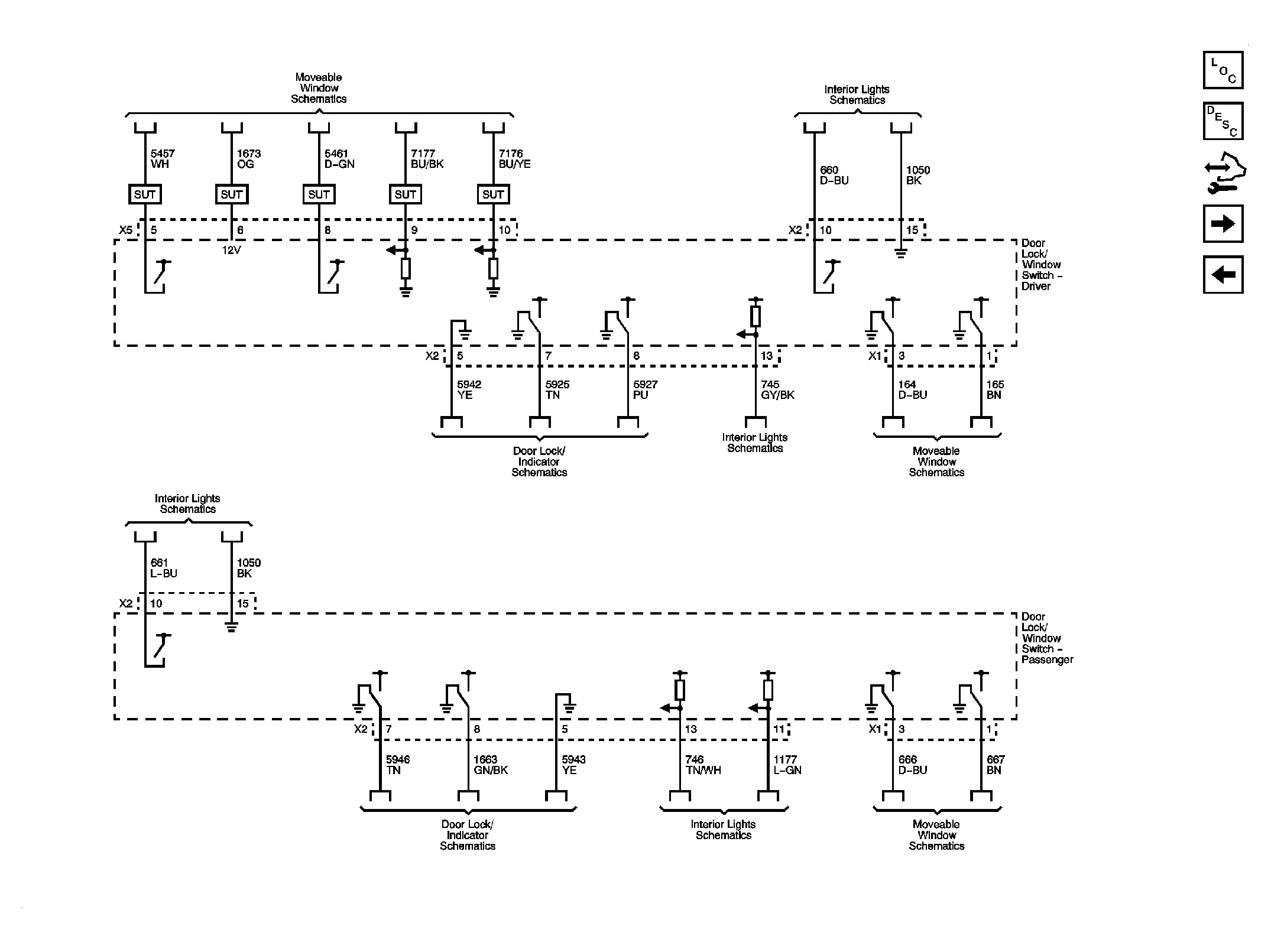

Fig 2: Exterior Lights, Interior Lights, Door Lock & Power Window References
GM2097152Courtesy of GENERAL MOTORS CORP.

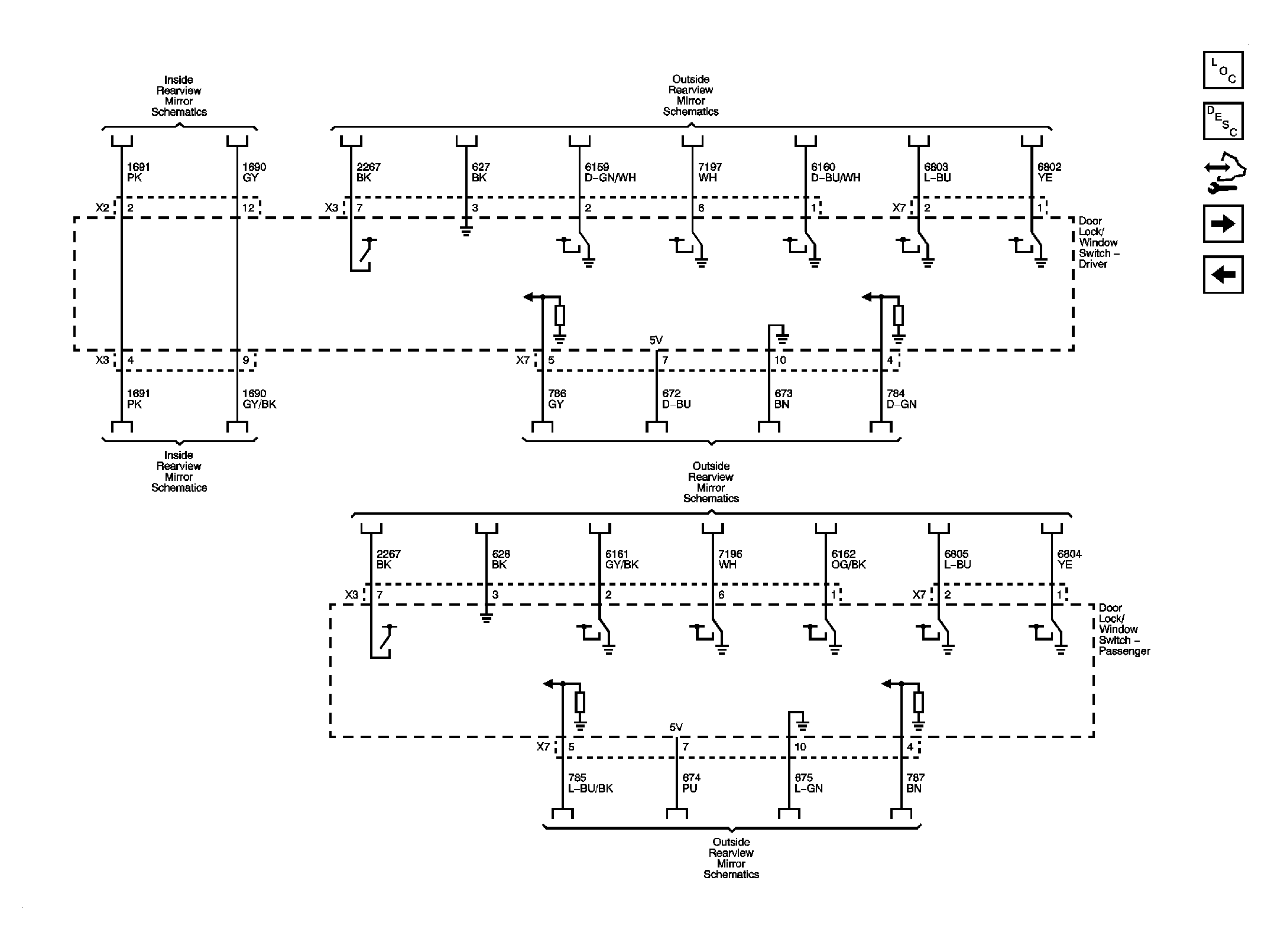

Fig 3: Inside & Outside Rearview Mirror References
GM2097153Courtesy of GENERAL MOTORS CORP.

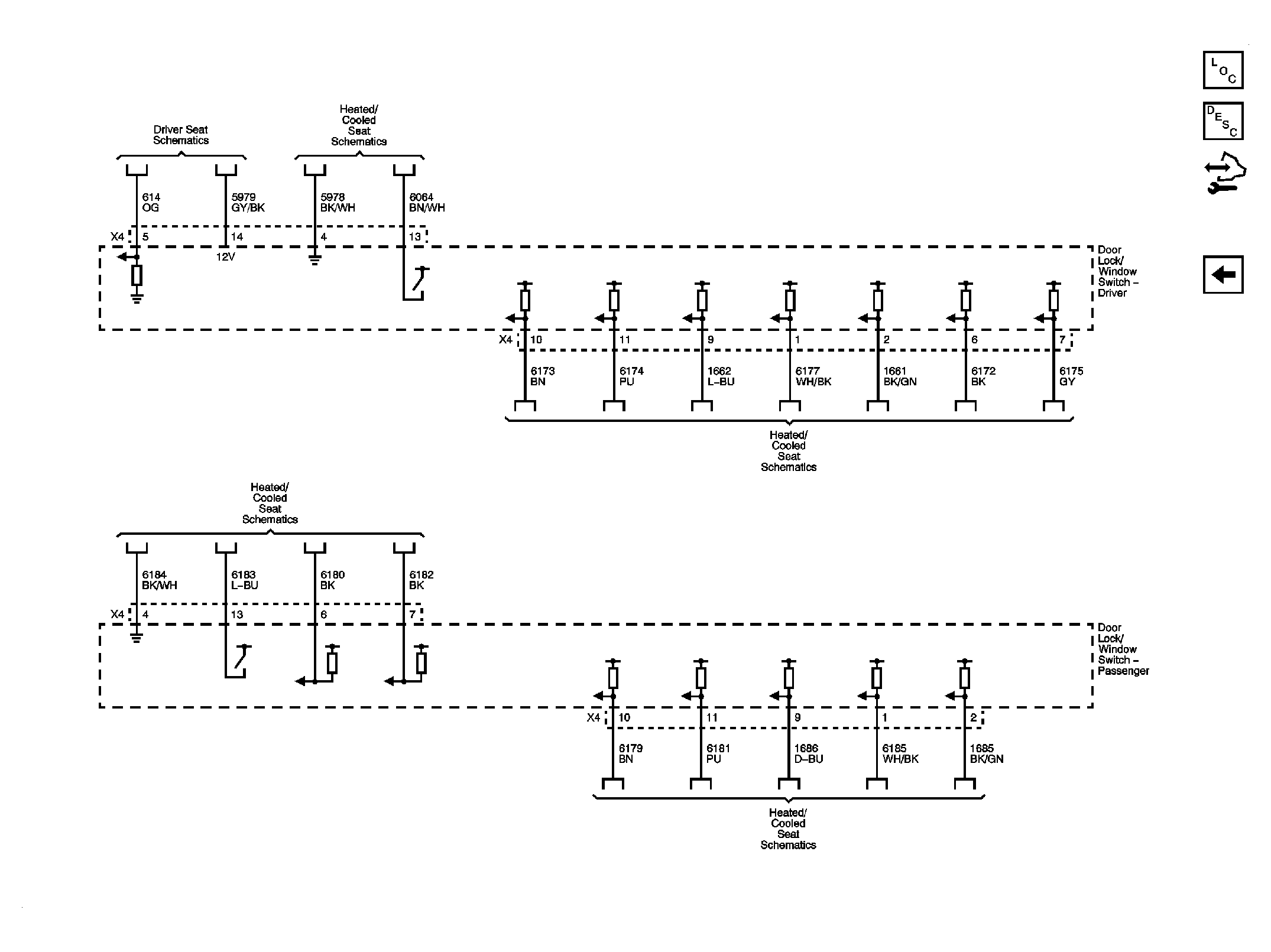

Fig 4: Seat References
GM2097154Courtesy of GENERAL MOTORS CORP.
