Object Detection Schematics

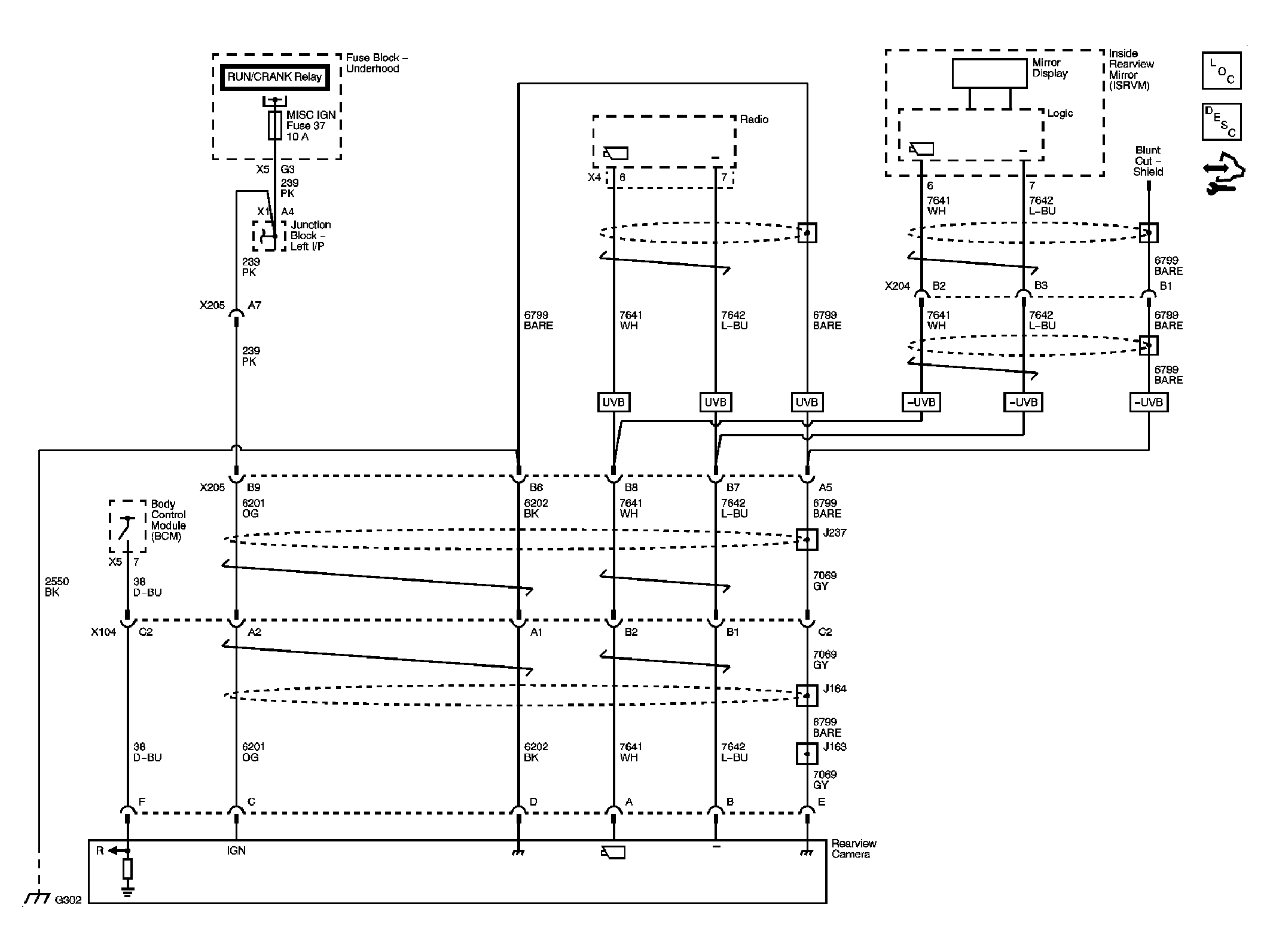

Fig 1: Rear Vision Camera (UVC)

GM2097251

Courtesy of GENERAL MOTORS CORP.
