Power Distribution Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu Classic. However, it is still accessible from the selected car via links, so may be relevant.

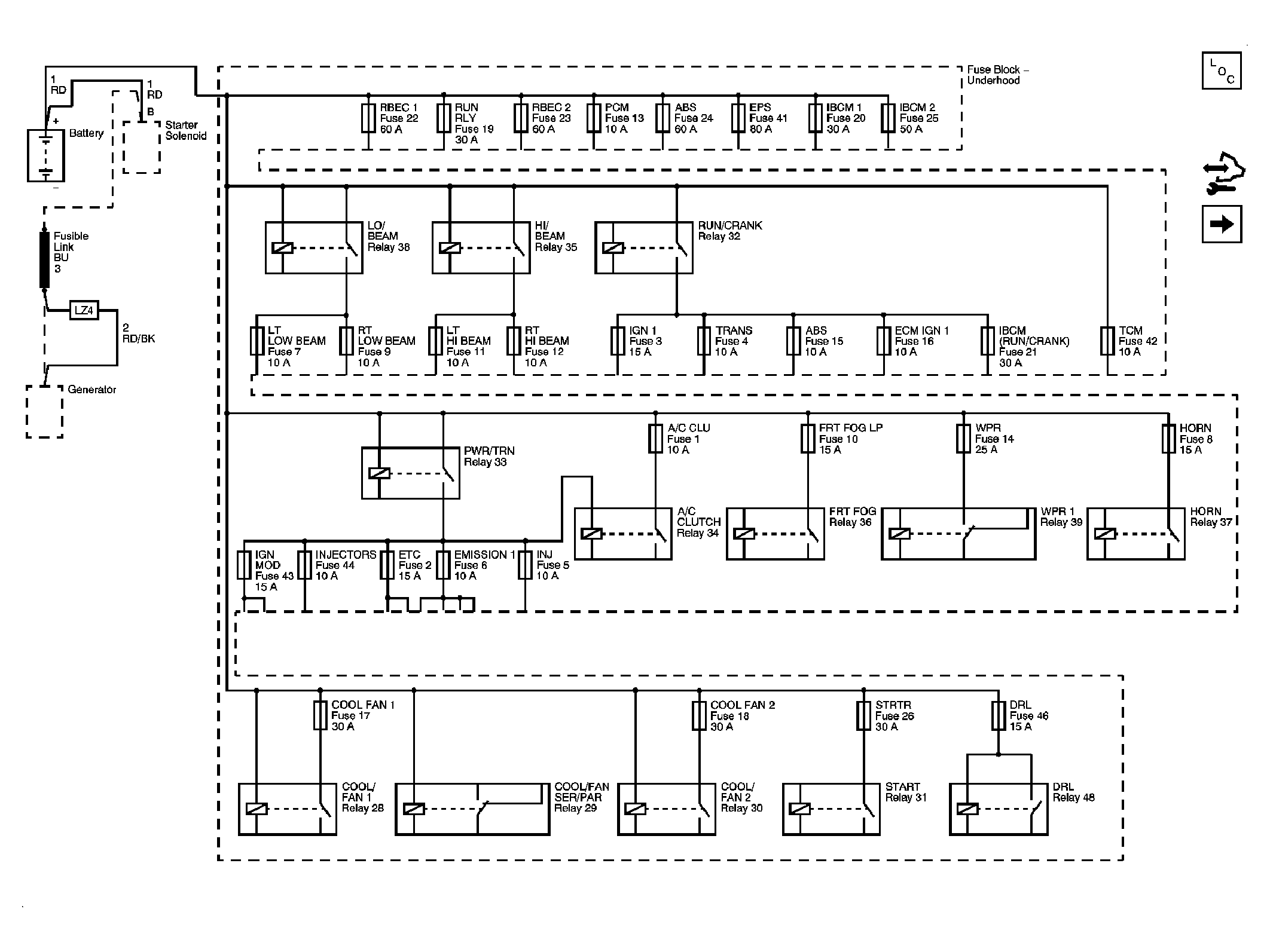

Fig 1: B+ Bus - Schematic

Courtesy of GENERAL MOTORS CORP.

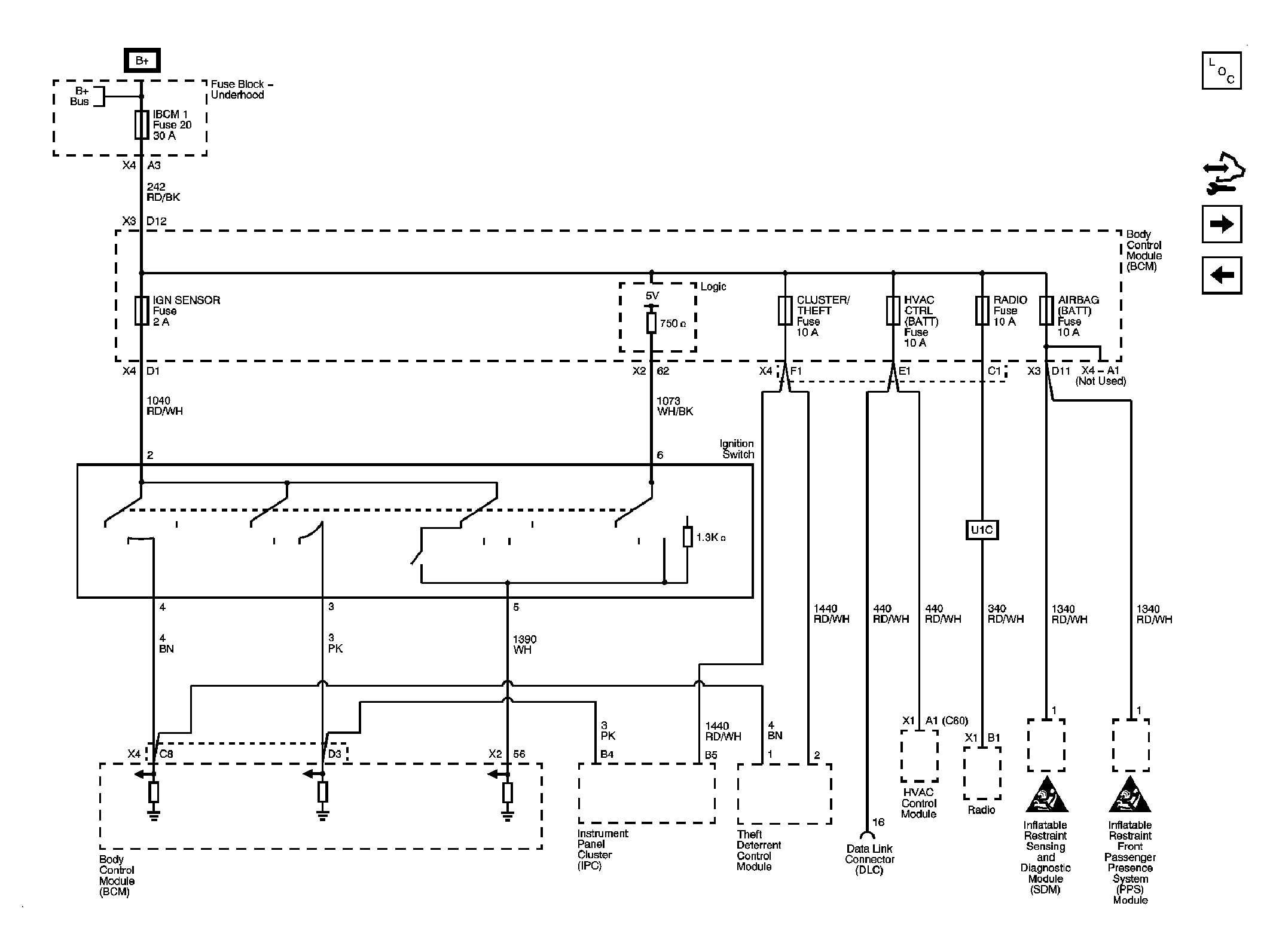

Fig 2: Underhood Fuse Block IBCM 1, Body Control Module (BCM), AIRBAG (BATT), CLUSTER/THEFT, HVAC CTRL (BATT), IGN SENSOR And RADIO Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

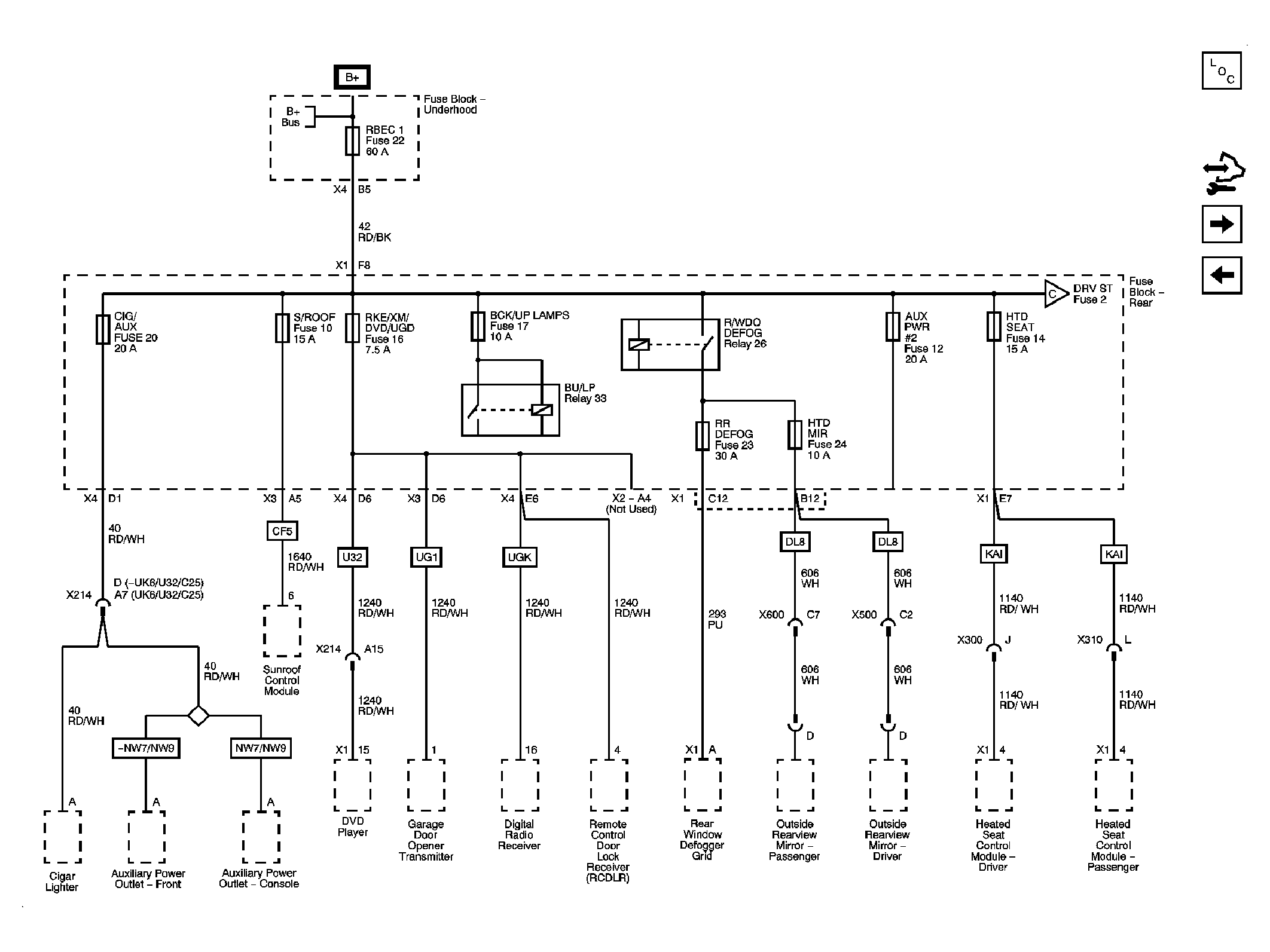

Fig 3: Underhood Fuse Block RBEC 1 And Rear Fuse Block AUX #2, BCK/UP LAMPS, CIG/AUX, HTD MIR, HTD SEAT, RKE/XM/DVD/UGD, RR DEFOG AND S/ROOF Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

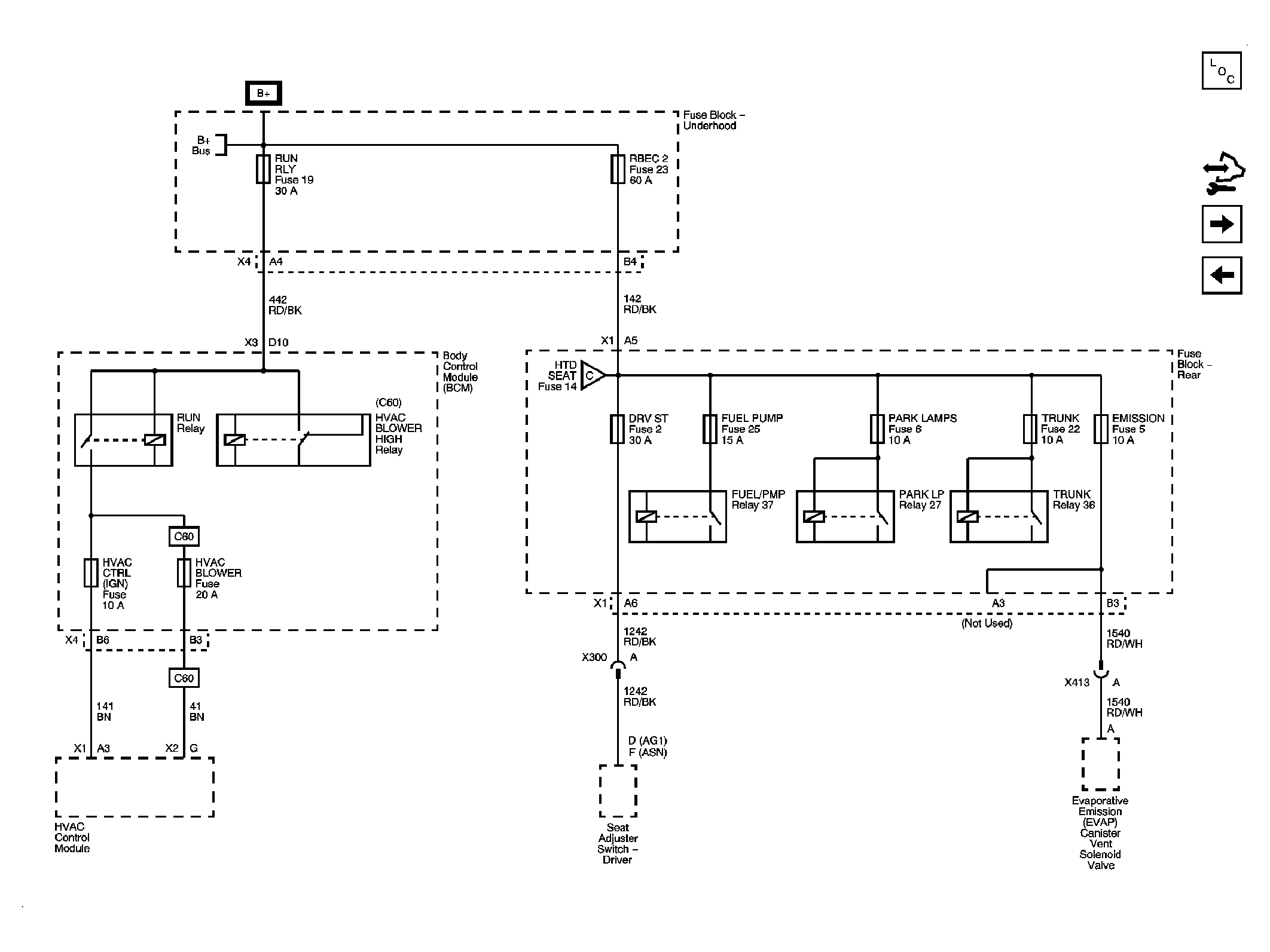

Fig 4: Underhood Fuse Block RBEC 2, RUN RLY, Body Control Module (BCM), HVAC BLOWER HIGH Relay, RUN Relay, HVAC BLOWER, HVAC CTRL (IGN), Rear Fuse Block FUEL/PMP Relay, TRUNK Relay, DRV ST - Schematic

Courtesy of GENERAL MOTORS CORP.

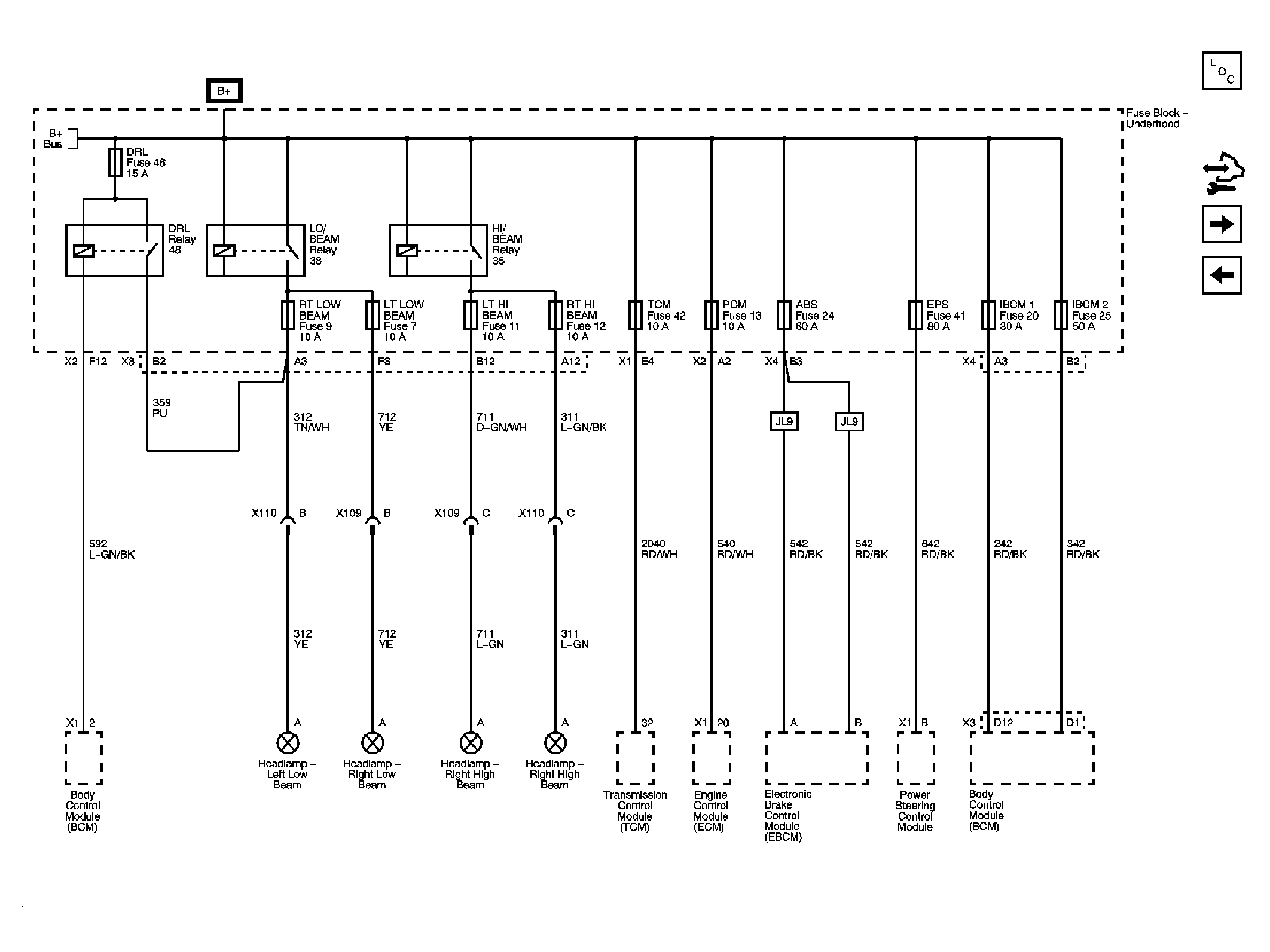

Fig 5: Underhood Fuse Block DRL. HI/BEAM and LO/BEAM Relays, ABS, DRL, EPS, IBCM 1, IBCM 2, LT HI BEAM, LT LOW BEAM, RT HI BEAM, RT LOW BEAM, PCM And TCM Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

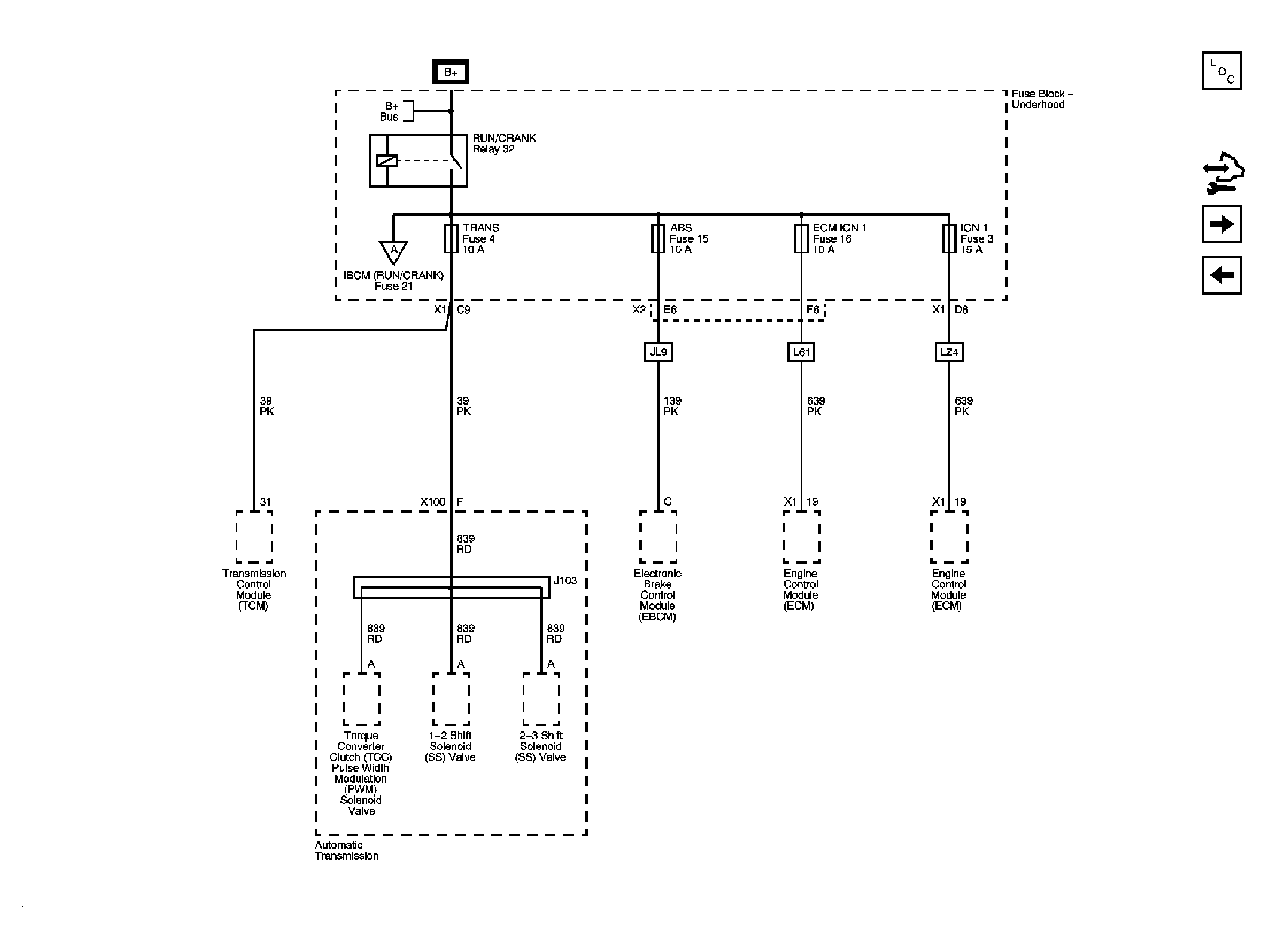

Fig 6: Underhood Fuse Block RUN/CRANK Relay, ABS, IGN 1, INJ, ECM IGN 1, And TRANS Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

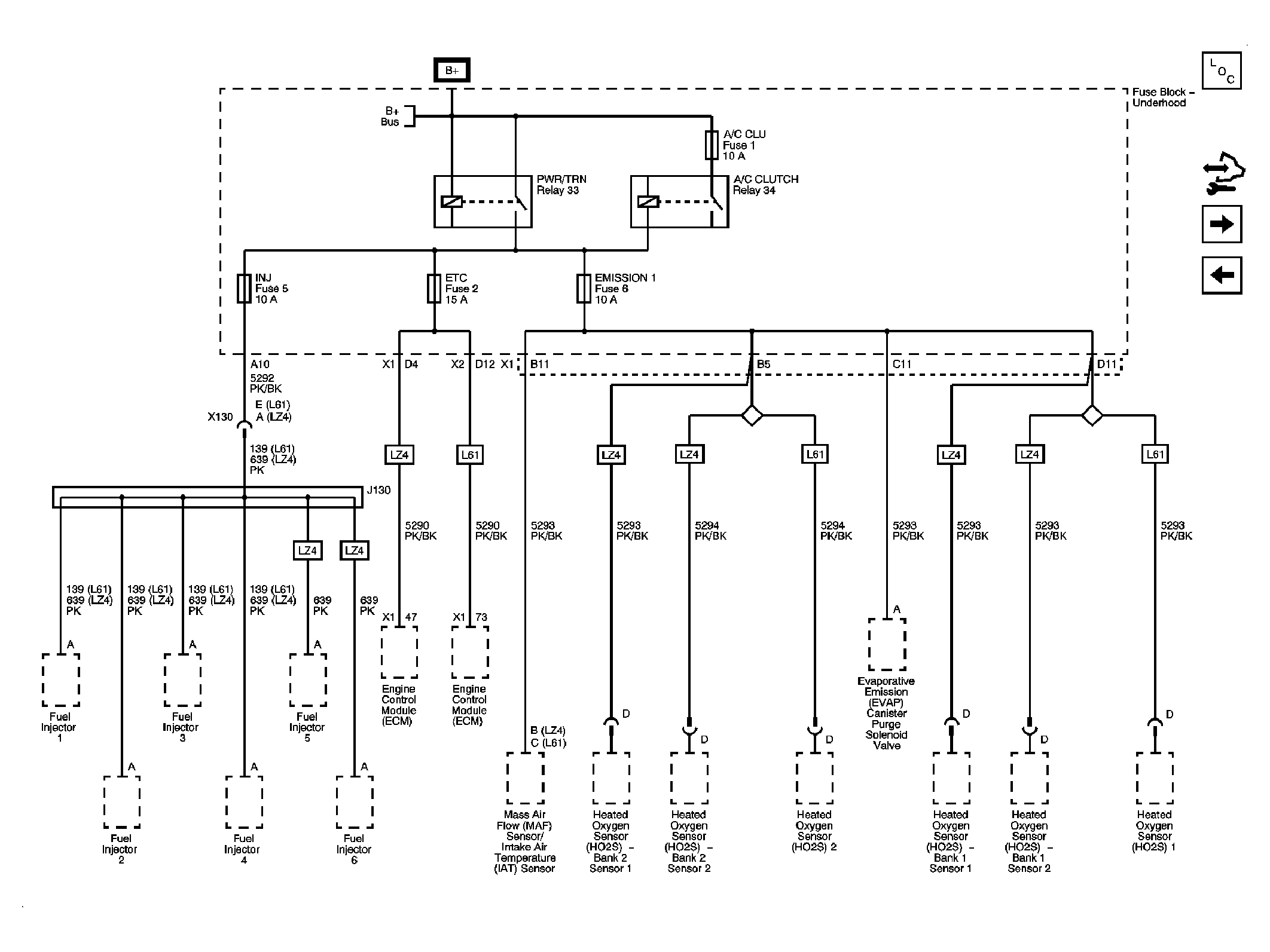

Fig 7: Underhood Fuse Block A/C CLUTCH And PWR/TRN Relays, A/C CLU, EMISSION 1, ETC And INJ Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

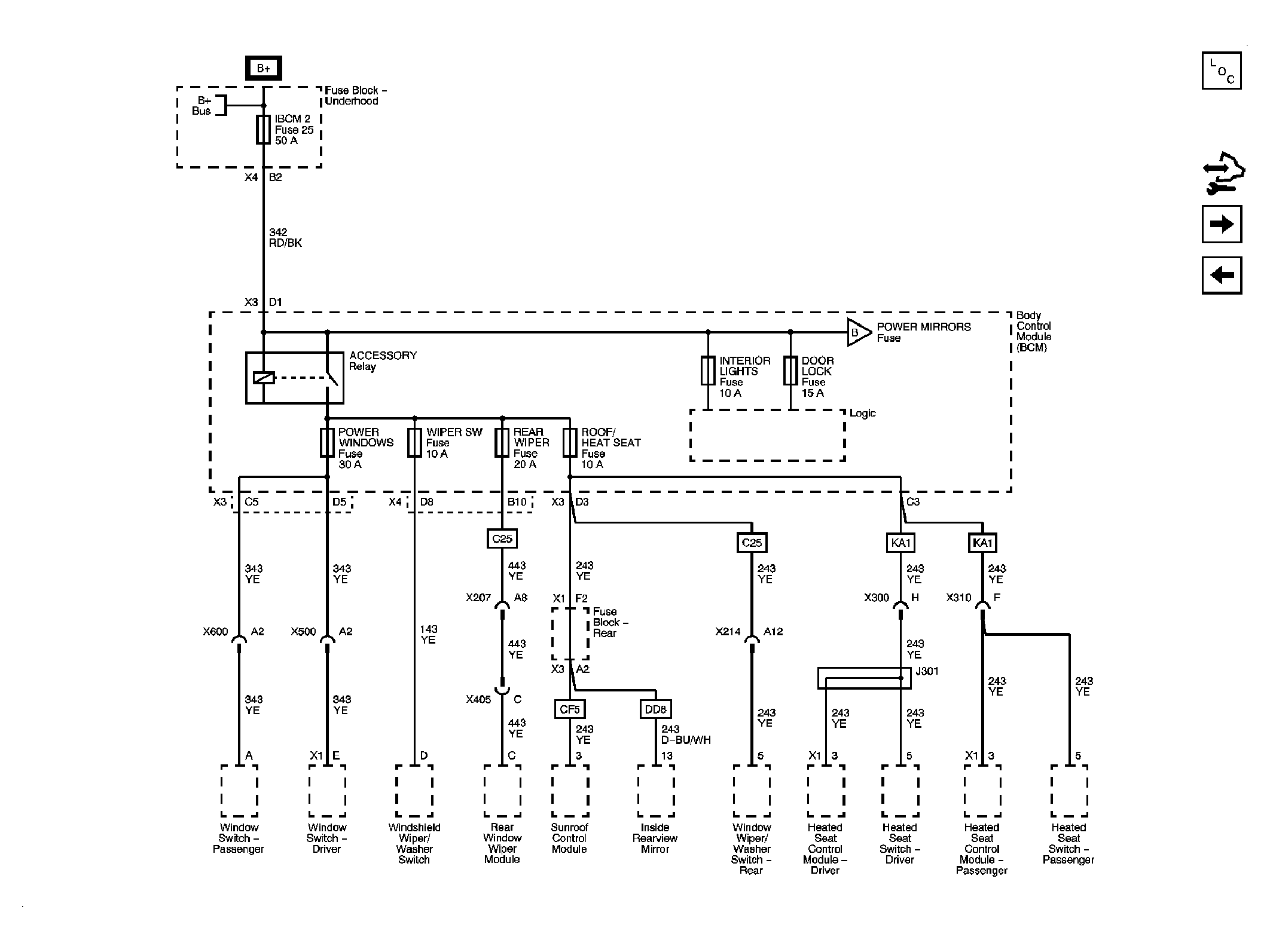

Fig 8: Underhood Fuse Block IBCM 2, Body Control Module (BCM), ACCESSORY Relay, DOOR LOCK, INTERIOR LIGHTS, POWER WINDOWS, REAR WIPER, ROOF/HEAT SEAT And WIPER SW Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

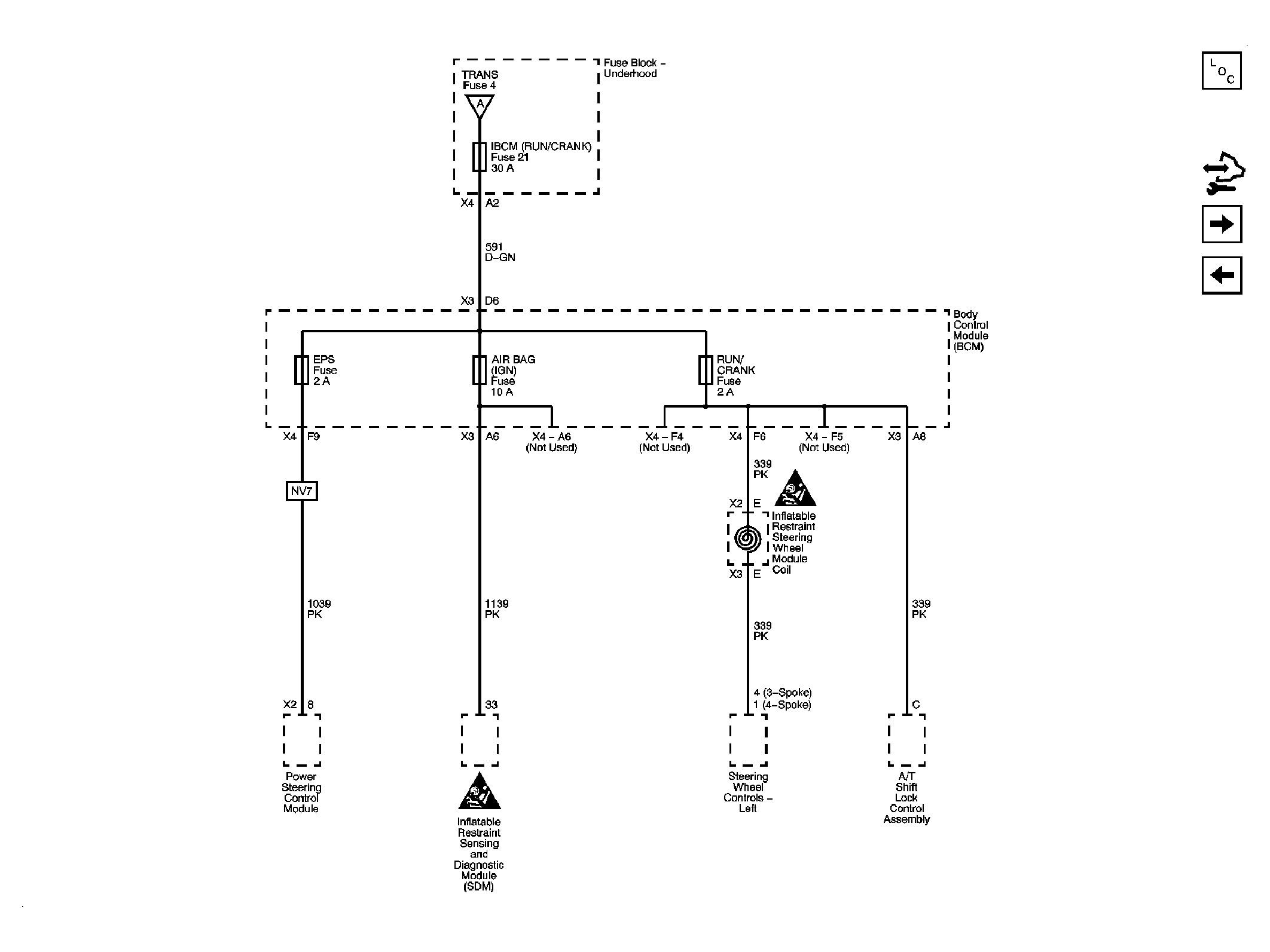

Fig 9: Underhood Fuse Block IBCM (RUN/CRANK) Fuse, Body Control Module (BCM) AIR BAG (IGN), EPS And RUN/CRANK Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.

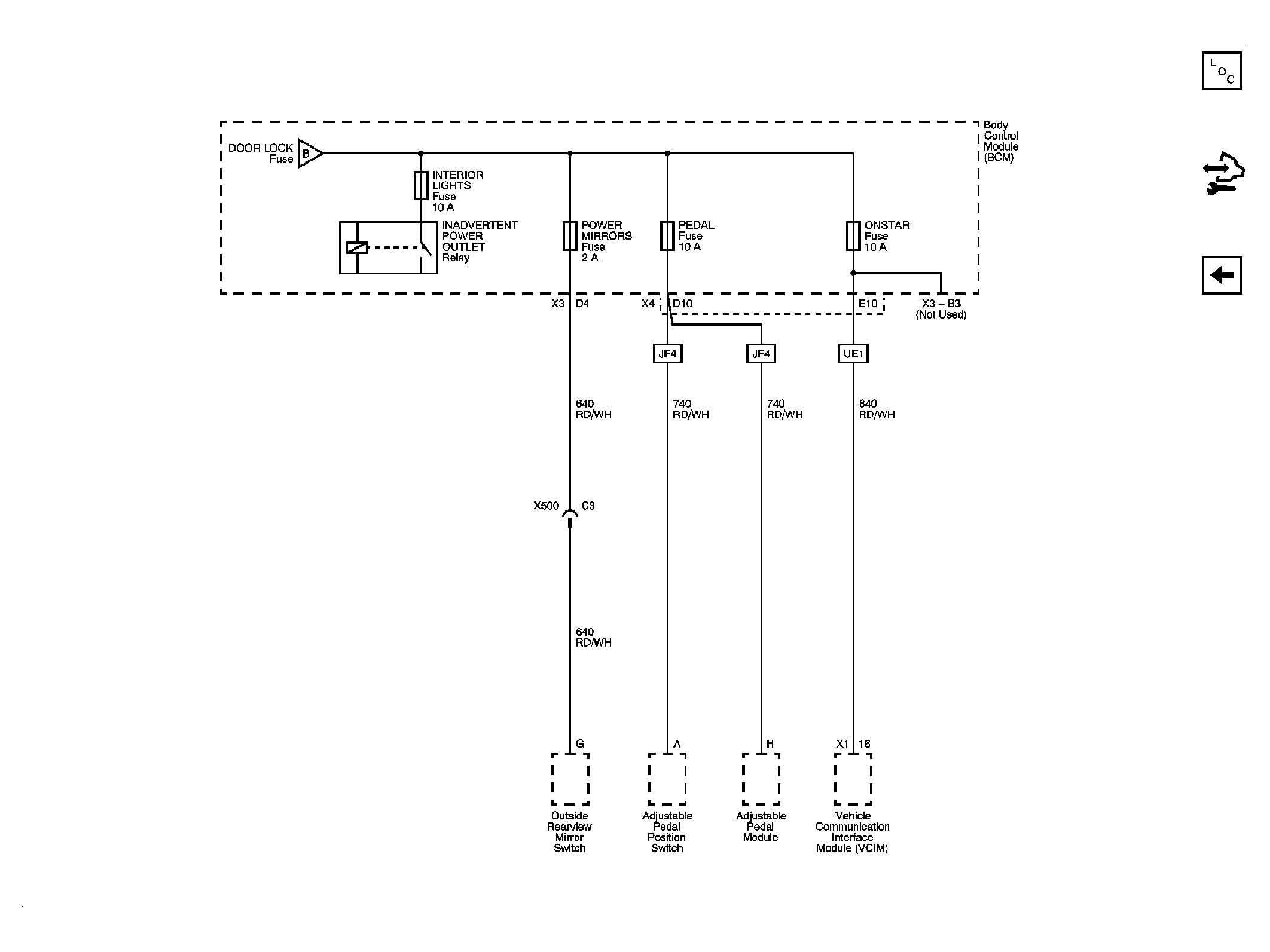

Fig 10: Body Control Module (BCM), INTERIOR LIGHTS, ONSTAR, PEDAL And POWER MIRRORS Fuses - Schematic

Courtesy of GENERAL MOTORS CORP.
