Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Rout and secure the new cable next to the existing cable.

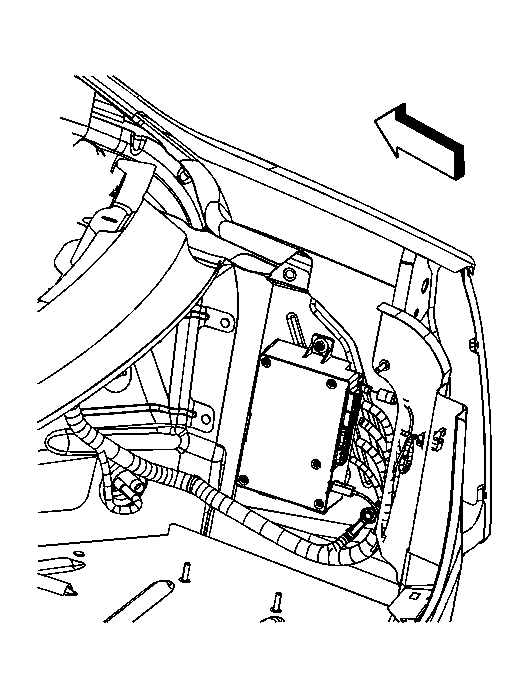

    Fig 1: Coax Cable Connectors
    GM1830205Courtesy of GENERAL MOTORS CORP.
  1. Install the coax cable.
  2. Connect the electrical connectors.
    3. Fig 2: Coax Cable Under Side Sail Panel
    GM1830233Courtesy of GENERAL MOTORS CORP.
  3. Install the right side sail panel. Refer to Sail Panel Replacement .
  4. Install the headliner. Refer to Headlining Trim Panel Replacement .
