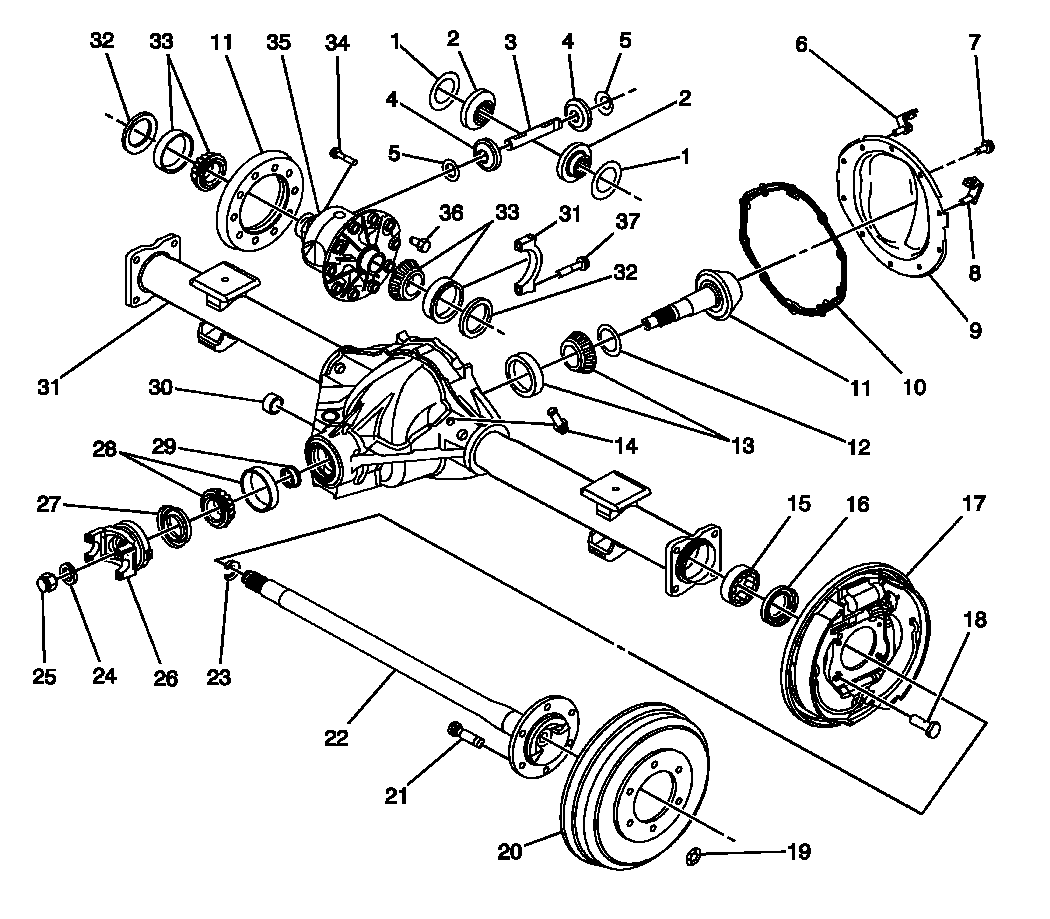

Rear Axle Disassembled Views
WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Washer, Side Gear Thrust |
| 2 | Gear, Side |
| 3 | Cross Pin |
| 4 | Gear, Differential Pinion |
| 5 | Washer, Pinion Thrust |
| 6 | Bracket Assembly, Support |
| 7 | Bolt, Cover Pan |
| 8 | Bracket Assembly, 3-Way |
| 9 | Cover Pan |
| 10 | Gasket, Cover Pan |
| 11 | Ring and Pinion Set |
| 12 | Shim, Pinion Bearing |
| 13 | Bearing Assembly, Pinion Inner |
| 14 | Vent Tube |
| 15 | Bearing Assembly, Axle Shaft |
| 16 | Seal Assembly, Axle Shaft |
| 17 | Brake Assembly |
| 18 | Bolt, Brake Attaching |
| 19 | Push Nut |
| 20 | Drum, Rear Brake |
| 21 | Stud, Wheel |
| 22 | Shaft, Axle |
| 23 | C-Lock, Axle Shaft |
| 24 | Washer, Pinion Flange |
| 25 | Nut, Pinion Flange |
| 26 | Flange Assembly, Pinion |
| 27 | Seal Assembly, Pinion Flange |
| 28 | Bearing Assembly, Pinion Tail |
| 29 | Spacer, Pinion Bearing |
| 30 | Plug, Fill |
| 31 | Housing Assembly |
| 32 | Shim, Differential Case Bearing |
| 33 | Bearing Assembly, Differential Case |
| 34 | Bolt, Differential Case Cross Pin |
| 35 | Case, Differential |
| 36 | Bolt, Ring Gear |
| 37 | Bolt, Carrier Cap |
