Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

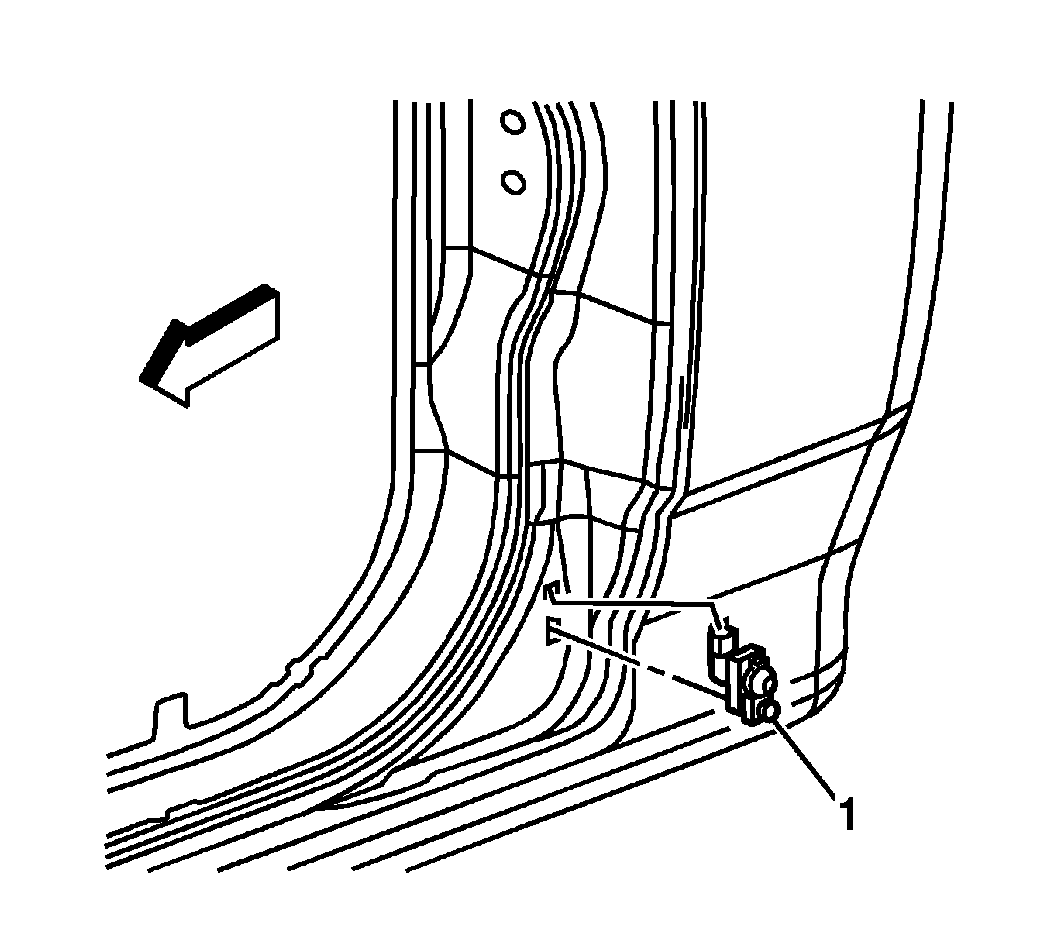

    Fig 1: View Of Door Jamb Switch
    GM1415019Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the door jamb switch (1).
  2. Install the door jamb switch (1) to the body.
    3. NOTE: Refer to Fastener Notice .
  3. Install the screw retaining the door jam switch to the body.

    Tighten:  Tighten the door jamb switch screw to 1.5 N.m (13 lb in).

  4. Close the door.
