Door Component Views

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator - Driver (AU3)
2	Door Lock and Window Switch - Driver (A31/AU3)
3	Speaker - Left Front Door Tweeter (UQ2)
4	Outside Rearview Mirror - Driver
5	Outside Rearview Mirror Switch (DE6)
6	X202
7	X209
8	Speaker - Left Front Door
9	Window Motor - Driver (A31)
10	Inflatable Restraint Side Impact Sensor (SIS) - Left Connector (ASF)

Fig 2: Front Passenger Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Front Passenger
2	Speaker - Right Front Door Tweeter (UQ2)
3	Door Lock and Window Switch - Front Passenger (A31/AU3)
4	Door Lock Actuator - Front Passenger (AU3)
5	Inflatable Restraint Side Impact Sensor (SIS) - Right Connector (ASF)
6	Window Motor - Front Passenger (A31)
7	Speaker - Right Front Door
8	X211 (AU3)
9	X210

Fig 3: Left Rear Door (EXT Cab) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Left Rear Door
2	Seat Belt Pretensioner - Left Front
3	Seat Belt Pretensioner - Left Front Connector
4	X316
5	X311

Fig 4: Left Rear Door (Crew Cab) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Left Rear Door
2	Window Switch - Left Rear (A31)
3	X316
4	Window Motor - Left Rear (A31)
5	Door Lock Actuator - Left Rear (AU3)

Fig 5: Door Jamb Switch - Driver (EXT Cab) Front Passenger Similar Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - Driver

Fig 6: Right Rear Door (EXT Cab) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Right Rear Door
2	X312
3	X317
4	Seat Belt Pretensioner - Right Front Connector
5	Seat Belt Pretensioner - Right Front

Fig 7: Right Rear Door (Crew Cab) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Right Rear (A31)
2	Speaker - Right Rear Door
3	Door Lock Actuator - Right Rear (AU3)
4	Window Motor - Right Rear (A31)
5	X317

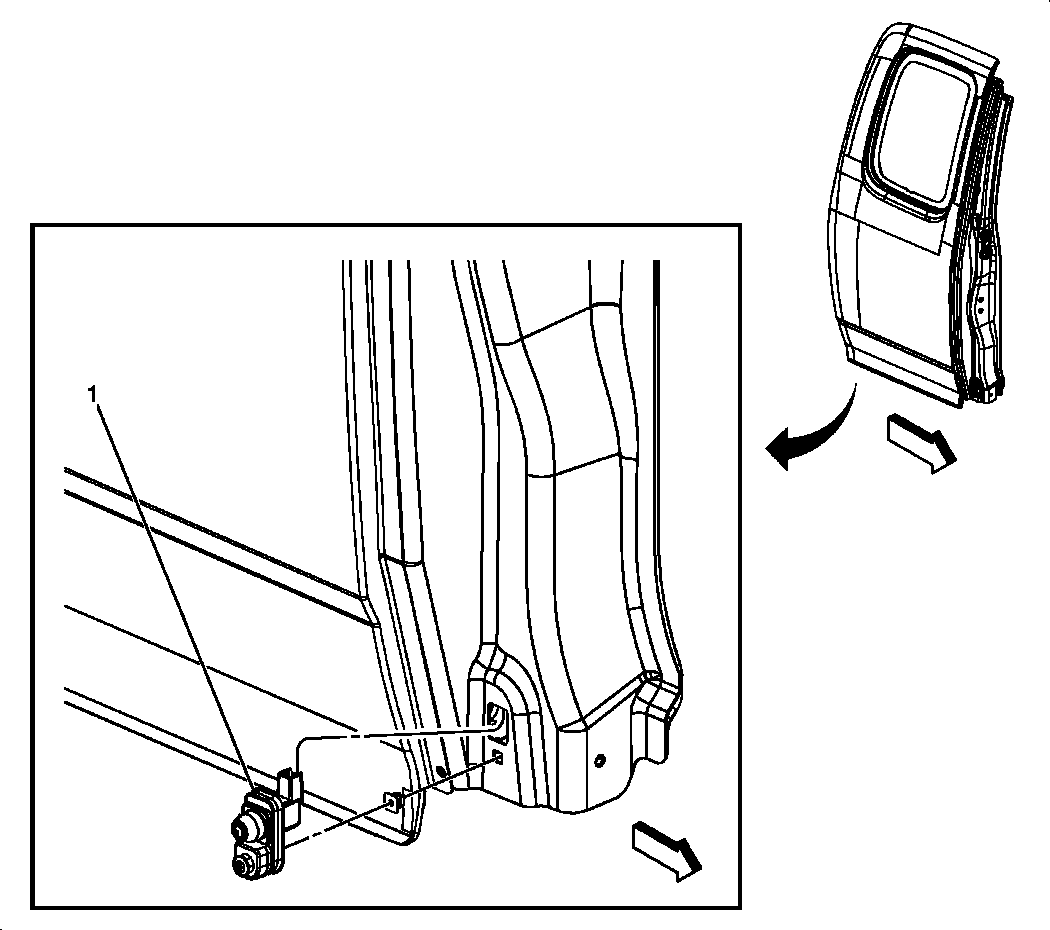

Fig 8: Right Rear Door Frame Components (Extended Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - Front Passenger
