Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

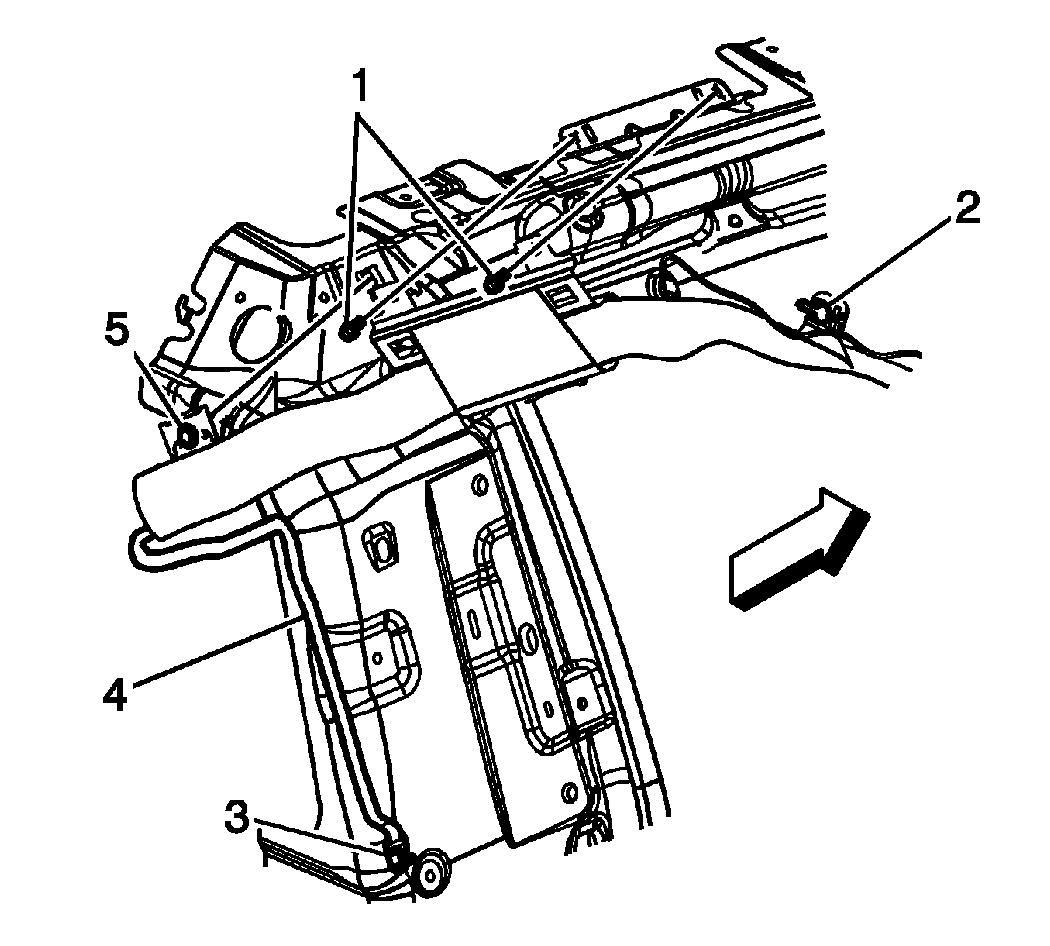

    Fig 1: View Of Retaining Bolts & Forward Curtain Clip
    GM1276902Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the 3 bolts (1) retaining the roof rail air bag module to the roof.

    Tighten:  Tighten the roof rail air bag module bolts to 9 N.m (79 lb in).

  2. Install a new forward curtain clip (2).
  3. Install the bolt (5) retaining the rear curtain to the roof.

    Tighten:  Tighten the roof rail air bag curtain bolts to 9 N.m (79 lb in).

  4. Install the rear tether bolt (3).

    Tighten:  Tighten the roof rail air bag rear tether bolt to 9 N.m (79 lb in).

    5. Fig 2: View Of Roof Rail Module Connector
    GM1276857Courtesy of GENERAL MOTORS CORP.
  5. Install the clips (3) to the pillar.
  6. Install the roof rail air bag forward tether bolt (3).

    Tighten:  Tighten the roof rail air bag forward tether bolt to 9 N.m (79 lb in).

  7. Connect the roof rail air bag electrical connector (1).
  8. Install the headliner. Refer to Headlining Trim Panel Replacement (Crew Cab) or Headlining Trim Panel Replacement (Extended Cab) or Headlining Trim Panel Replacement (Regular Cab) .
  9. Enable the SIR system. Refer to SIR Disabling and Enabling .
  10. Install the head restraints from the front seats. Refer to Front Seat Head Restraint Replacement .
