Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

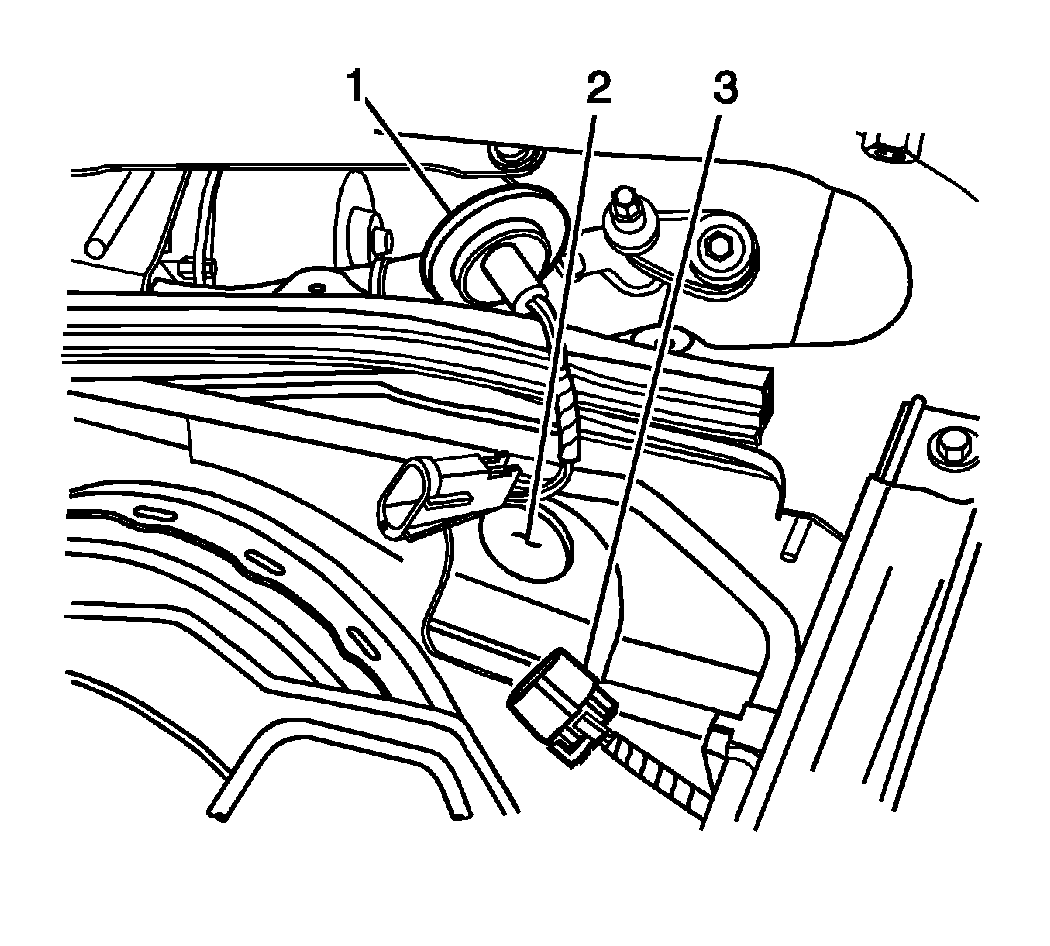

    Fig 1: View Of Electrical Harness Grommet, Electrical Connector, & Transmission
    GM1272635Courtesy of GENERAL MOTORS CORP.
  1. Install the transmission (3) to the cowl area of the plenum. A slight twisting motion is needed in order to install.
    2. NOTE: Refer to Fastener Notice .
  2. Install the transmission mounting bolts (1, 4).

    Tighten:  Tighten the wiper transmission mounting bolts to 9 N.m (81 lb in).

    3. Fig 2: View Of Wiper Transmission
    GM1272633Courtesy of GENERAL MOTORS CORP.
  3. Position the electrical harness grommet to the plenum panel hole (5).
  4. Pull the harness toward the front of the vehicle in order to seat the harness grommet.
  5. Connect the electrical connector.
  6. Install the connector position assurance tab (CPA) to the harness connector.
  7. Cycle the wiper system 1 time with the wiper motor switch.
  8. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  9. Install the wiper arms. Refer to Windshield Wiper Arm Replacement .
  10. Test the wiper system.
