Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper motor onto the wiper transmission frame.
    2. NOTE: Refer to Fastener Notice .
  2. Install the bolts in order to secure the motor to the frame.

    Tighten:  Tighten the wiper motor mounting bolts to 9 N.m (81 lb in).

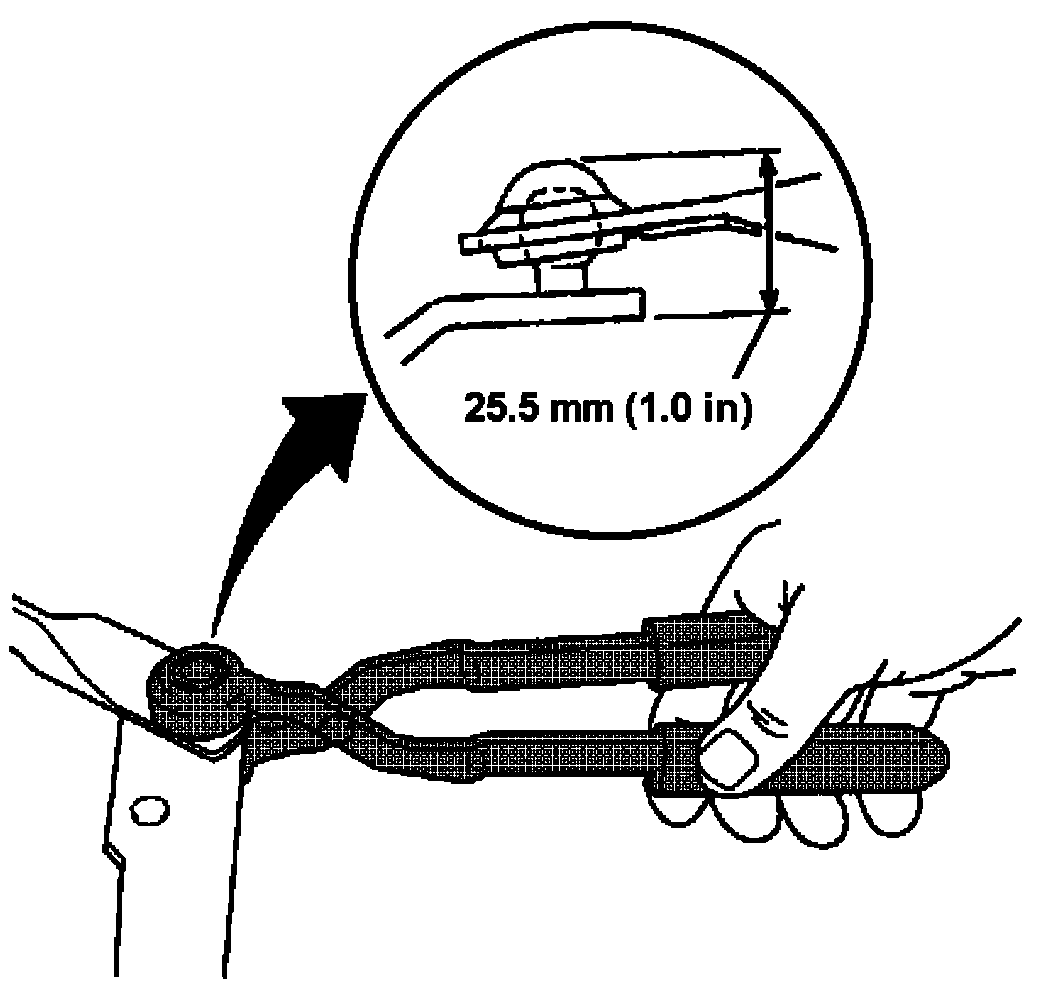

    3. Fig 1: Assembling Wiper Transmission to Crank Arm
    GM429902Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Lubricate the socket with Multi-Purpose Lubricant, Superlube, GM P/N 12346241 (Canadian P/N 10953474) or equivalent.
  3. Install the transmission drive link socket onto the crank arm ball of the wiper motor using the J 39529  . See Special Tools .

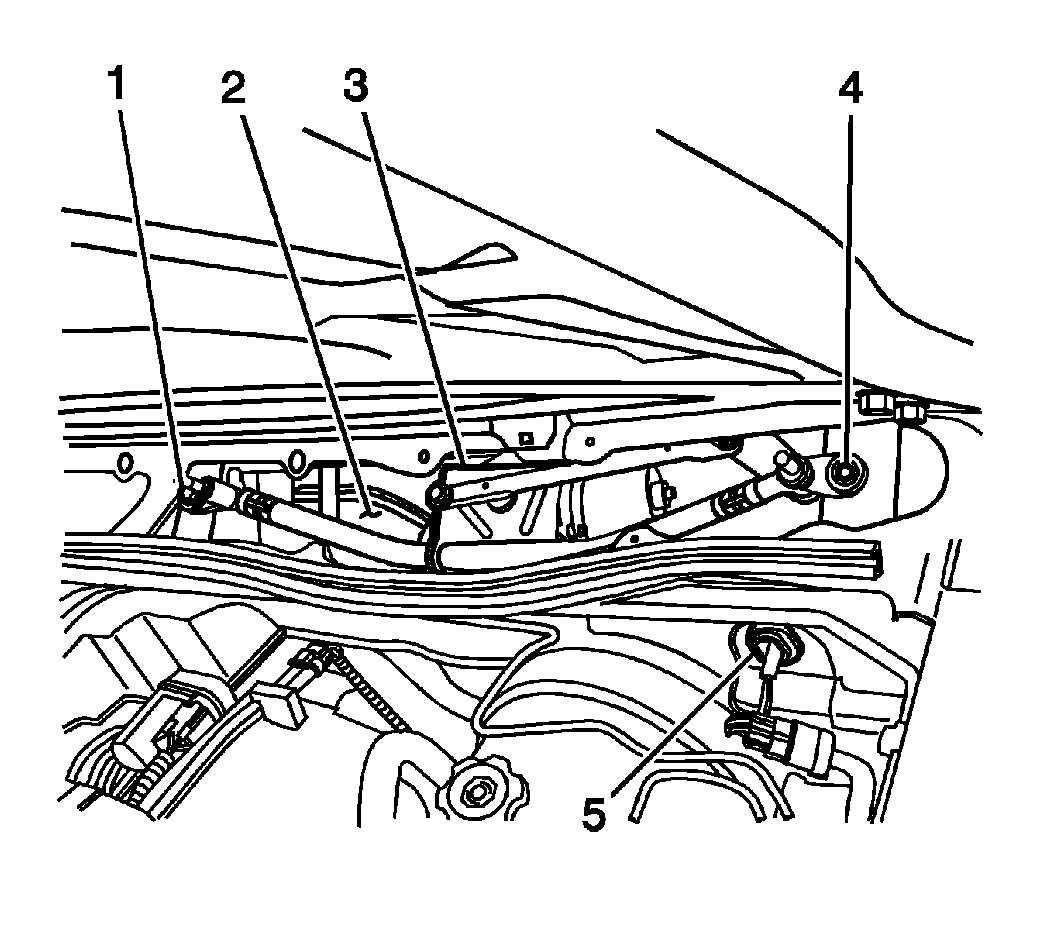

    4. Fig 2: View Of Wiper Transmission
    GM1272633Courtesy of GENERAL MOTORS CORP.
  4. Install the wiper transmission (3) to the plenum. Refer to Windshield Wiper Transmission Replacement .
