Moveable Window Schematics

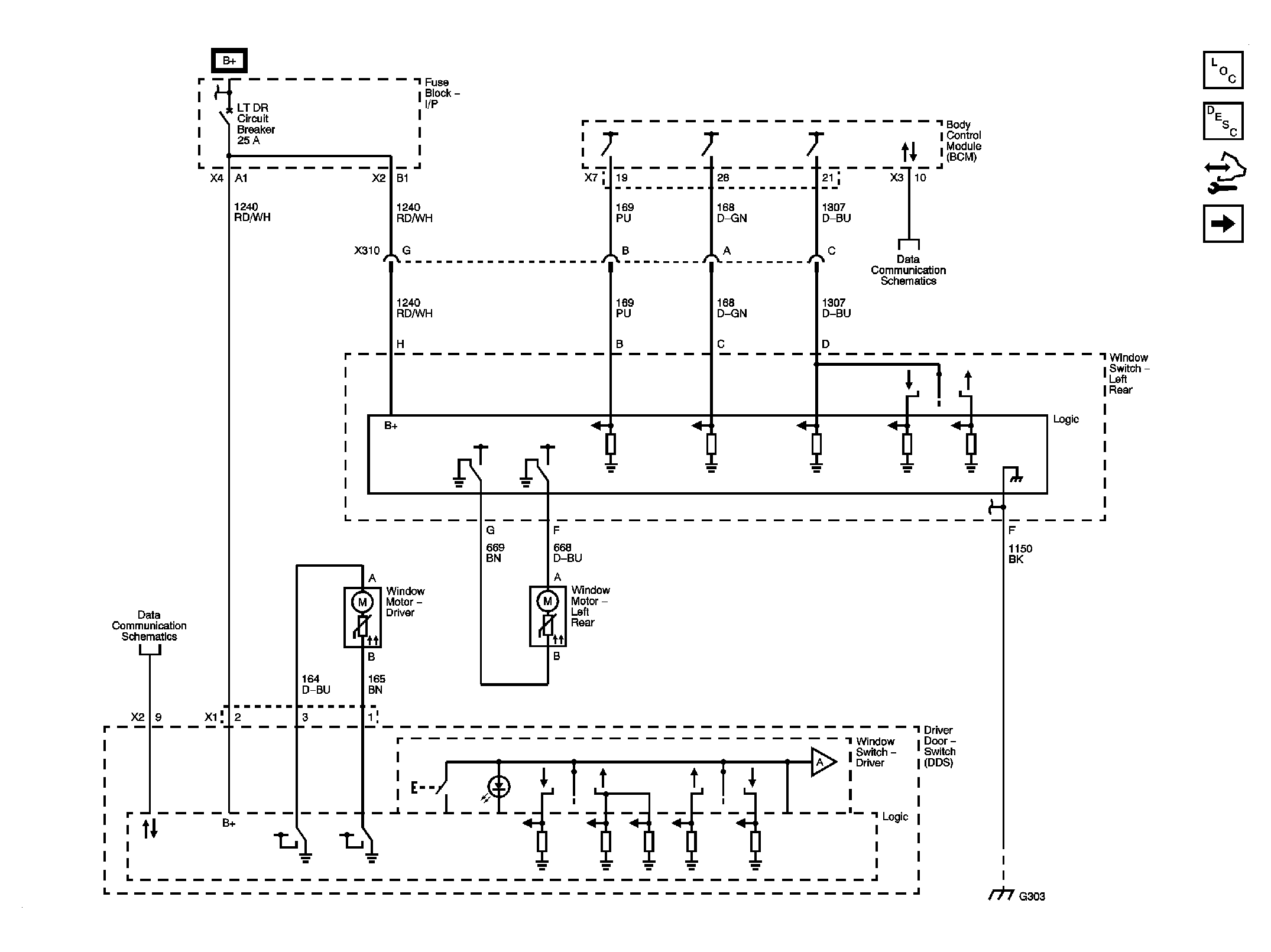

Fig 1: Left Doors

GM1961664

Courtesy of GENERAL MOTORS CORP.

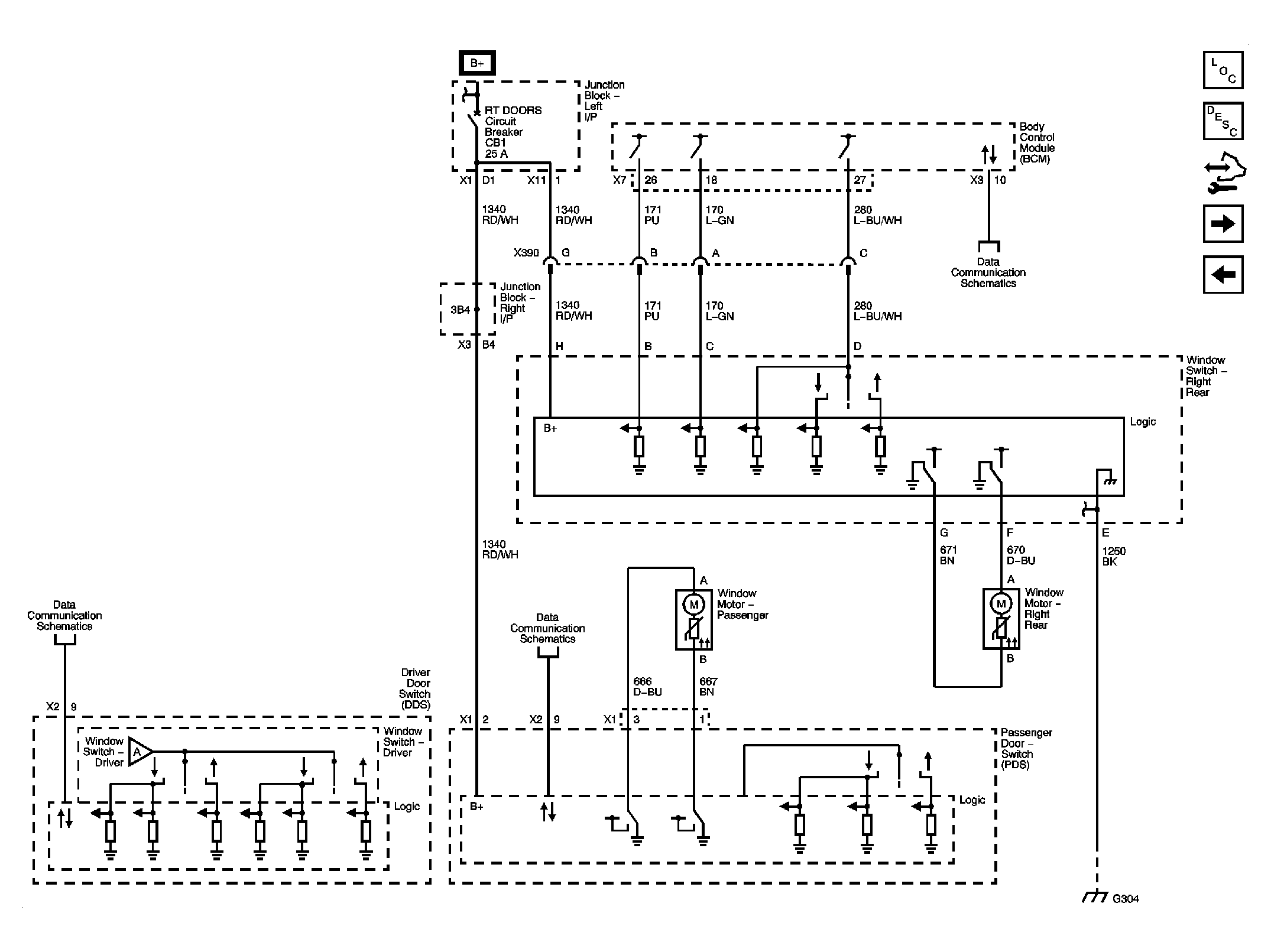

Fig 2: Right Doors

GM1961666

Courtesy of GENERAL MOTORS CORP.

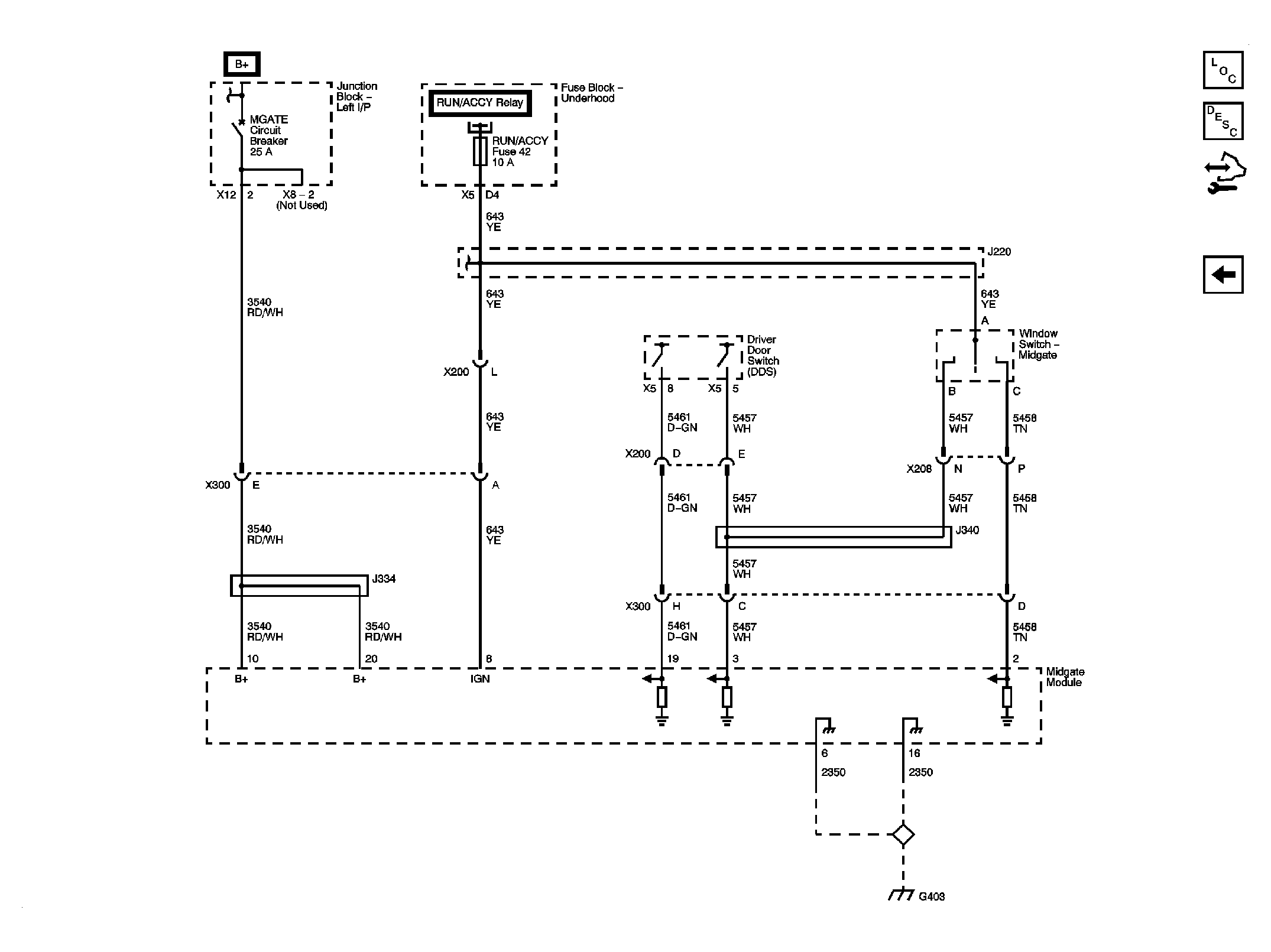

Fig 3: Midgate

GM1961668

Courtesy of GENERAL MOTORS CORP.
