Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new washer pump grommet into the container.
  2. Install the old cap and lower container grommet.
  3. Install the old pump into the new pump grommet.
  4. Use clean washer solvent on the washer pump grommet to aid in the pump installation.
  5. Secure the top of the pump to the container.

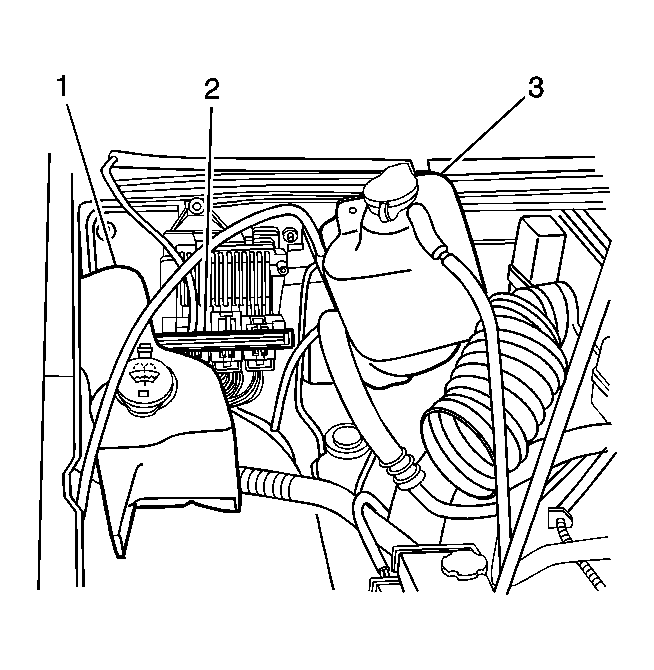

    6. Fig 1: View Of Washer Solvent Container, Upper Bracket & Coolant Reservoir
    GM1272643Courtesy of GENERAL MOTORS CORP.
  6. Position the washer solvent container (1) to the fender flange and loosely install the bolts.
  7. Position the coolant reservoir (3) to the washer solvent container (1).
  8. Loosely install the bolt to the upper bracket (2) in order to secure the coolant reservoir to the wheelhouse.
    9. NOTE: Refer to Fastener Notice in Cautions and Notices.
  9. Loosely install the bolt in order to secure the bracket (2) to the washer solvent container (1).

    Tighten:

    1. Tighten the washer container to fender flange bolts to 9 N.m (81 lb in).
    2. Tighten the washer solvent container bracket bolt to 9 N.m (81 lb in).
    3. Tighten the bolt/J-clip securing both washer/coolant containers together to 9 N.m (81 lb in).
    4. Tighten the coolant reservoir to wheelhouse bolt to 9 N.m (81 lb in).

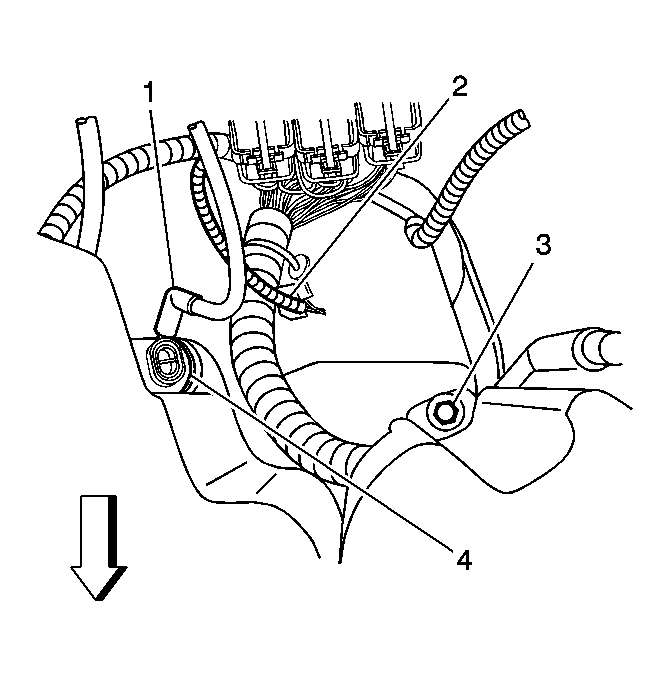

    10. Fig 2: View Of Washer Hose, Wheelhouse Fastener, Washer Pump, & Electrical Connector
    GM1272626Courtesy of GENERAL MOTORS CORP.
  10. Secure the washer hose (1) to the washer pump (4).
  11. Connect the electrical connector (2) to the washer pump (4).
  12. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls - 2.8L (LK5) or to Air Cleaner Assembly Replacement in Engine Controls - 3.5L (L52).
  13. Fill the washer solvent container with clean washer solvent.
  14. Test the washer system and inspect for leaks.
  15. Close the hood.
