Fuel Fill Pipe

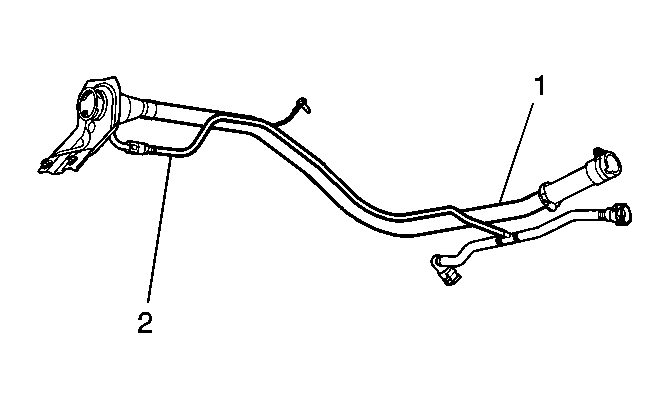

Fig 1: Fuel Fill Pipe

GM1556901

Courtesy of GENERAL MOTORS CORP.

The fuel fill pipe has a built-in restrictor in order to prevent refueling with leaded fuel.
