Antilock Brake System Schematics

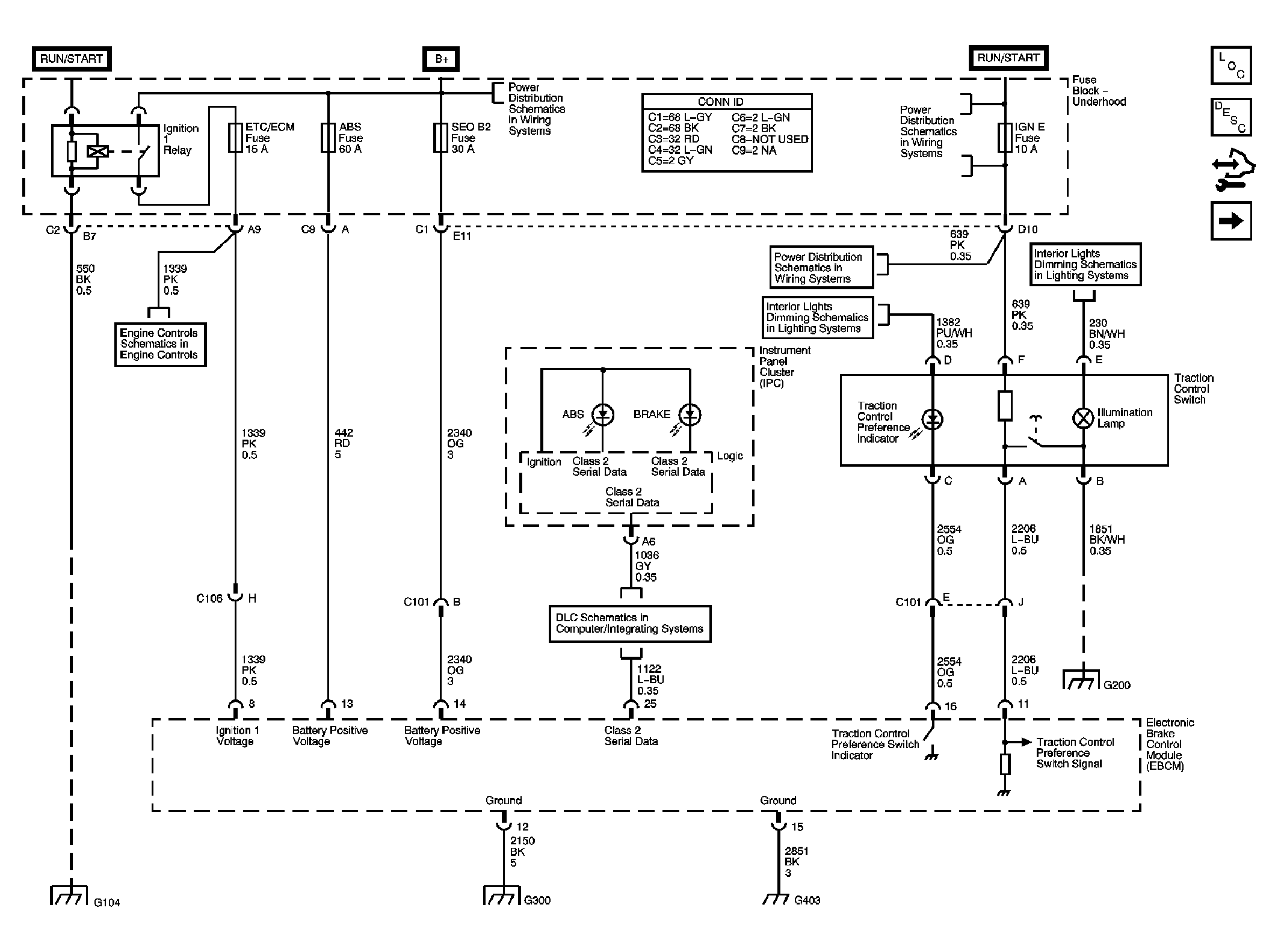

Fig 1: Power, Ground, Serial Data, Indicator, and Traction Controls
GM1566899Courtesy of GENERAL MOTORS CORP.

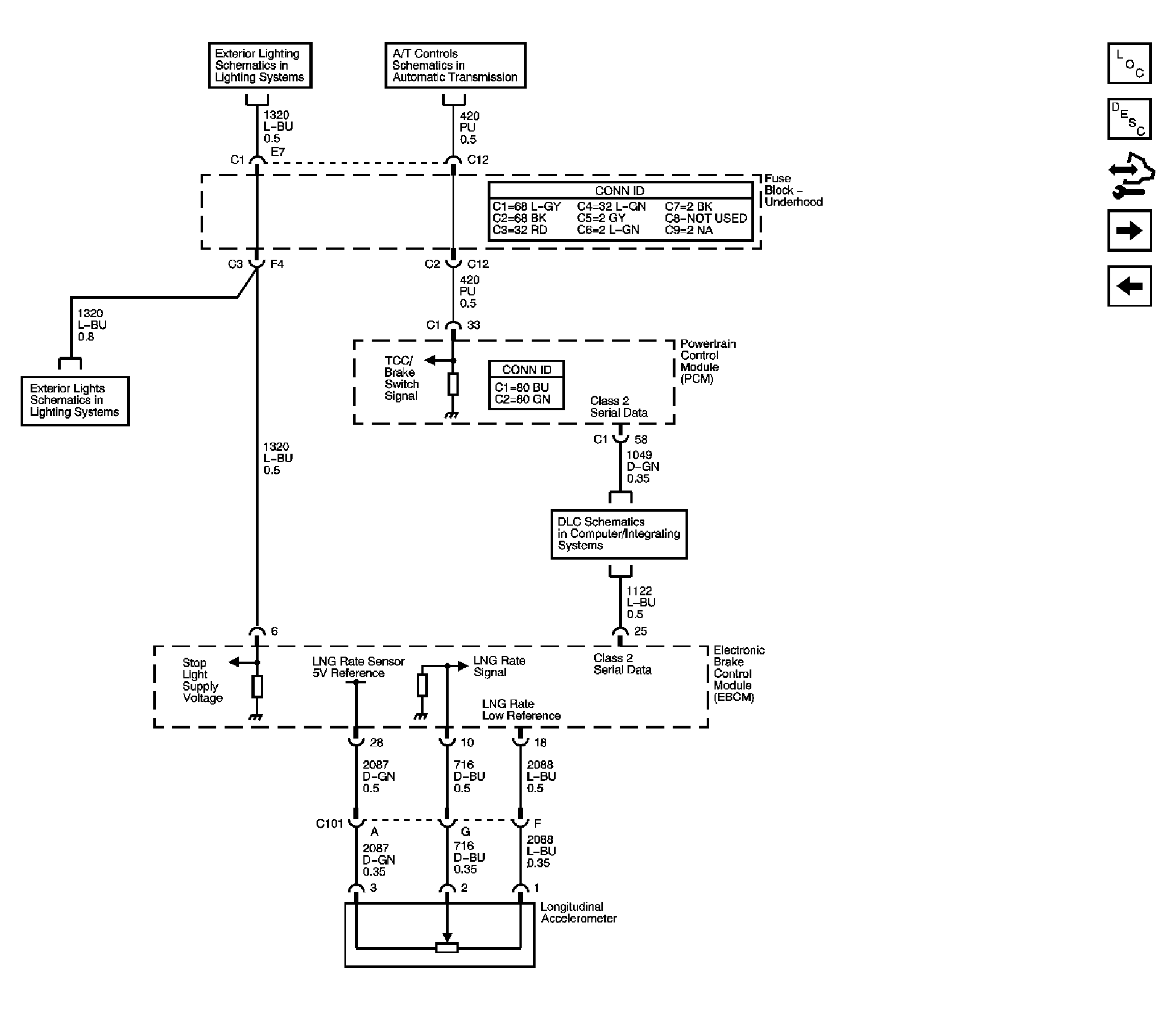

Fig 2: Stop Lamp Switch and Longitudinal Accelerometer Signals
GM1566901Courtesy of GENERAL MOTORS CORP.

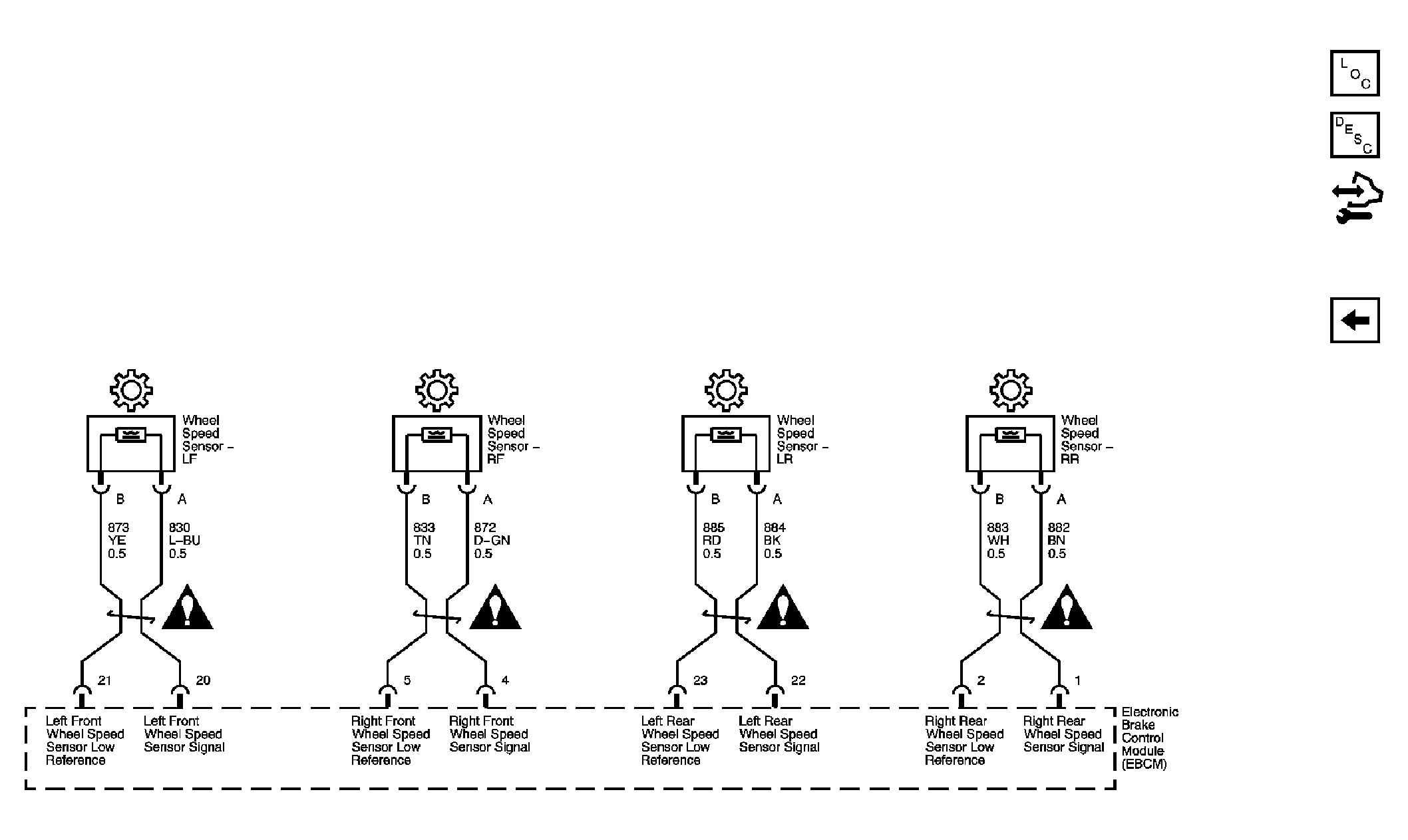

Fig 3: Wheel Speed Sensor Signals
GM1566905Courtesy of GENERAL MOTORS CORP.
