Door Lock/Indicator Schematics

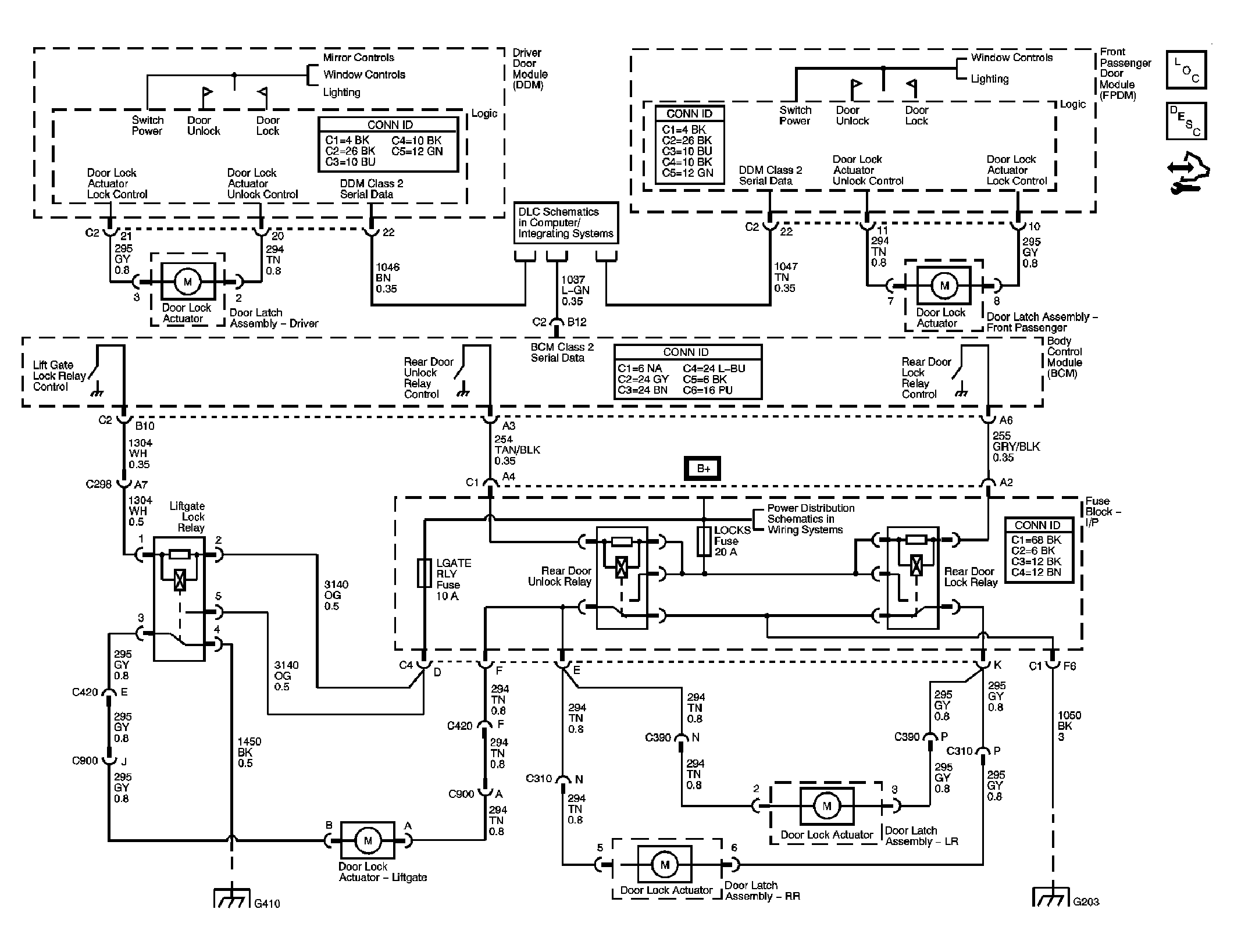

Fig 1: Door Lock/Indicator Schematic

GM1566981

Courtesy of GENERAL MOTORS CORP.
