ABS Schematics

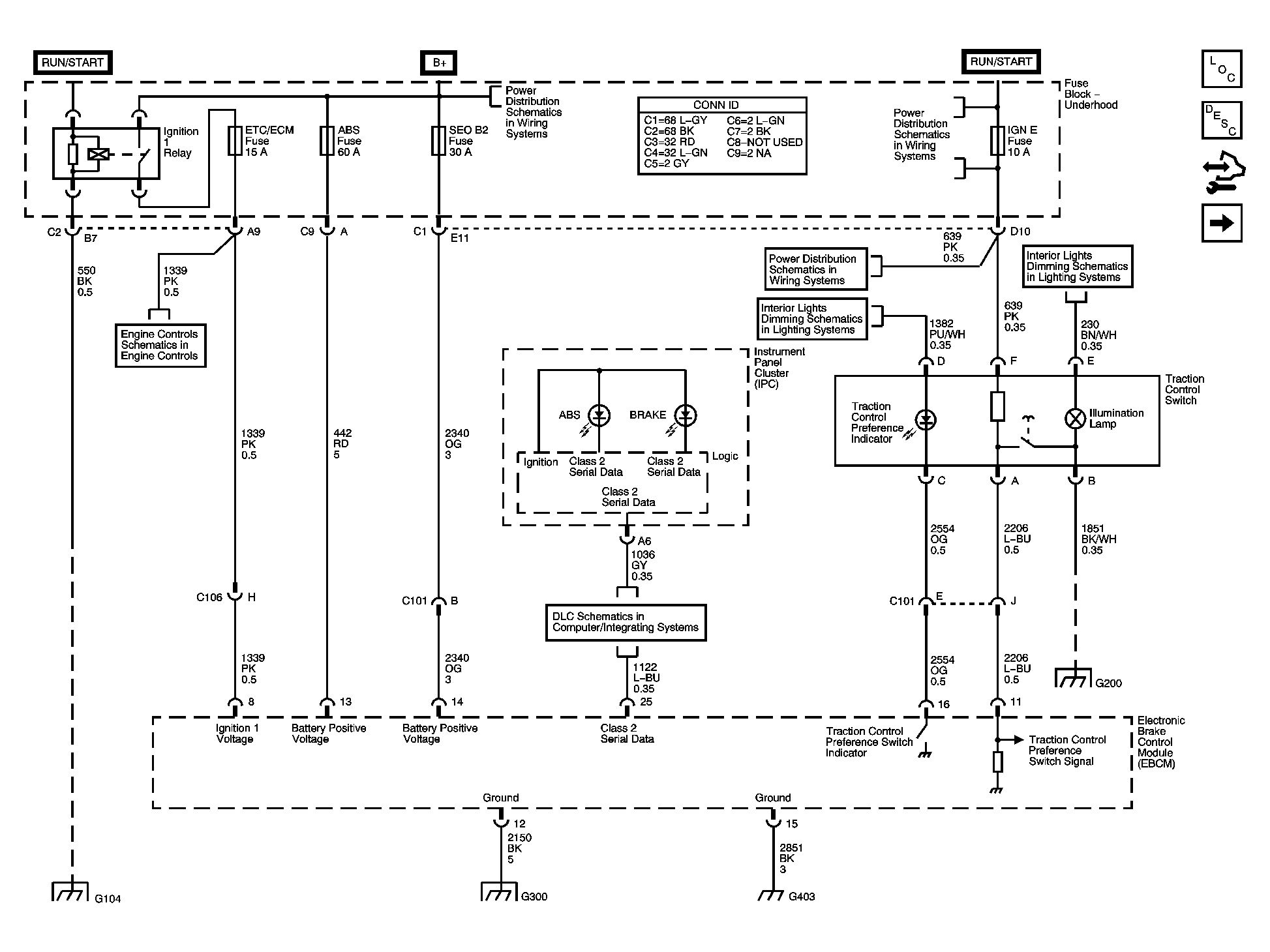

Fig 1: Power, Ground, Serial Data, Indicator Lamps, and Traction Control Switch
GM1506985Courtesy of GENERAL MOTORS CORP.

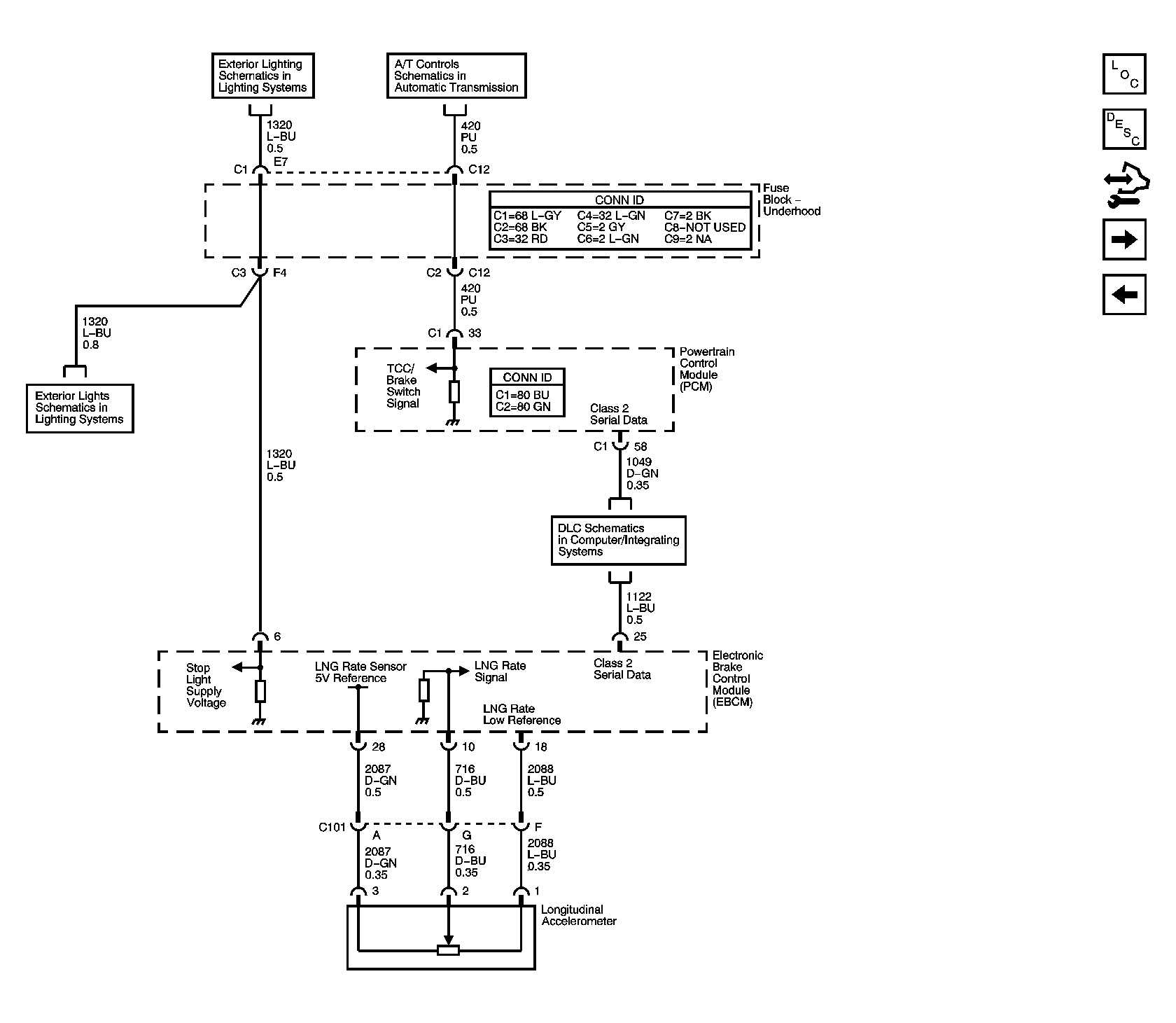

Fig 2: Stop Lamp Switch and Longitudinal Accelerometer Inputs
GM1506988Courtesy of GENERAL MOTORS CORP.

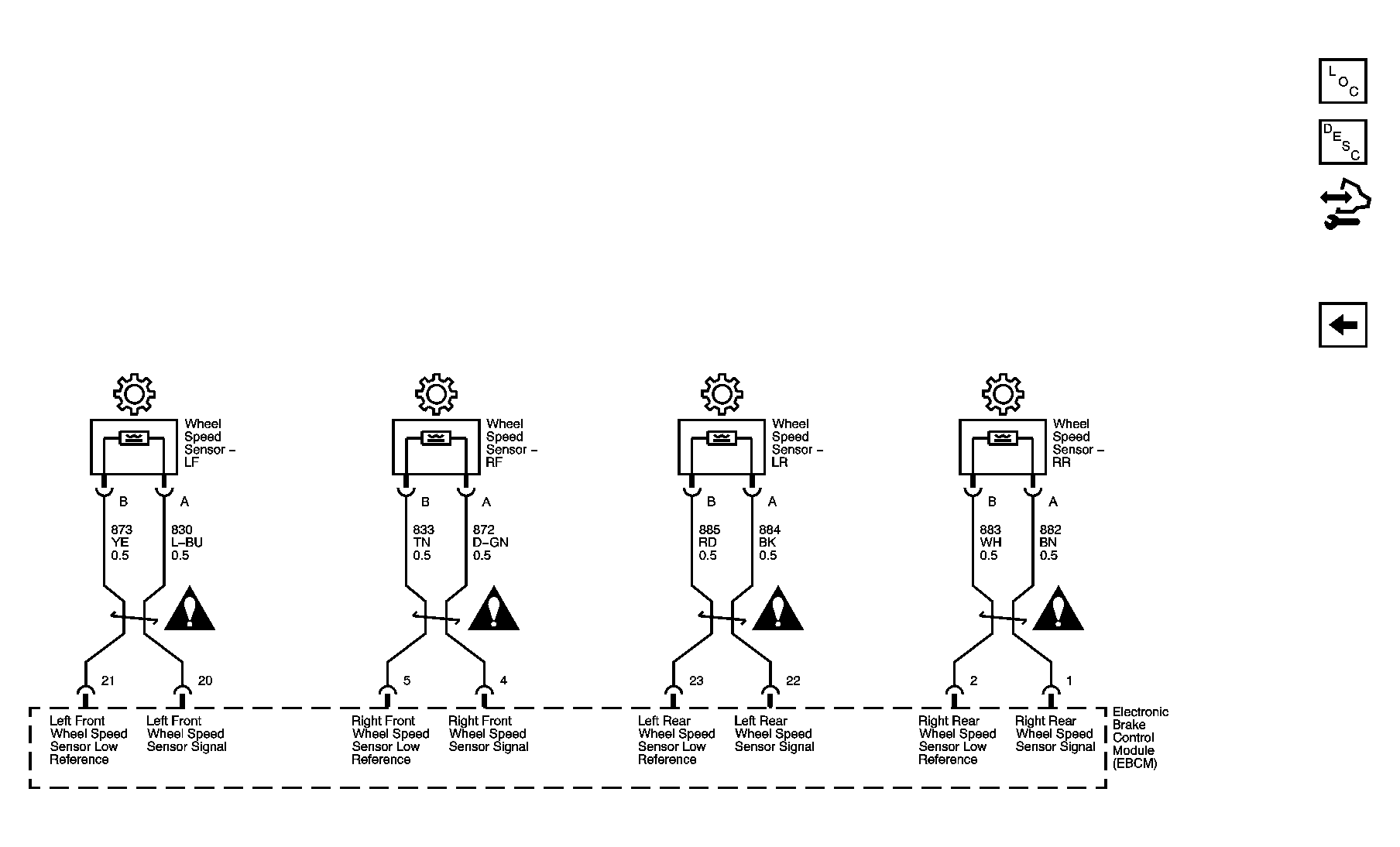

Fig 3: Wheel Speed Sensor Inputs
GM1506990Courtesy of GENERAL MOTORS CORP.
