H2 4D Utility Pickup
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Door System
>>
Schematic And Routing Diagrams
>>
Door Lock/Indicator Schematics
Door Lock/Indicator Schematics

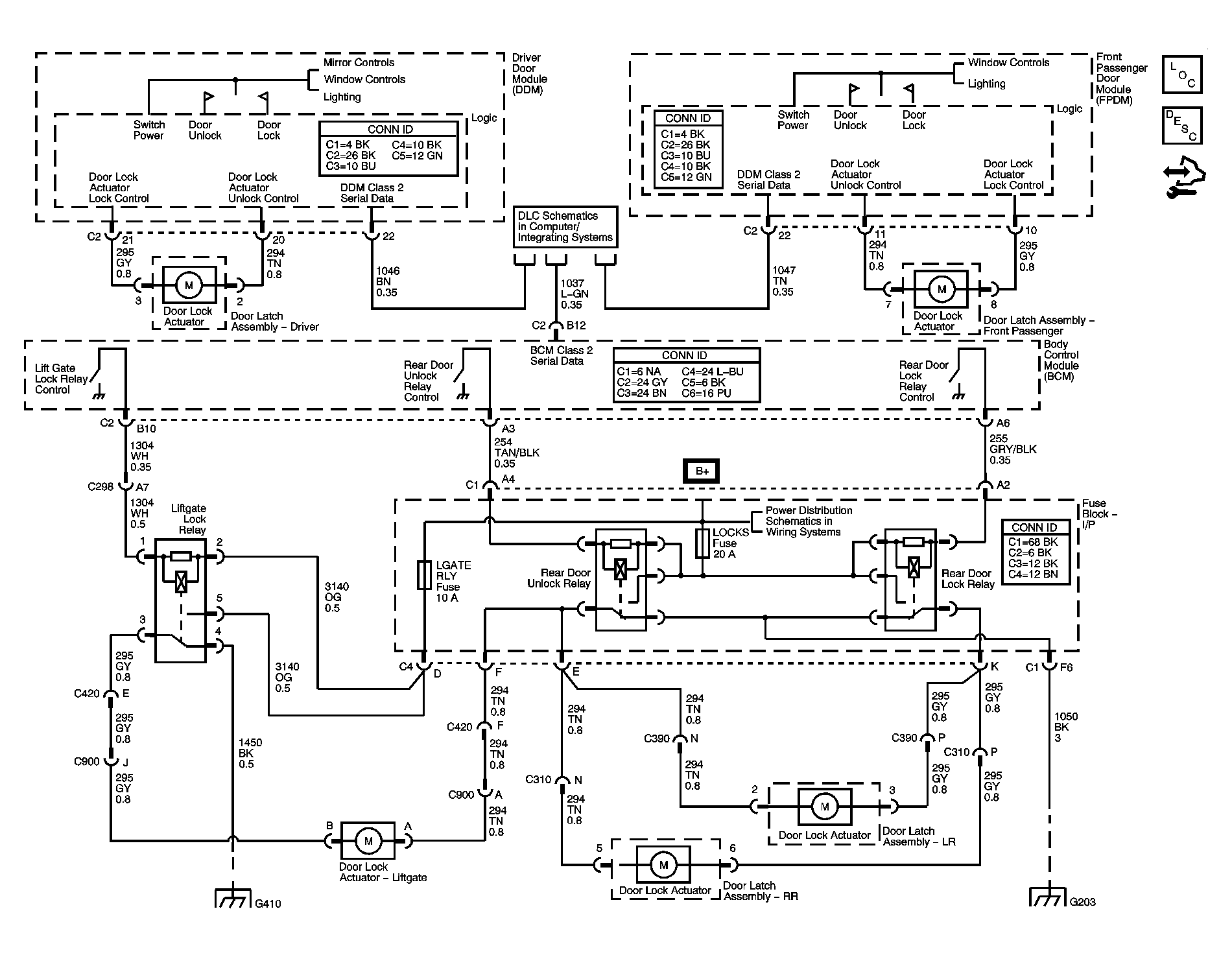

Fig 1: Door Lock/Indicator Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
