DTC P0711: Transmission Temperature Error: Notes

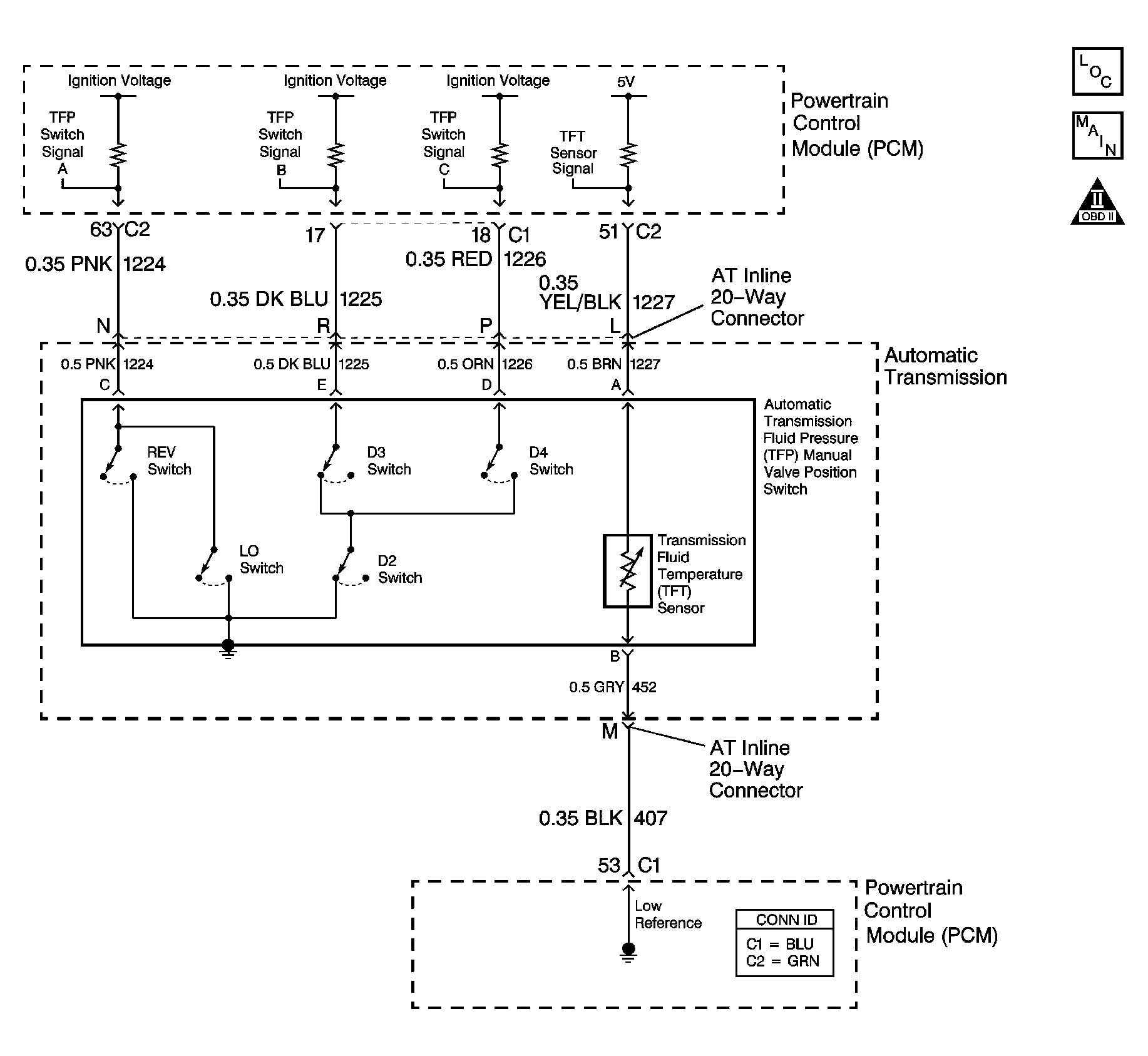

Fig 1: Transmission Fluid Pressure Switch Schematic

GM827724

Courtesy of GENERAL MOTORS CORP.
