Wire Routing

See Fig 1.

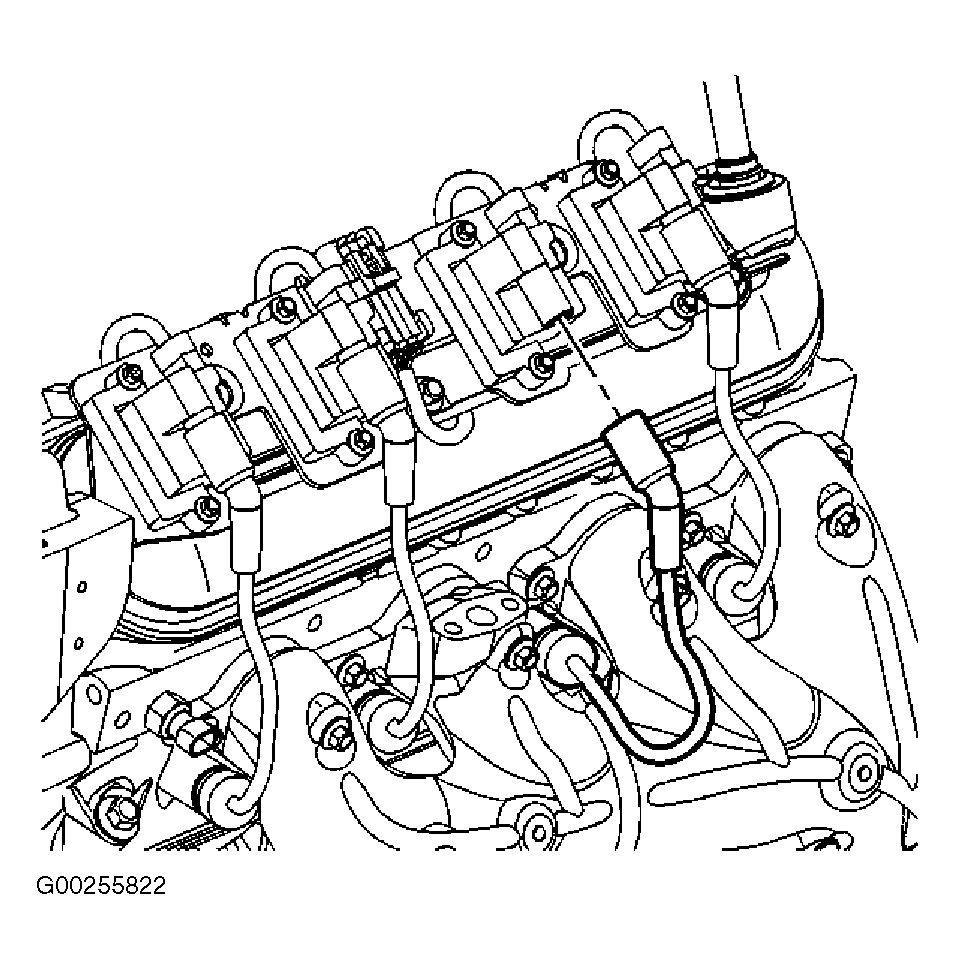

Fig 1: High Tension Wire Routing (6.0L)

G00255822

Courtesy of GENERAL MOTORS CORP.
