Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

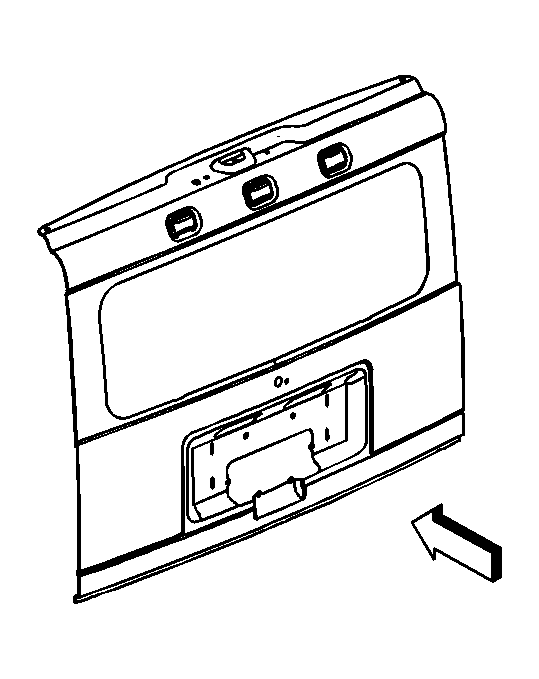

    Fig 1: Identification Lamp Retaining Clip (SUV)
    GM803119Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb to the socket.

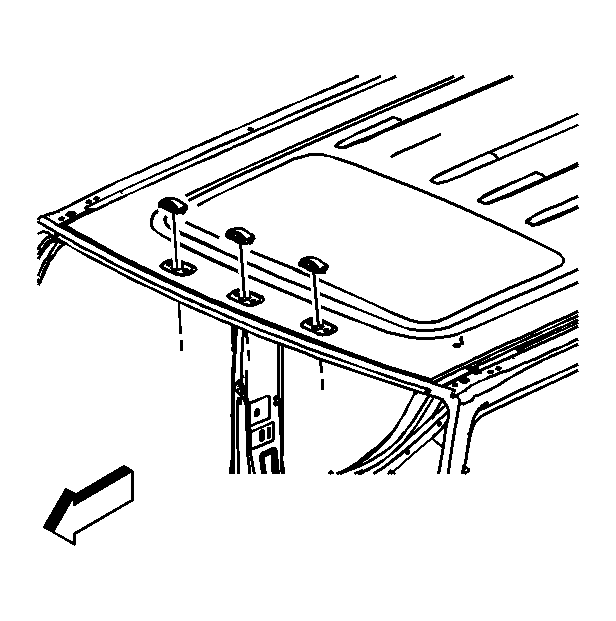

    2. Fig 2: Identification Lamp Assembly (SUV)
    GM803120Courtesy of GENERAL MOTORS CORP.
  2. Turn the bulb socket clockwise to lock the socket into the lamp assembly.
  3. Install the lamp assembly to the vehicle.
  4. Install the electrical harness at the connector.
  5. Tilt the lamp forward to engage the hook.
  6. Apply light pressure downward on the lamp to engage the retaining clip.
