Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions and Notices.
  1. Insert the run channel (1) into the door through the front access hole.
  2. Slide the run channel up along the window, making sure the upper portion is under the door frame applique.

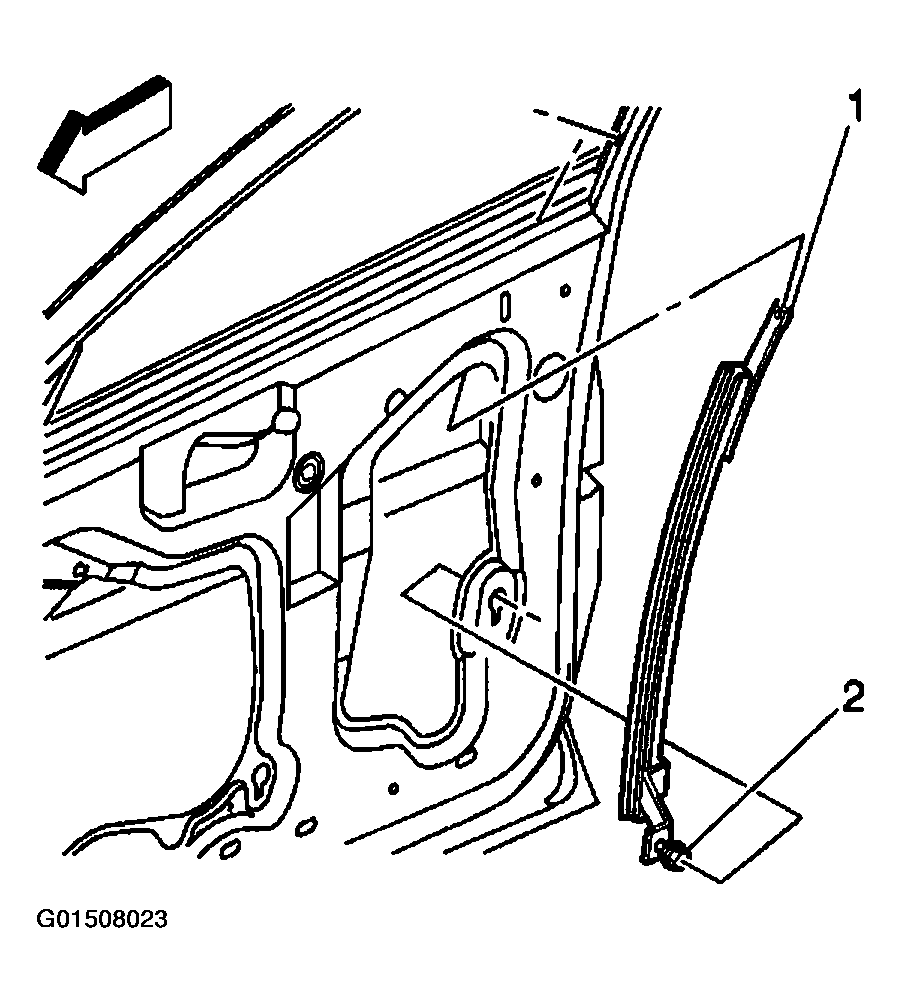

    3. Fig 1: Installing Window Run Channel
    G01508023Courtesy of GENERAL MOTORS CORP.
  3. Install the lower fastener. Tighten:  Tighten the fastener to 9 N.m (80 lb in).
  4. Lower the window to the full down position.
  5. Pull out enough of the lower rear edge of the window seal to install the upper fastener in the run channel and door applique.

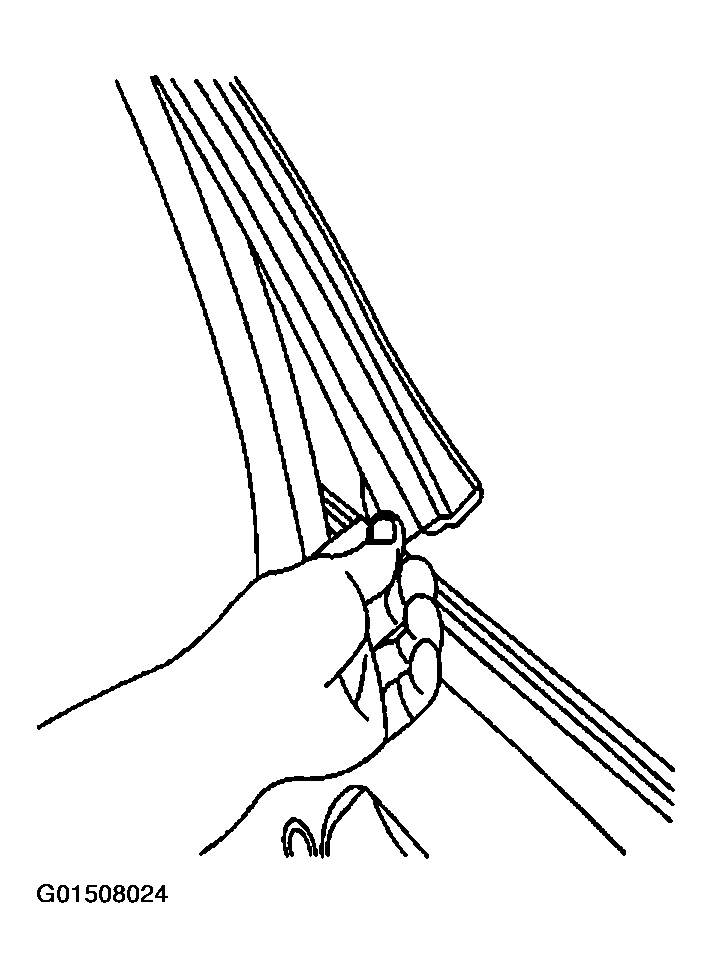

    6. Fig 2: Pulling Out Lower Rear Portion Of Upper Window Seal To Install Door Frame Applique Fastener
    G01508024Courtesy of GENERAL MOTORS CORP.
  6. Install the fastener.
  7. Reinstall the window seal to the door frame.
  8. Install the window inner belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER  .
  9. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  10. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
