Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inside air temperature sensor to the aspirator hose.
  2. Connect the electrical connector.
  3. Install the sensor into the instrument panel.
  4. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT in Instrument Panel, Gauges and Console.
  5. Install the cluster trim plate. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.

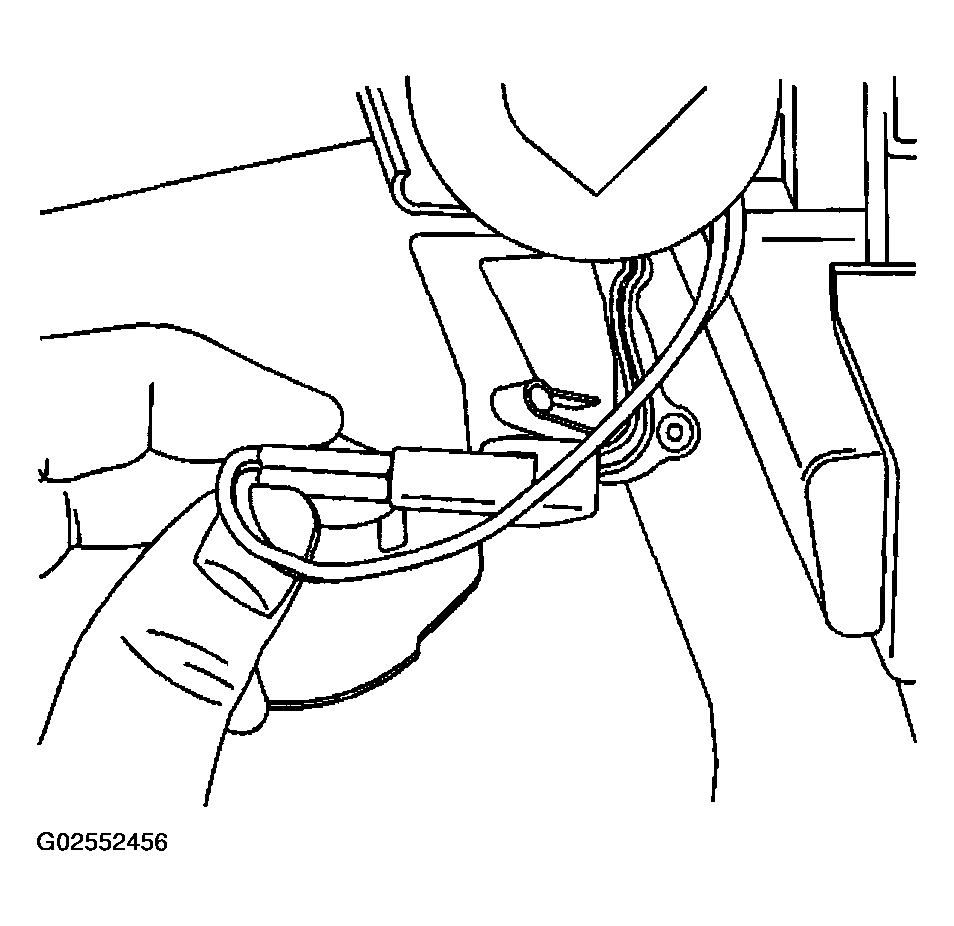

    6. Fig 1: Locating Inside Air Temperature Sensor Electrical Connector
    G02552456Courtesy of GENERAL MOTORS CORP.

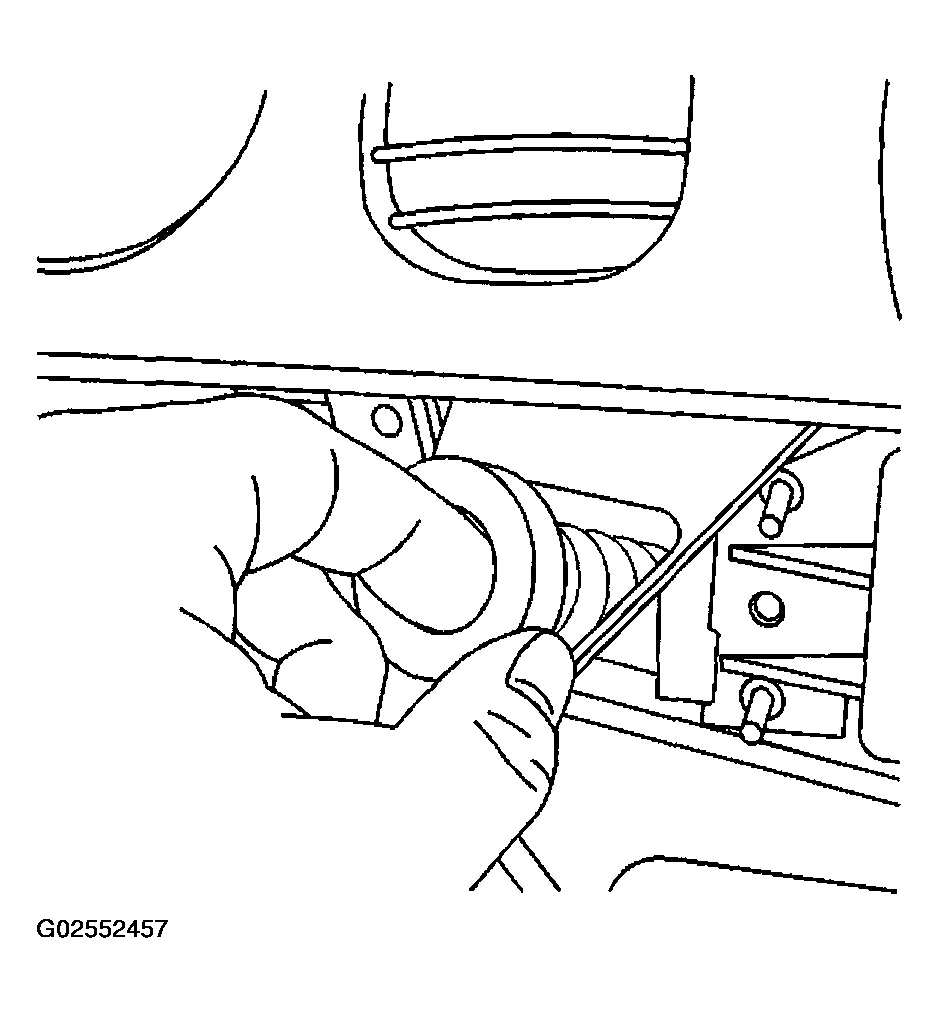

    Fig 2: Installing Inside Air Temperature Sensor
    G02552457Courtesy of GENERAL MOTORS CORP.
