Installation Procedure

  1. Install the upper cushions and the shims to the vehicle.
  2. Raise the hoist to allow the body mount bolts to be installed.
  3. Connect or install any wiring harness or component that was removed to allow for the lowering of the frame.

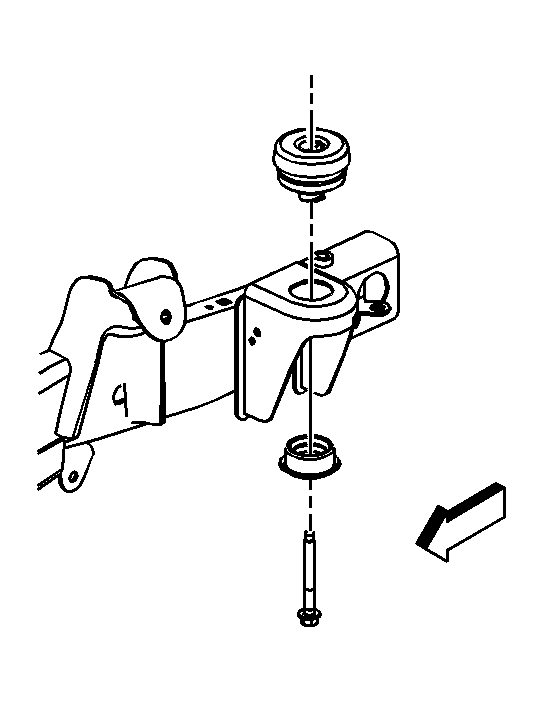

    4. Fig 1: Body Mount Bolt, Retainers & Lower Cushion (At The Rear Most Mount)
    GM800064Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the body mount bolt, retainer, and lower cushion at the rear most mount.

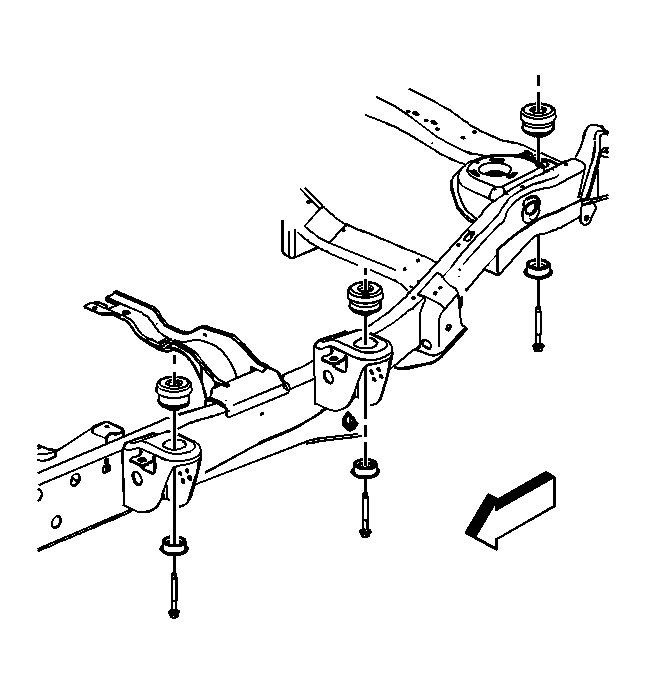

    5. Fig 2: Body Mount Bolt, Retainers & Lower Cushions (At The Three Other Mount Locations)
    GM800060Courtesy of GENERAL MOTORS CORP.
  5. Install the body mount bolt, retainers, and lower cushions at the three other mount locations.

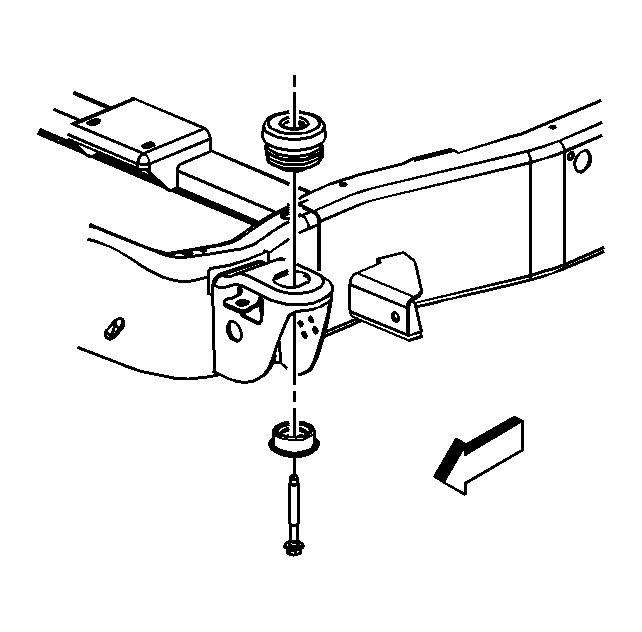

    6. Fig 3: Body Mount Bolt, Retainers & Lower Cushions (At The Front Mount Location)
    GM800067Courtesy of GENERAL MOTORS CORP.
  6. Remove the body mount bolt, retainers, and lower cushions at the front mount location.

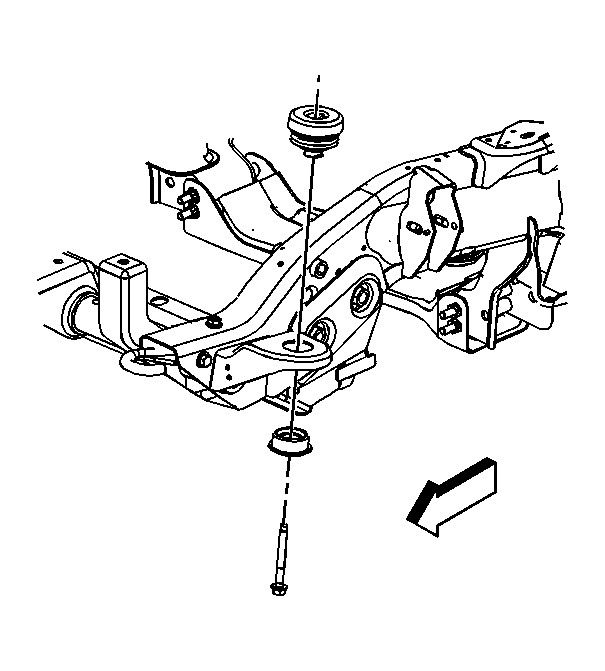

    7. Fig 4: Body Mount Bolt, Retainer & Lower Cushion (At The Radiator Support)
    GM800063Courtesy of GENERAL MOTORS CORP.
  7. Install the body mount bolt, retainer, and lower cushion at the radiator support.

    Tighten:  Tighten the bolts to 85 N.m (63 lb ft).

  8. Remove the jack stands.
  9. Lower the vehicle.
