Multi View Camera System (MVCS) Component Location Index

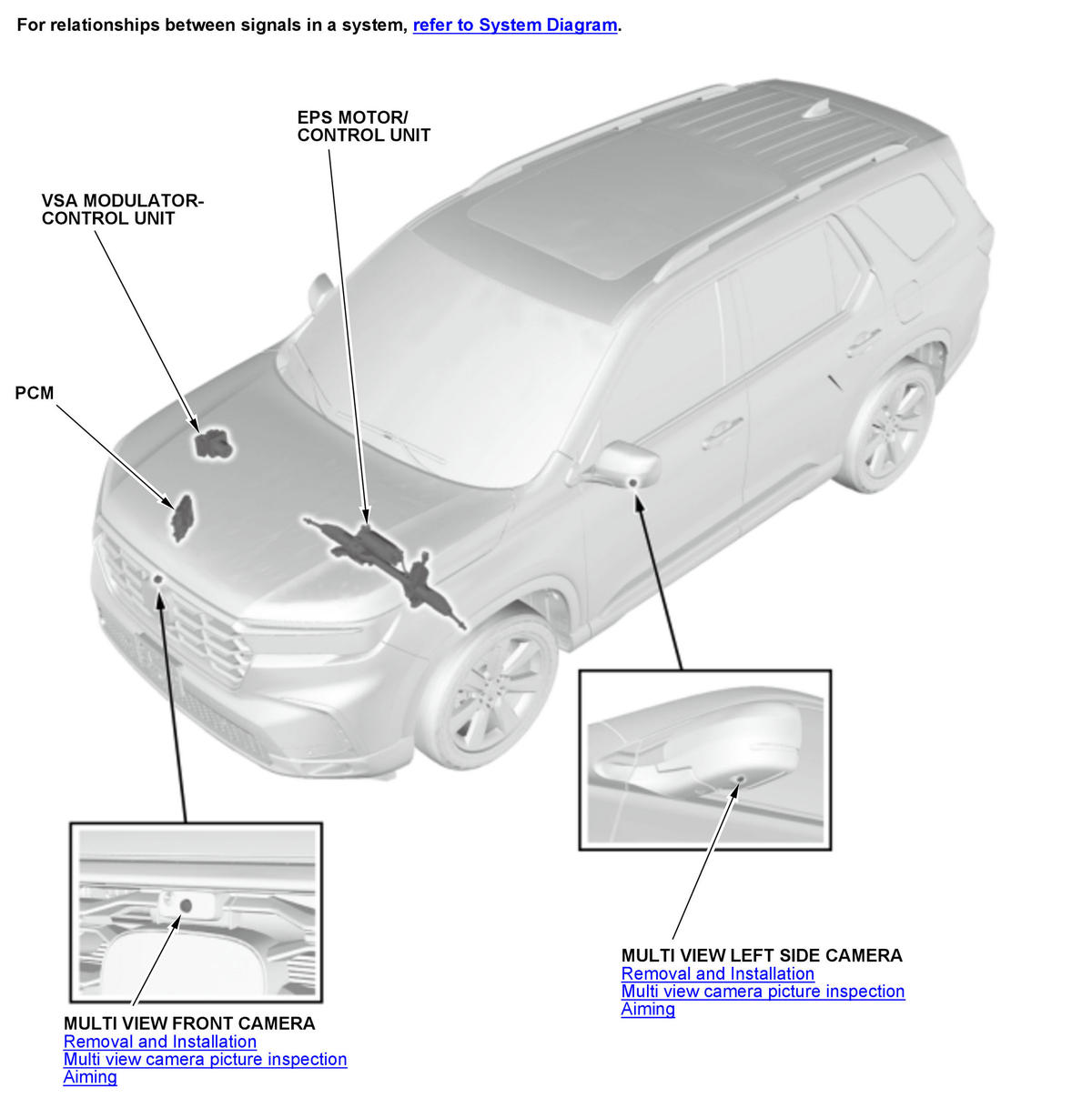

GHH582550

Courtesy of HONDA, U.S.A., INC.

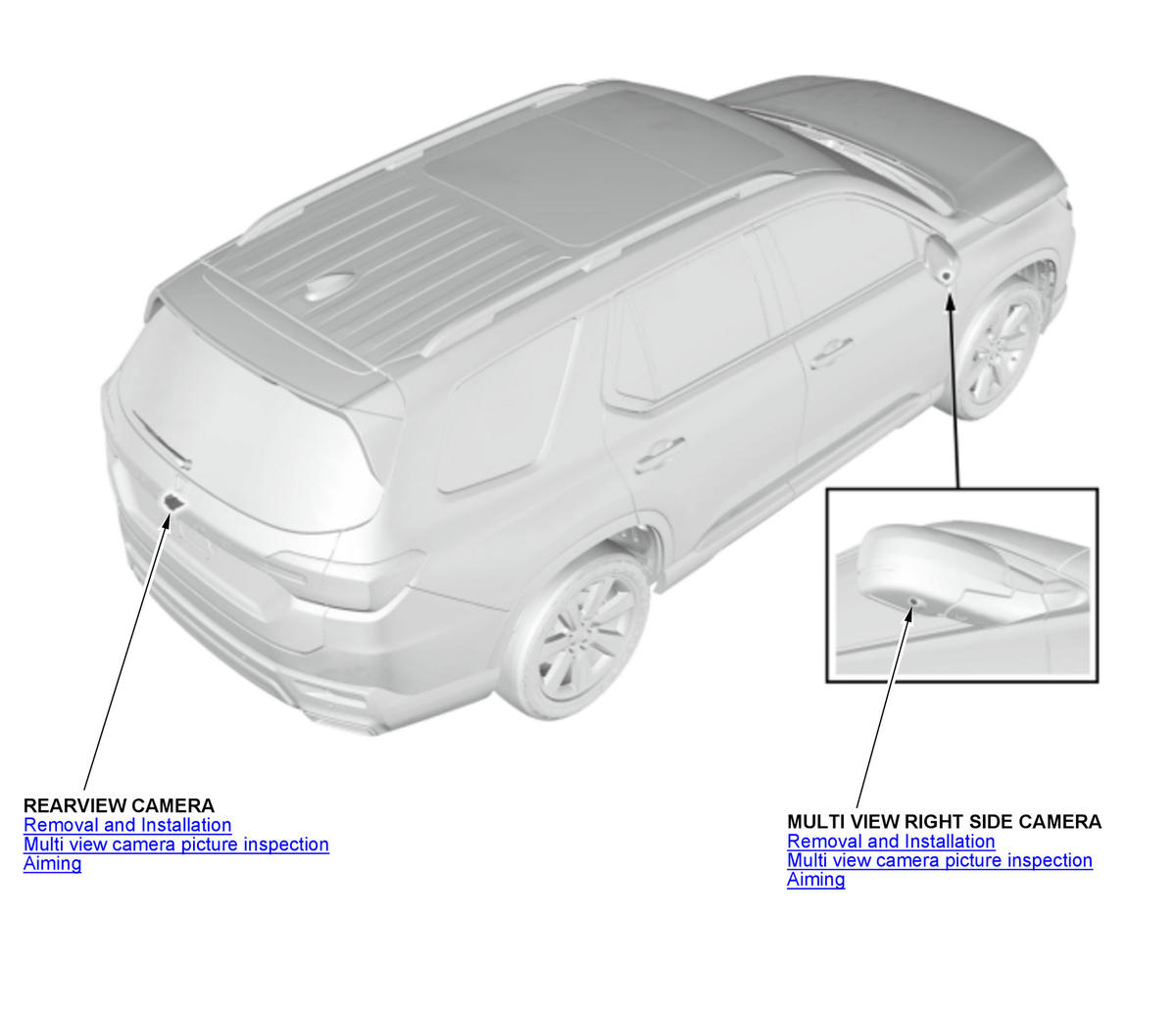

GHH582551

Courtesy of HONDA, U.S.A., INC.

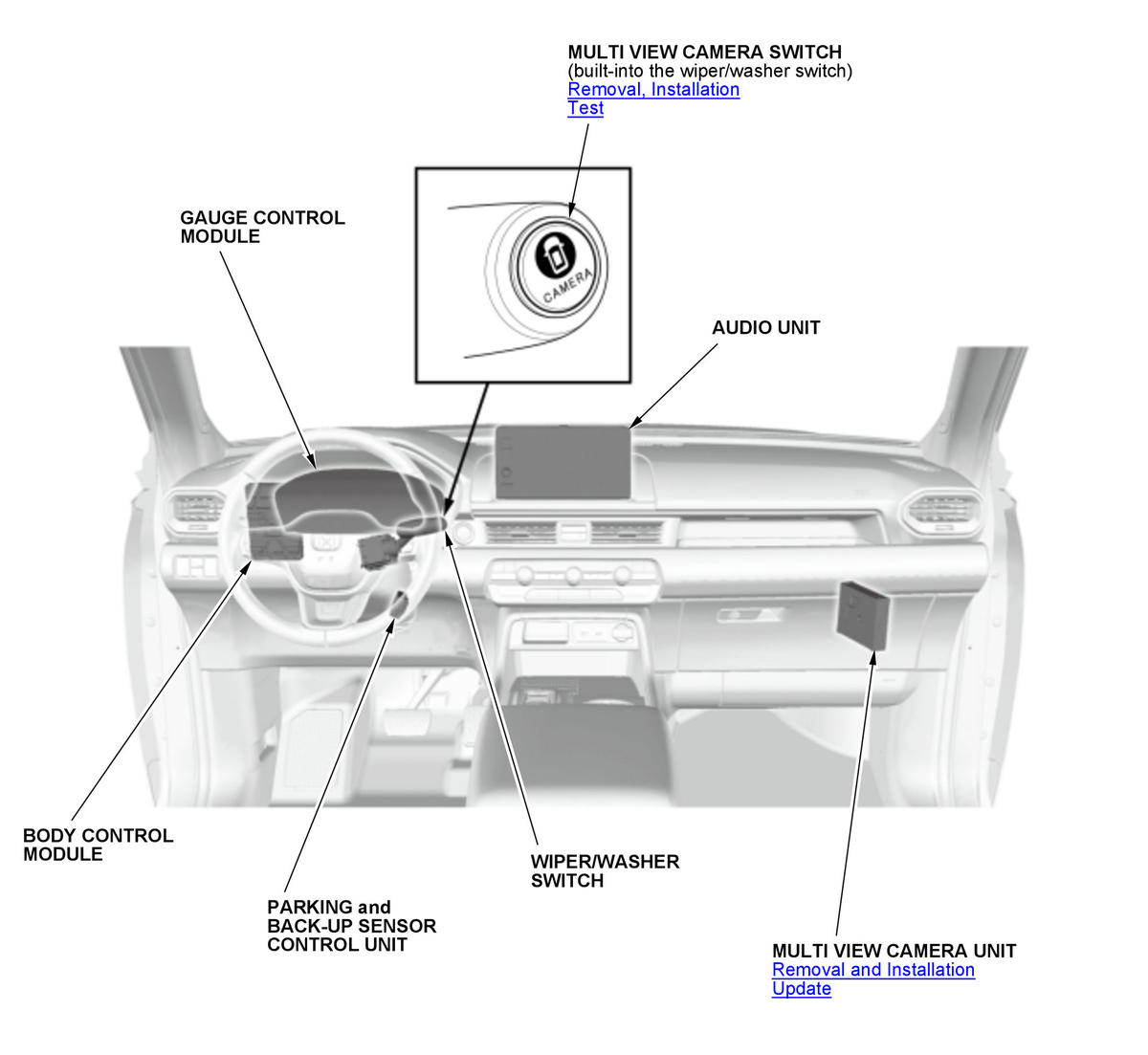

GHH582552

Courtesy of HONDA, U.S.A., INC.
